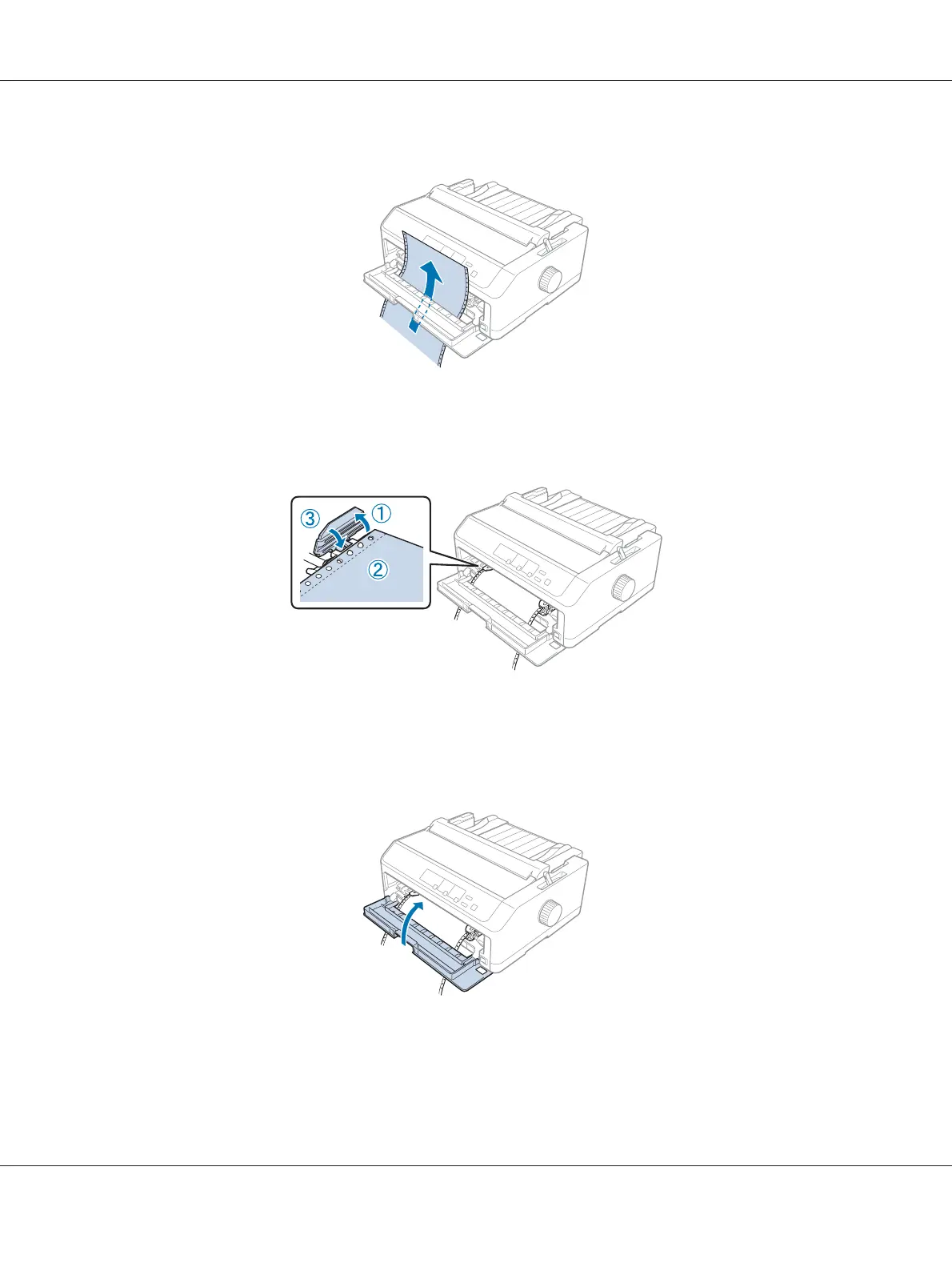

7. Insert the paper into the bottom slot as shown in the illustration below.
8. Make sure your paper has a clean, straight edge. Then open both sprocket covers and fit the first
four holes of the paper, with printable side up, over the tractor pins. Then close the sprocket
covers.
9. Slide the right sprocket to remove any slack in the paper; then lock it in place by pushing the
sprocket lock down.
10. Close the front cover with the continuous paper positioned as shown below.
11. Make sure the sheet guide is lying flat on the printer and slide the edge guides to the middle of the
sheet guide.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Paper Handling 29
