Epson DS-770 II User Manual

A
Security slot Inserts a security lock for theft prevention.
B
USB port Connects a USB cable.
C
DC inlet Connects the AC adapter.

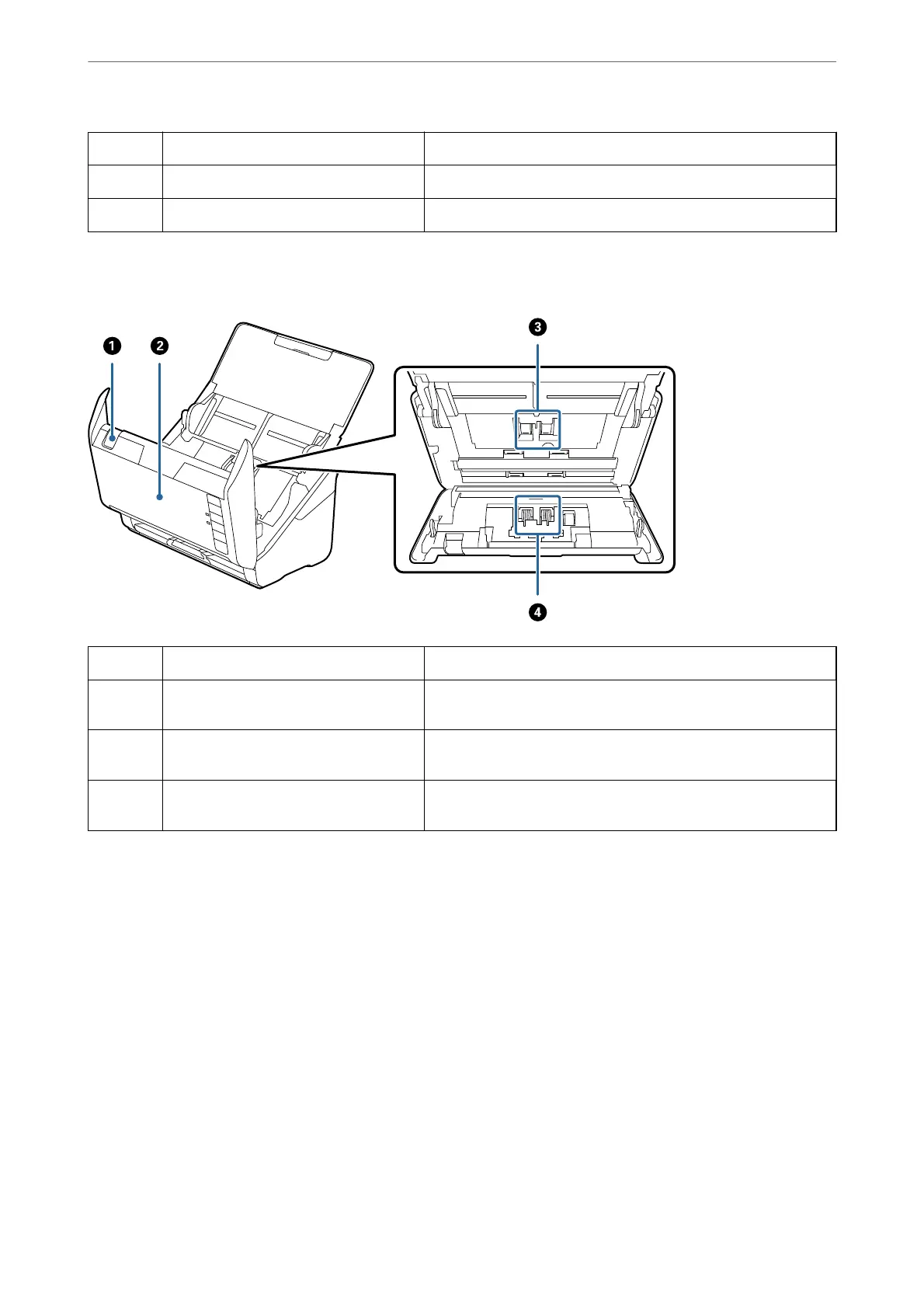

Inside
A
Cover open lever Pull the cover open lever and open the scanner cover.
B
Scanner cover Pull the cover open lever and open the scanner cover when
cleaning inside of the scanner and removing jammed paper.
C
Pickup roller Feeds originals. This needs to be replaced when the number of
scans exceeds the service number of papers.
D
Separation roller Feeds originals separately one by one. This needs to be replaced
when the number of scans exceeds the service number of papers.
Related Information
& “Cleaning Inside the Scanner” on page 148
& “Replacing the Roller Assembly Kit” on page 154
Scanner Basics > Part Names and Functions
19

Epson DS-770 II Specifications

General

Optical Resolution	600 dpi
ADF Capacity	100 sheets
Scan Speed	45 ppm / 90 ipm
Connectivity	USB 3.0
Duplex Scanning	Yes
Ultrasonic Double Feed Detection	Yes
Scanning Method	Contact Image Sensor (CIS)
Scan Speed (Color, A4, 300 dpi)	45 ppm
Scan Speed (Black & White, A4, 300 dpi)	45 ppm
Document Feeder Capacity	100 sheets
Interface	USB 3.0
Supported Operating Systems	Windows, Mac OS
Scanner Type	Sheetfed
Max Document Size	215.9 mm x 6096 mm
Grayscale Depth	10-bit
Maximum Resolution	1200 dpi
Maximum Document Size	215.9 mm x 6096 mm
Minimum Document Size	50.8 mm x 50.8 mm
Color Depth	Input: 30 Bits Colour / 10 Bits Monochrome , Output: 24 Bits Colour / 8 Bits Monochrome
