Item Command
A/V Mute On/Off
On MUTE ON
Off MUTE OFF
Add a Carriage Return (CR) code (0Dh) to the end of each command and
transmit.
For more details, contact your local dealer or the nearest address provided
in the Epson Projector Contact List.
s Epson Projector Contact List

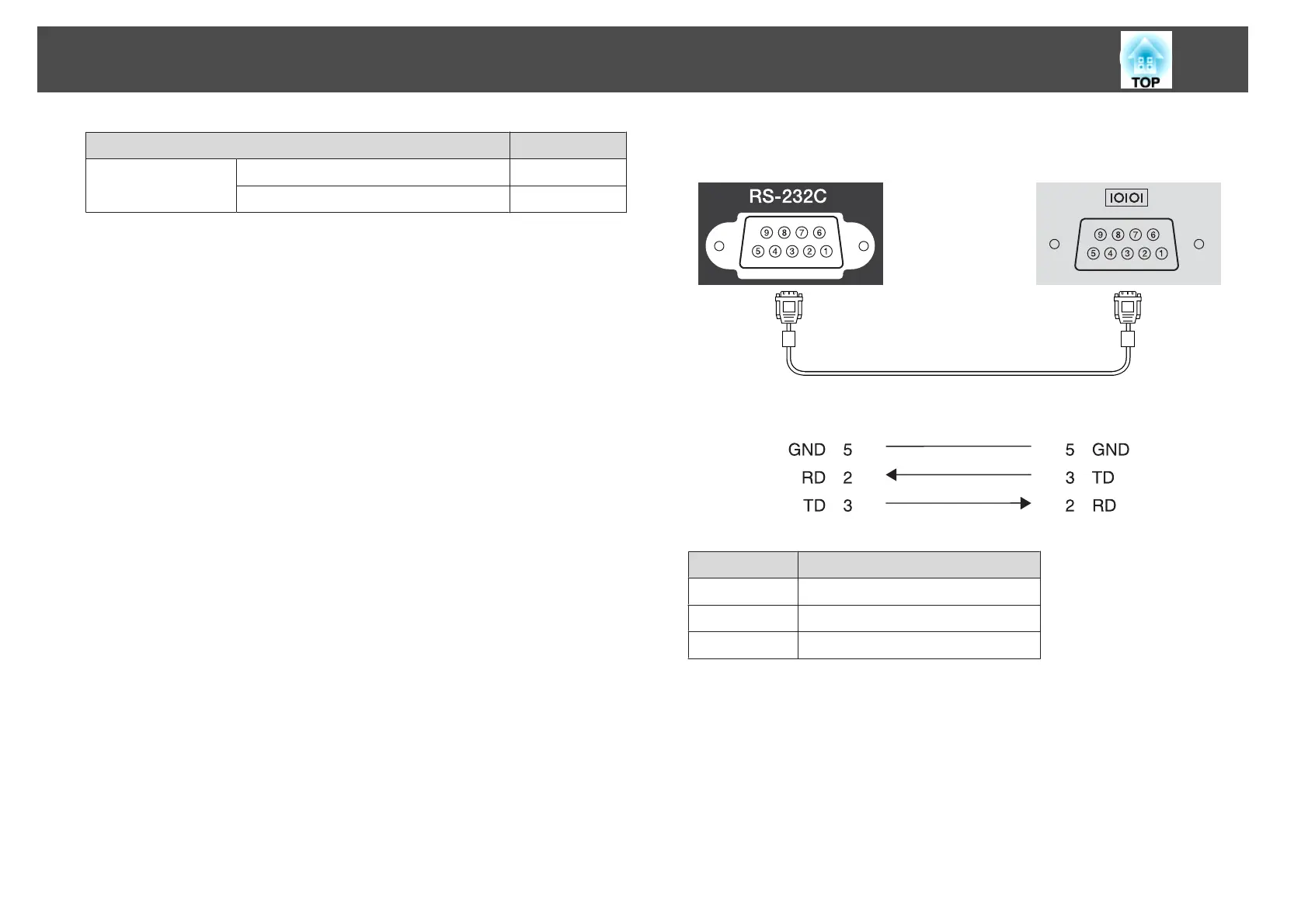

Cable layouts
Serial connection
• Connector shape: D-Sub 9-pin (male)
• Projector input port name: RS-232C
<At the projector> <At the computer>
<
At the projecto
r
>
(PC serial
c
able)
<At the c
omputer>
Signal Name Function
GND
Signal wire ground
TD
Transmit data
RD
Receive data
Communications protocol
• Default baud rate setting: 9600 bps
• Data length: 8 bit
• Parity: None
• Stop-bit: 1 bit
• Flow control: None
Monitoring and Controlling
131
