Unless otherwise specified, the illustrations used in this guide are for
EB-4950WU.

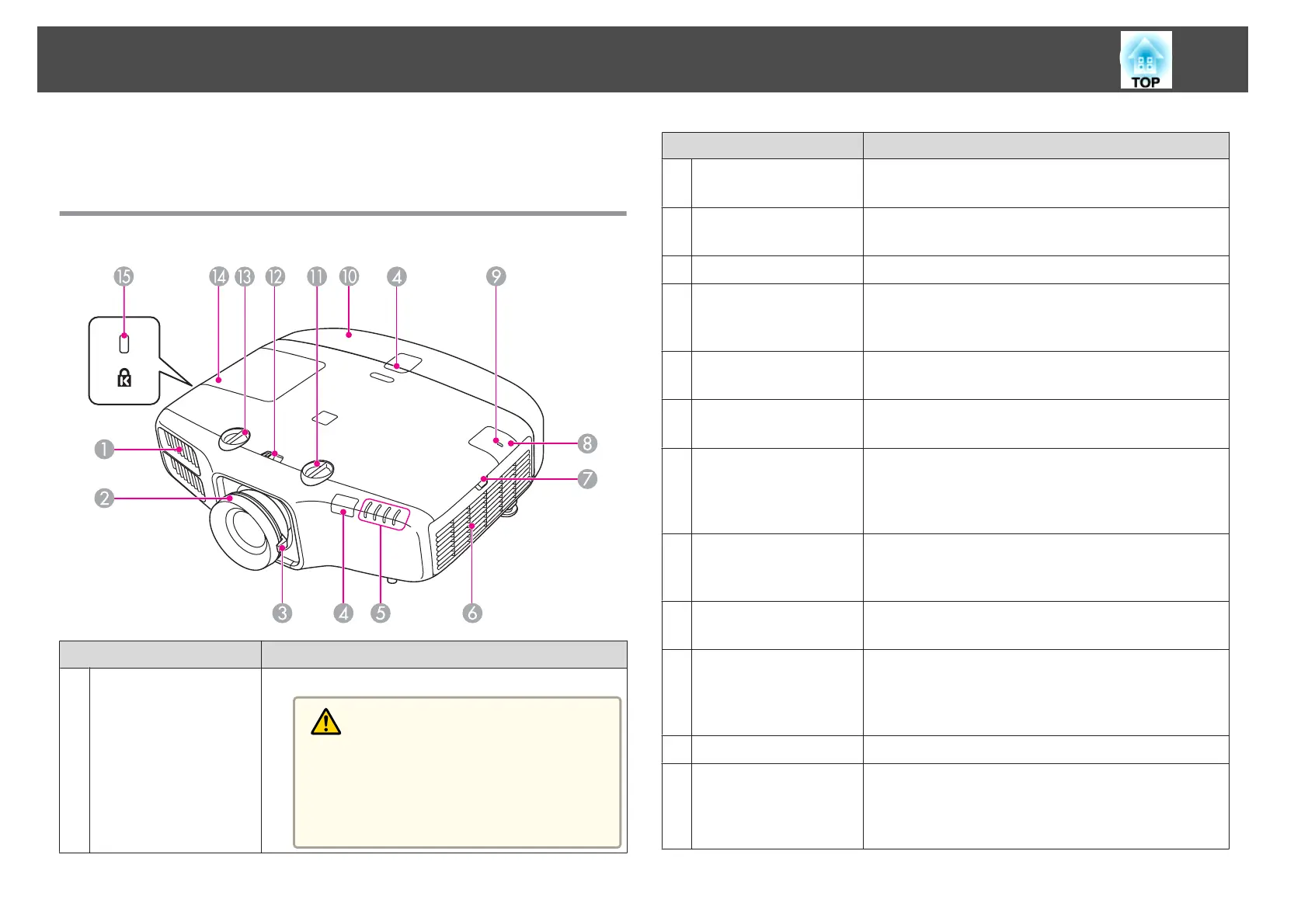

Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
Name Function
B
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.24
C
Zoom ring
Adjusts the image size.
s "Adjusting the Image Size" p.24
D
Remote receiver
Receives signals from the remote control.
E
Status indicators
The color of the indicators and whether they are flashing
or lit indicate the status of the projector.
s "Reading the Indicators" p.95
F
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.112
G
Air filter cover
operation knob
Use this knob to open the air filter cover.
s "Replacing the Air Filter" p.118
H
Wireless LAN unit
cover
When wirelessly connecting the projector to a computer,
remove this cover and install the optional wireless LAN
unit.
s "Installing the Wireless LAN Unit" p.34
I
Wireless LAN indicator
Indicates the access status of the optional wireless LAN
unit.
s "Optional Accessories" p.137
J
Cable cover
Cover for the rear interface cable connection section.
s "Attaching the Cable Cover" p.35
K
Vertical lens shift dial
Turn the dial to move the position of the projected image
up or down.
s "Adjusting the Position of the Projected Image (Lens
Shift)" p.22
L
Lens shift dial lock
Locks or releases the lens shift dials.
M
Horizontal lens shift
dial
Turn the dial to move the position of the projected image
left or right.
s "Adjusting the Position of the Projected Image (Lens
Shift)" p.22
