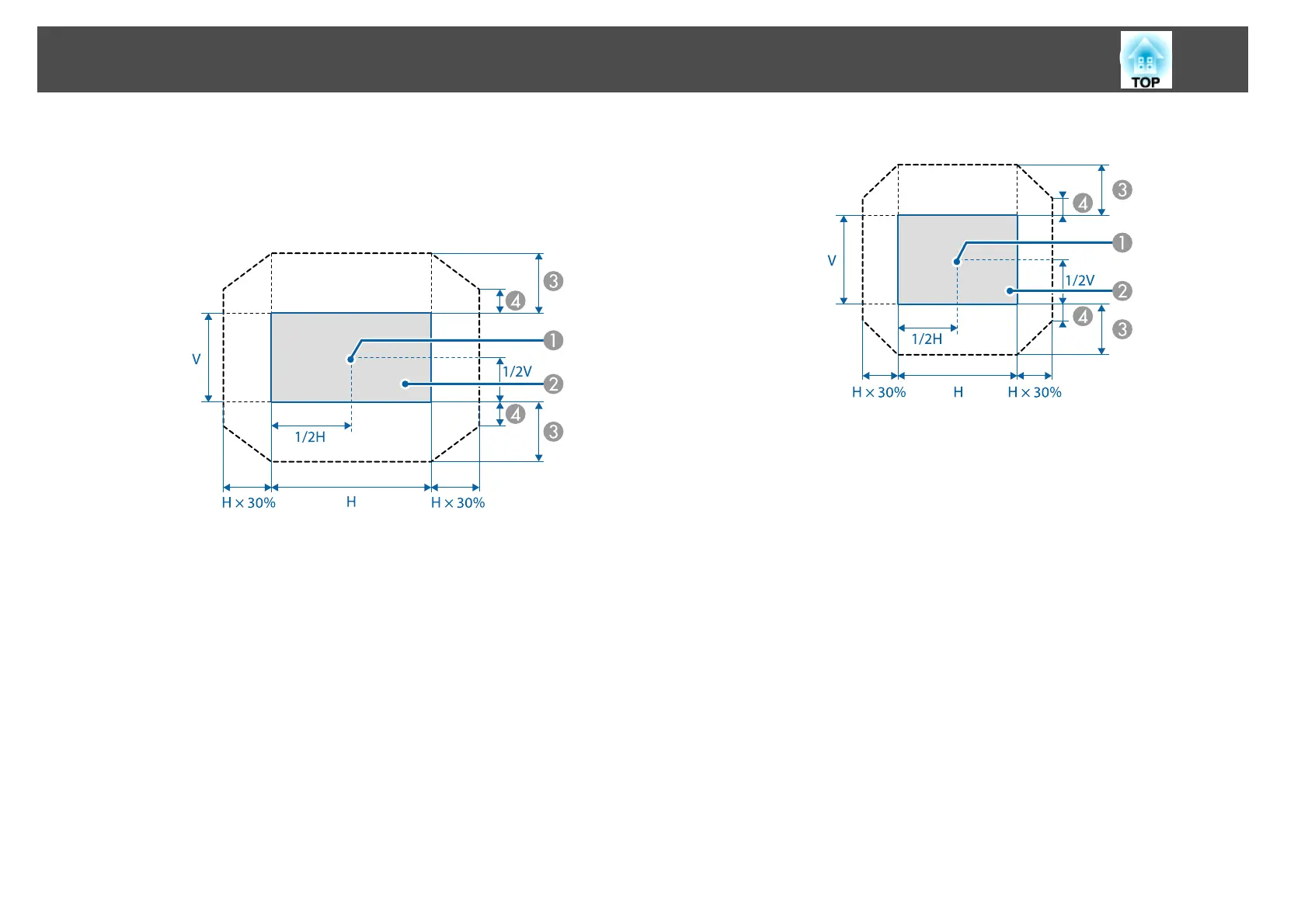

The ranges within which the image can be moved are shown below. The
position of the projected image cannot be moved to both the horizontal and
vertical maximum values.
EB-G7905U/EB-G7900U/EB-G7500U/EB-G7400U/EB-G7200W/EB-
G7000W
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 67%
D
When the horizontal direction is at the maximum value: V x 19%
EB-G7805/EB-G7800/EB-G7100
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 57%
D
When the horizontal direction is at the maximum value: V x 16%
Installing the Projector
34
