When using the ELPLX01 ultra short throw zoom lens
EB-G7905U/EB-G7900U/EB-G7500U/EB-G7400U/EB-G7200W/EB-
G7000W
A

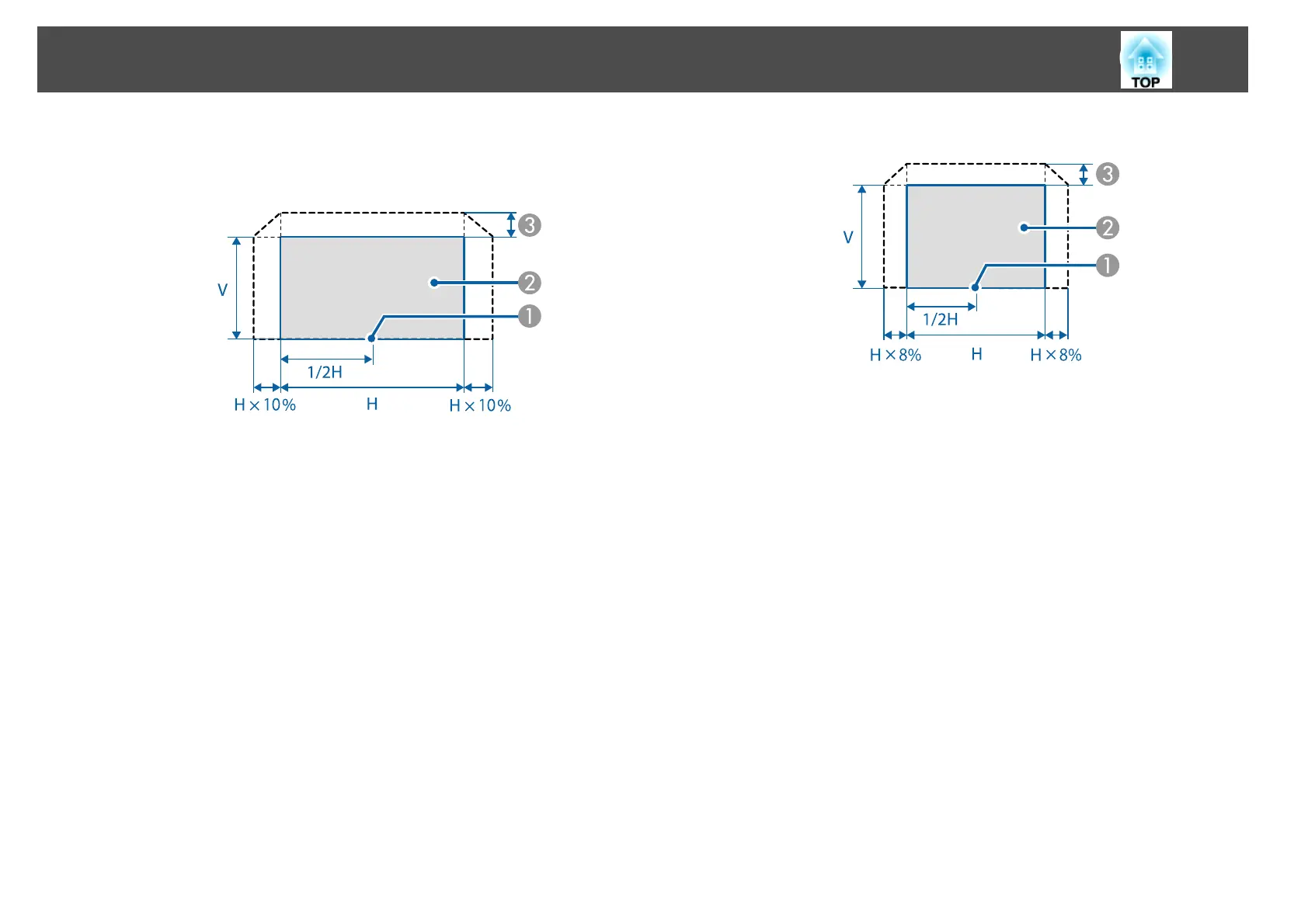

Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 17%
* When the horizontal direction is at the maximum value: The image
cannot be moved upward.
EB-G7805/EB-G7800/EB-G7100
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 7%
* When the horizontal direction is at the maximum value: The image
cannot be moved upward.
Installing the Projector
35
