Epson EB-X12 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 113 Revision C

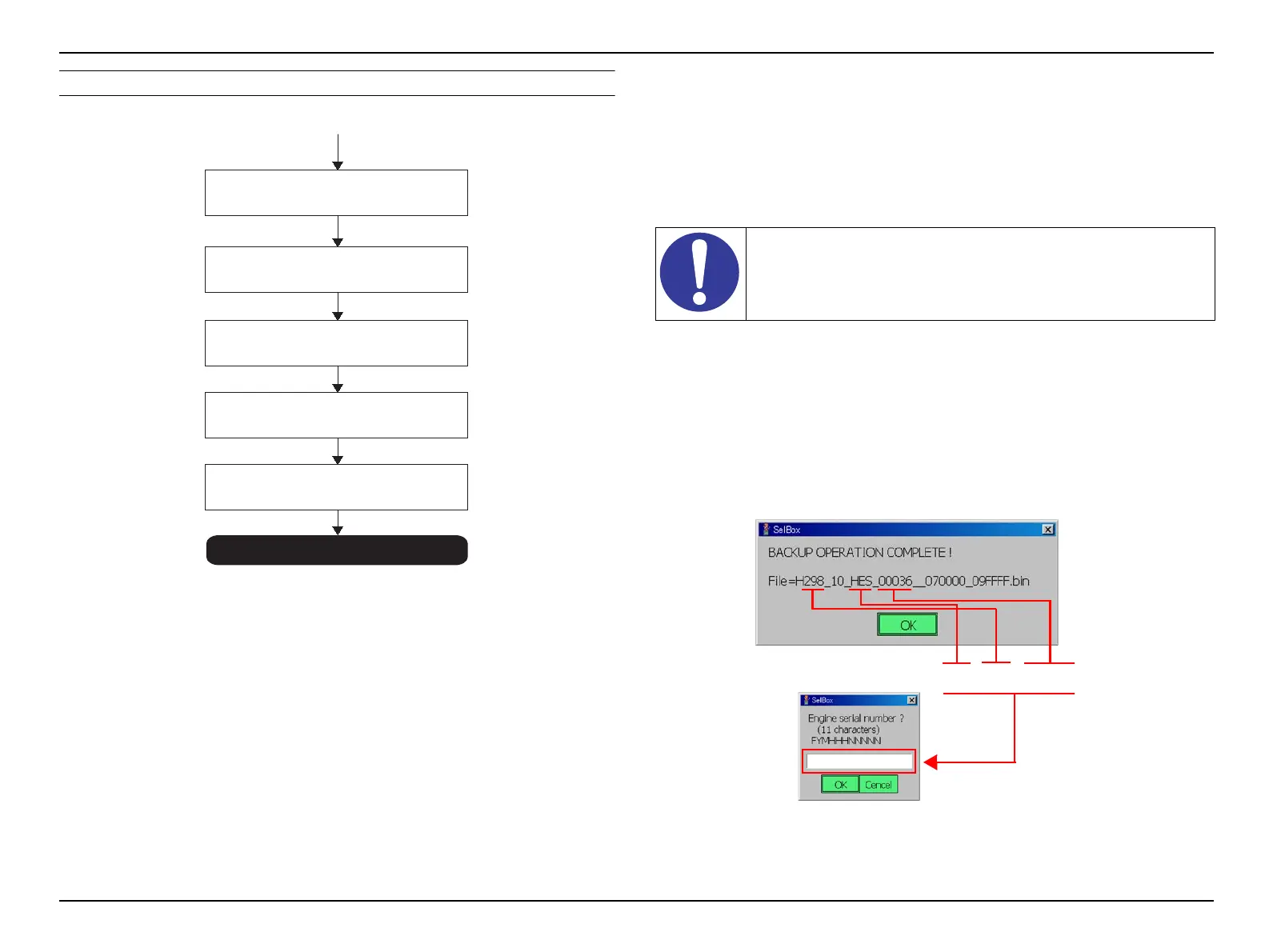

REPLACING THE MA BOARD (WHEN BACKUP SUCCEEDED)
Figure 3-47. MA Board replacement workflow (when BACKUP succeeded)
 Replacing it with a good MA Board
1. Prepare a good MA Board belonging to the same model group, and replace
the boards.
 Turning on the projector
2. Turn the projector ON.
 Connect the projector to the PC
3. Connect the projector to the PC using an RS-232C cable.
 Writing the DR data
4. Start up the CAT.
5. Select the group from [SETUP] - [SELECT MODEL] menu, by referring to
the number; *** and sax, that can be found in a file name;
“H***_xx_yyy_zzzzz_zzzzzz_zzzzzz.bin” of the DR data that stored in
C:\IRIS\DRDATA folder.
6. When BACKUP is complete, the completion message including file name is
displayed. Recompose the file name as follows and enter the 11digits. And
then, execute RESTORE.
(Continued to the next page)
END
Turning on the projector
BACKUP succeeded
Writing the DR data
Connect the projector to the PC
Replacing the MA Board
(when BACKUP succeeded)
Image/Operation check
Refer to the user’s manual for communication configuration.
HES 2 9 8 0 0 0 3 6
FYM HHH NNNNN

Epson EB-X12 Specifications

General

Matrix size	0.55 \
Projection distance	- m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Aspect ratio	4:3
RS-232 ports	0
Dimensions (WxDxH)	295 x 228 x 77 mm
Connectivity technology	Wired
Maximum operating altitude	2286 m
Offset	8:1 %
Zoom capability	Yes
Focal length range	1.58 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	-
RMS rated power	2 W
Product type	Standard throw projector
Product color	Black, White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.47 W
Power consumption (typical)	283 W
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3847 g
