Projector Parts and Functions
11
Name Function
A
Foot release lever Press the foot release lever to extend and retract the
front adjustable foot.
B
Ceiling Mount / Floor
Stand fixing point or
Lighting Track Mount
fixing point
Attach the optional Ceiling Mount / Floor Stand or
Lighting Track Mount here.
C
Rear feet (Ceiling
Mount / Floor Stand
fixing points or
Lighting Track Mount
fixing points)
Loosen these feet by turning them counterclockwise,
and then remove them to attach the optional Ceiling
Mount / Floor Stand or Lighting Track Mount.
D
Front adjustable foot When setup on a surface such as a desk, extend the foot
to adjust the position of the image.
E
Air filter cover Open to access the air filter.
gg Related Links
• "Air Filter and Vent Maintenance" p.71
• "Adjusting the Image Height" p.31

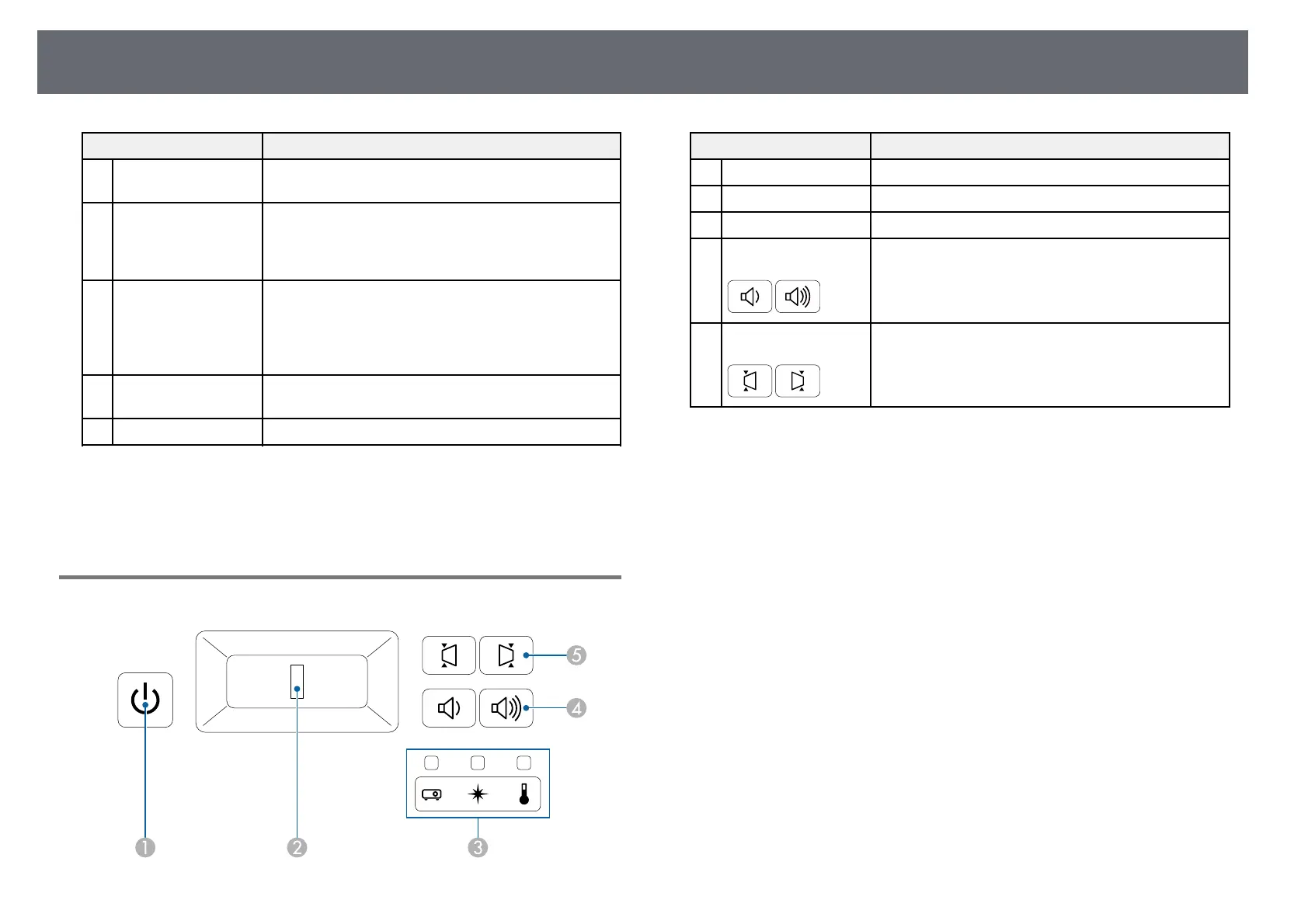

Projector Parts - Control Panel
Name Function
A
Power button Turns the projector on or off.
B
Focus lever Adjusts the image focus.
C
Indicators Indicates the projector's status.
D
Volume up/down
buttons
Adjusts the volume for the speaker and headphones.
You can also control the volume for Bluetooth audio
devices connected to the projector.
E
Horizontal keystone
buttons
Displays the Keystone screen allowing you to correct
horizontal keystone distortion.
gg Related Links
• "Projector Indicator Status" p.75
• "Correcting the Image Shape Horizontally with the Horizontal Keystone
Buttons" p.32
• "Turning On the Projector" p.27
• "Focusing the Image Using the Focus Lever" p.36
• "Controlling the Volume with the Volume Buttons" p.49
