Projector Parts and Functions
9
The following sections explain the projector parts and their functions.
gg Related Links
• "Projector Parts - Front/Top" p.9
• "Projector Parts - Rear" p.10
• "Projector Parts - Base" p.10
• "Projector Parts - Control Panel" p.11
• "Projector Parts - Remote Control" p.12

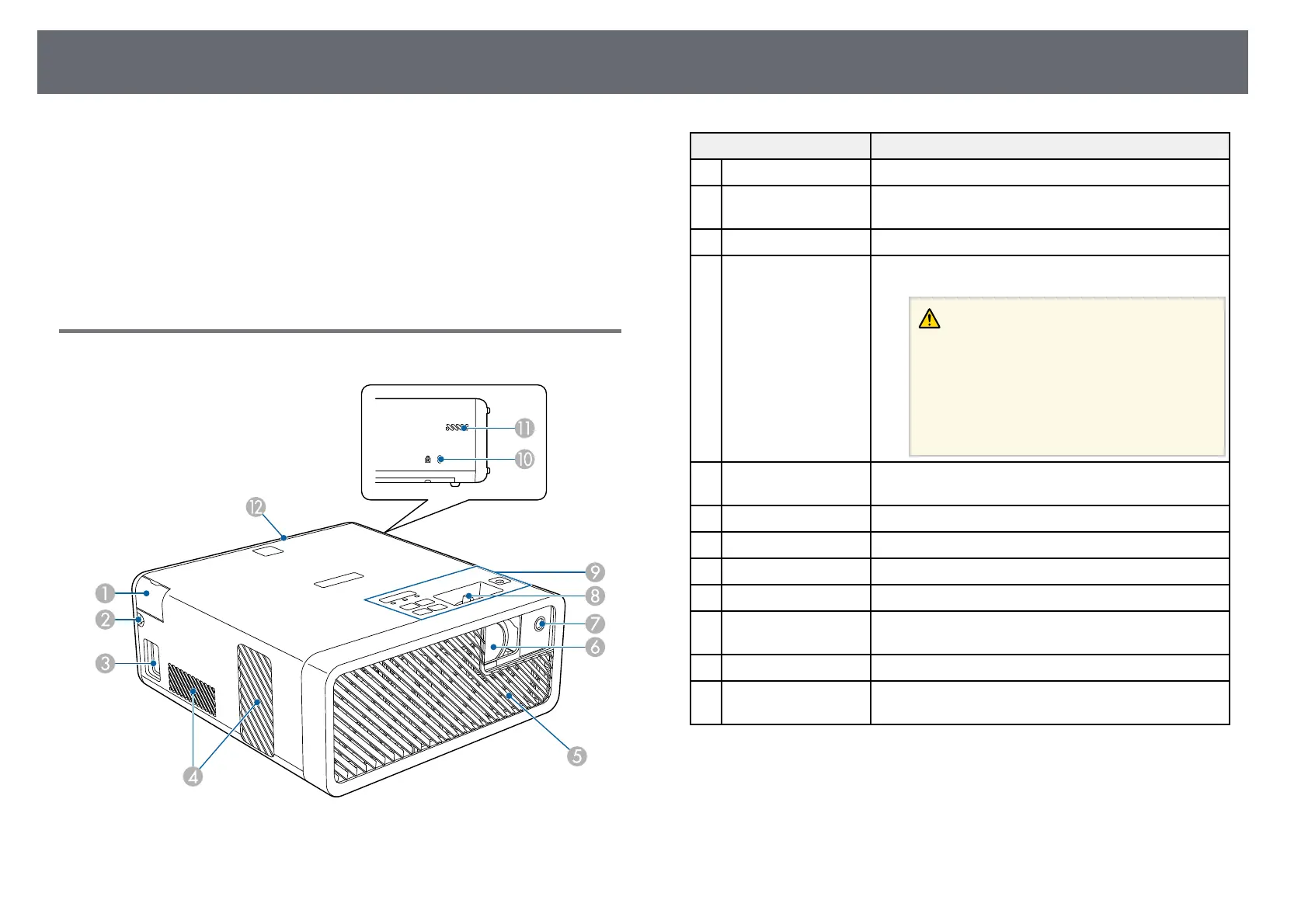

Projector Parts - Front/Top
Name Function
A
Audio Out port cover Open to connect headphones.
B
Cable path Pass an HDMI cable connecting the projector and
video equipment through here.
C
Power inlet Connects the power cord to the projector.
D
Air exhaust vents Exhaust vents for air used to cool the projector
internally.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
E
Air intake vent (air
filter)
Takes in air to cool the projector internally.
F
Projection window Images are projected from the lens inside the projector.
G
Remote receiver Receives signals from the remote control.
H
Focus lever Adjusts the image focus.
I
Control panel Operates the projector.
J
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
K
Air intake vent Takes in air to cool the projector internally.
L
Rear cover Open to connect a streaming media player or other
video equipment.
gg Related Links
• "Remote Control Operation" p.24
• "Projector Parts - Control Panel" p.11
• "Focusing the Image Using the Focus Lever" p.36
• "Connecting to Video Sources" p.20
• "Connecting Headphones" p.21
• "Installing a Security Cable" p.56
