Epson EF-100W - External Dimensions

To Next Page

To Previous Page

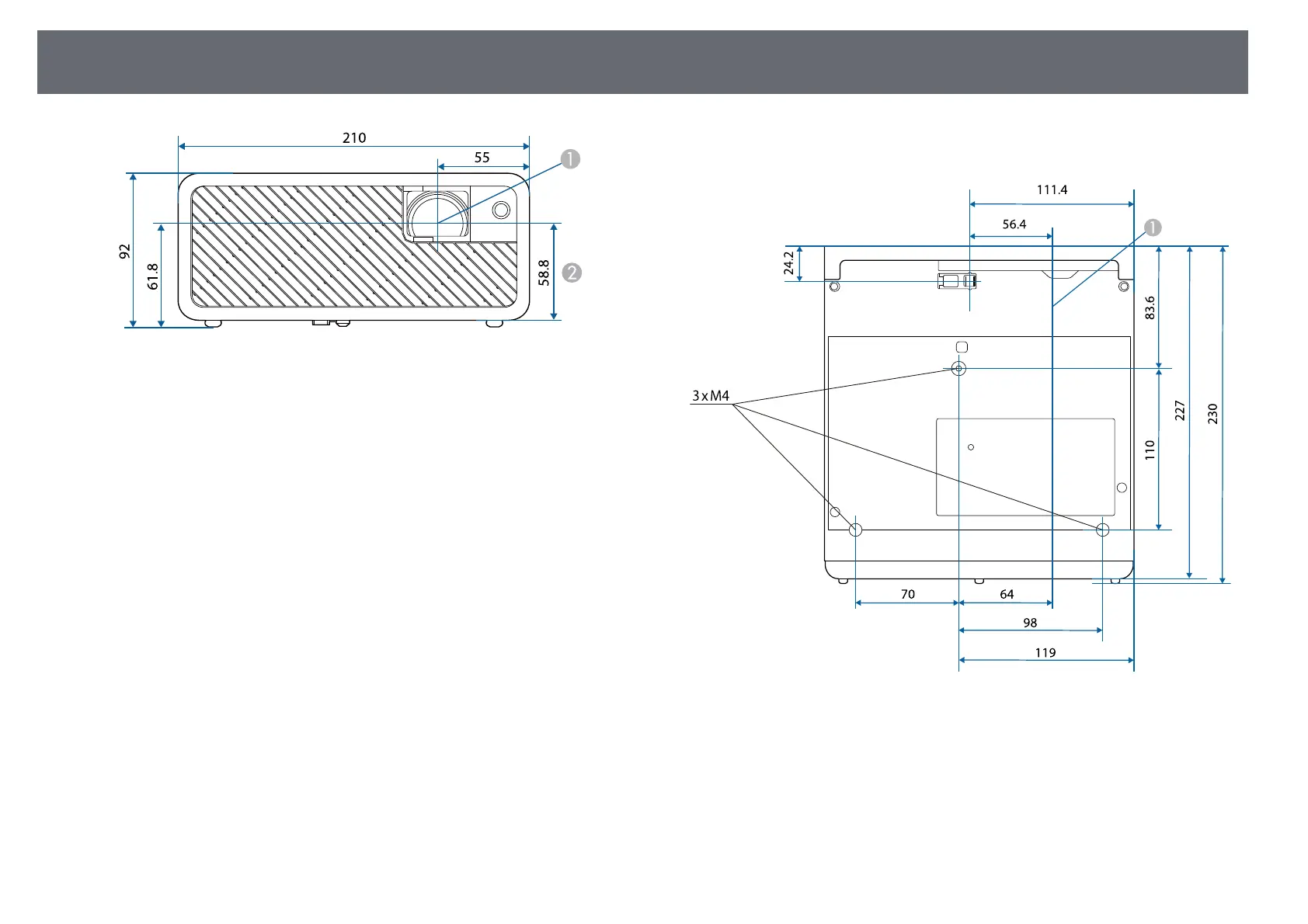

External Dimensions

Center of lens

Distance from center of lens to suspension bracket fixing point

The unit in these illustrations is mm.
