Basic Operations
30
Attention

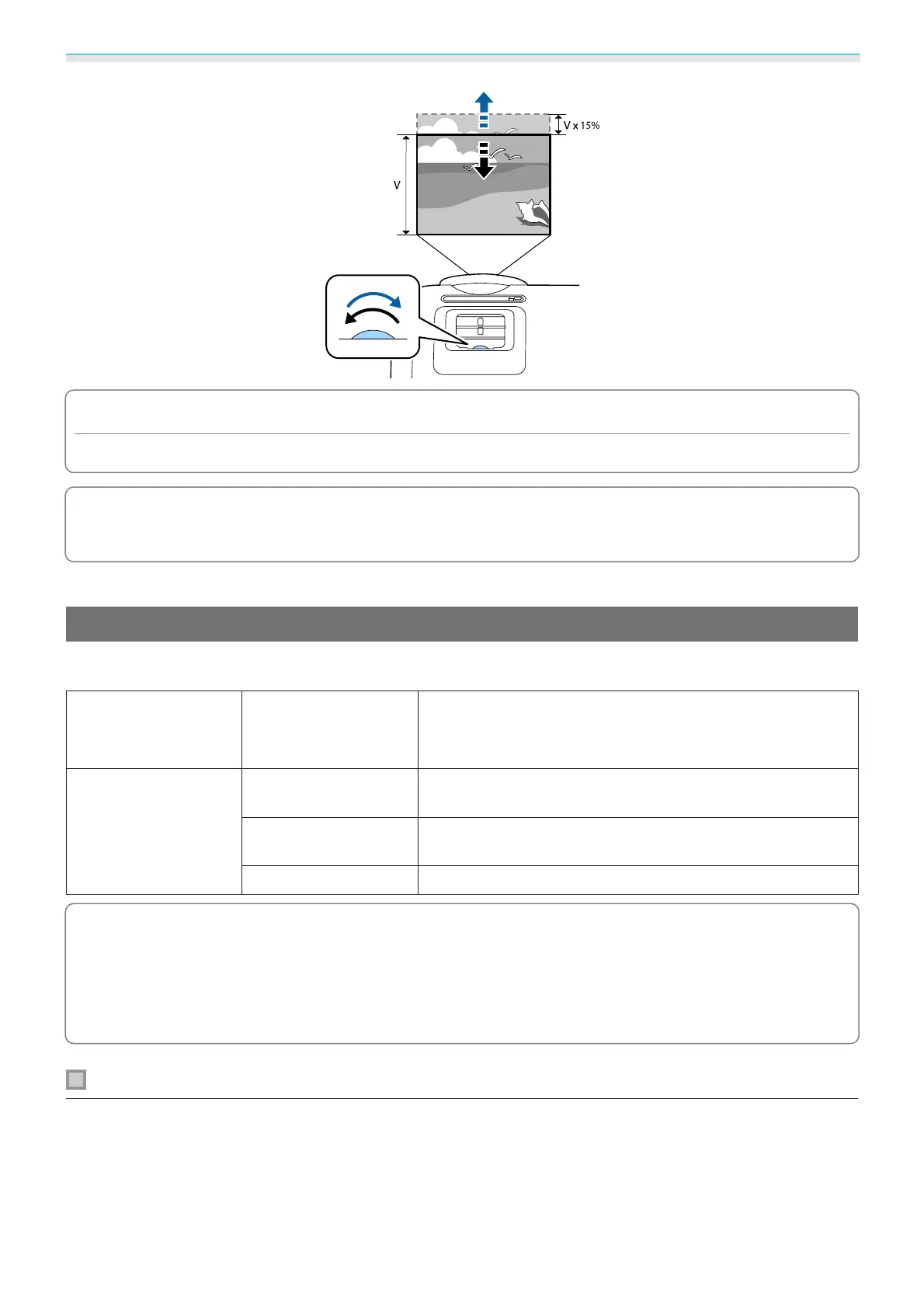

When using lens shift for adjusting the position of the image, adjust the image by moving it upward.
c
When adjusting the projection position using the lens shift, you are recommended to install the
projector in parallel with the screen.
Correcting Distortion
You can correct keystone distortion using one of the following methods.
Correct automatically
(EH-TW5650/EH-
TW5600 only)
Auto V-Keystone Automatically correct vertical keystone distortion.
Correct manually H-Keystone Adjuster Correct horizontal keystone distortion with the horizontal
keystone adjuster.
H/V-Keystone Manually correct distortion in the horizontal and vertical di-
rections independently.
Quick Corner Adjust the four corners of the projected image individually.
c
•
The projected image becomes smaller after correcting distortion. Increase the projection distance to
fit the projected image to the screen size.
•
Install the projector parallel with the screen without any loss in image quality. If you cannot install the
projector parallel to the screen, adjust the shape of the image using H/V-Keystone correction.
•
When correcting distortion, rotate the lens shift dial to adjust the lens position to the top edge. If the
lens position is incorrect, the projection screen may be warped.
Correct automatically (Auto V-Keystone) (EH-TW5650/EH-TW5600 only)
When the projector is moved or tilted during projection, Auto V-Keystone automatically corrects any vertical
keystone distortion. Two seconds after the projector is moved, it displays an adjustment screen and then
automatically corrects the projected image.
Auto V-Keystone can correct the projected image distortion in these conditions:
•
Projection angle is less than 30° up or down.
To Next Page
