Introduction
7
Name Function
i
Air filter cover
When replacing the air filter, open this cover and remove the air filter. s p.94
j
Focus adjuster (EH-
TW5650/EH-TW5600)
Focus ring (EH-TW5400)
Adjusts the image focus. s p.28
k
Zoom adjuster (EH-
TW5650/EH-TW5600)
Zoom ring (EH-TW5400)
Adjusts the image size. s p.28
l
Lens shift dial (EH-
TW5650/EH-TW5600
only)
Moves the position of the image vertically. s p.29
m
Horizontal keystone ad-
juster
Performs horizontal keystone correction. s p.31
n
Control panel
Operates the projector. s p.7

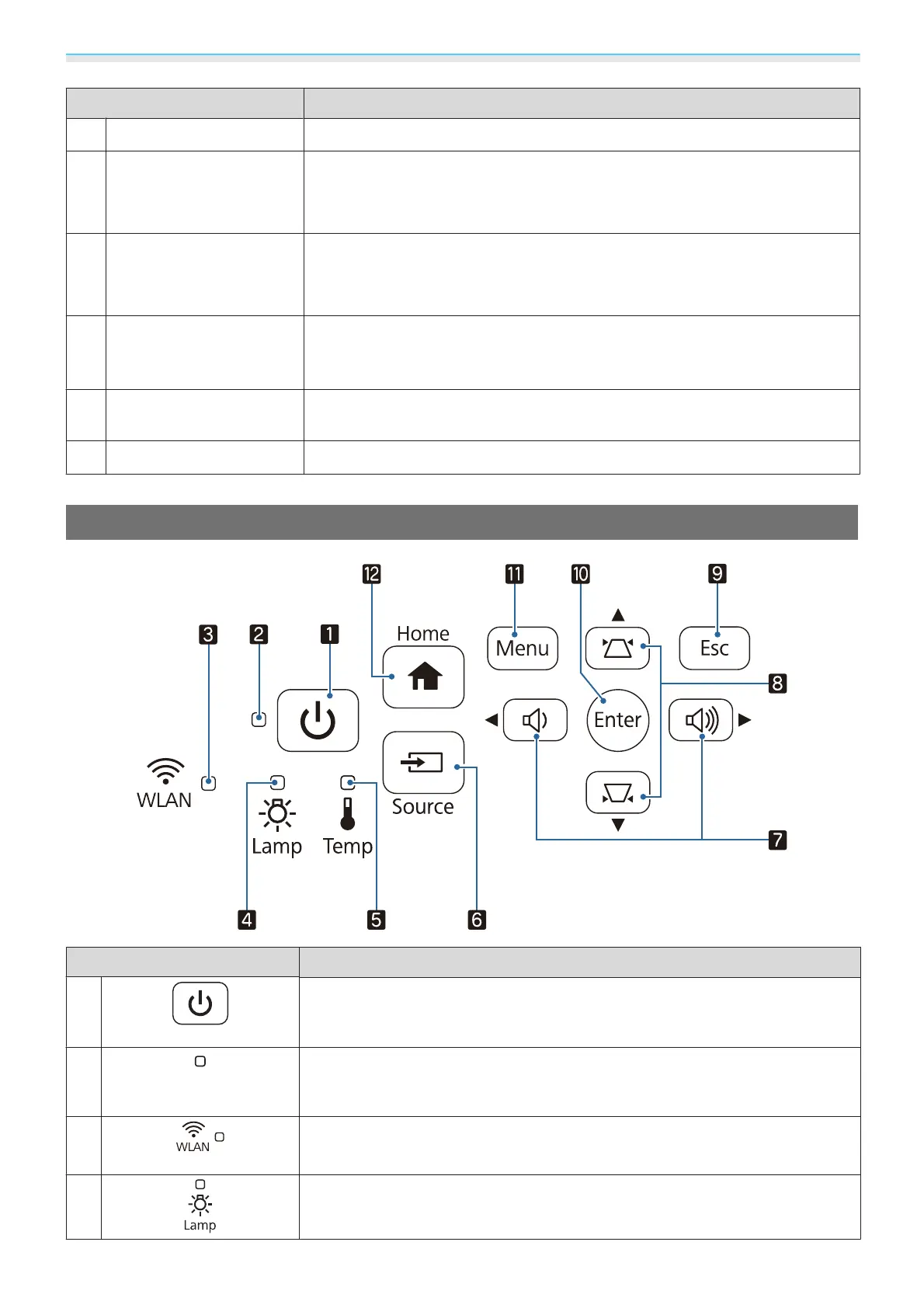

Control Panel
Buttons/Indicators Function
a
Turns the projector on or off. s p.25
Shows the projector's status through a combination of other indicators lit and
flashing.
s p.79
b
Operation indicator
Flashes blue to indicate the projector is warming up or cooling down. Shows
the projector's status through a combination of other indicators lit and flashing.
s p.77
c
Shows the access status to the wireless LAN by lighting or flashing. s p.79
EH-TW5600/EH-TW5400 do not light or flash.
d
Flashes orange when it is time to replace the lamp. Shows the projector's errors
through a combination of other indicators lit and flashing.
s p.77
