Assembling the Printer
5. Make sure the printer cover is in the lower position.

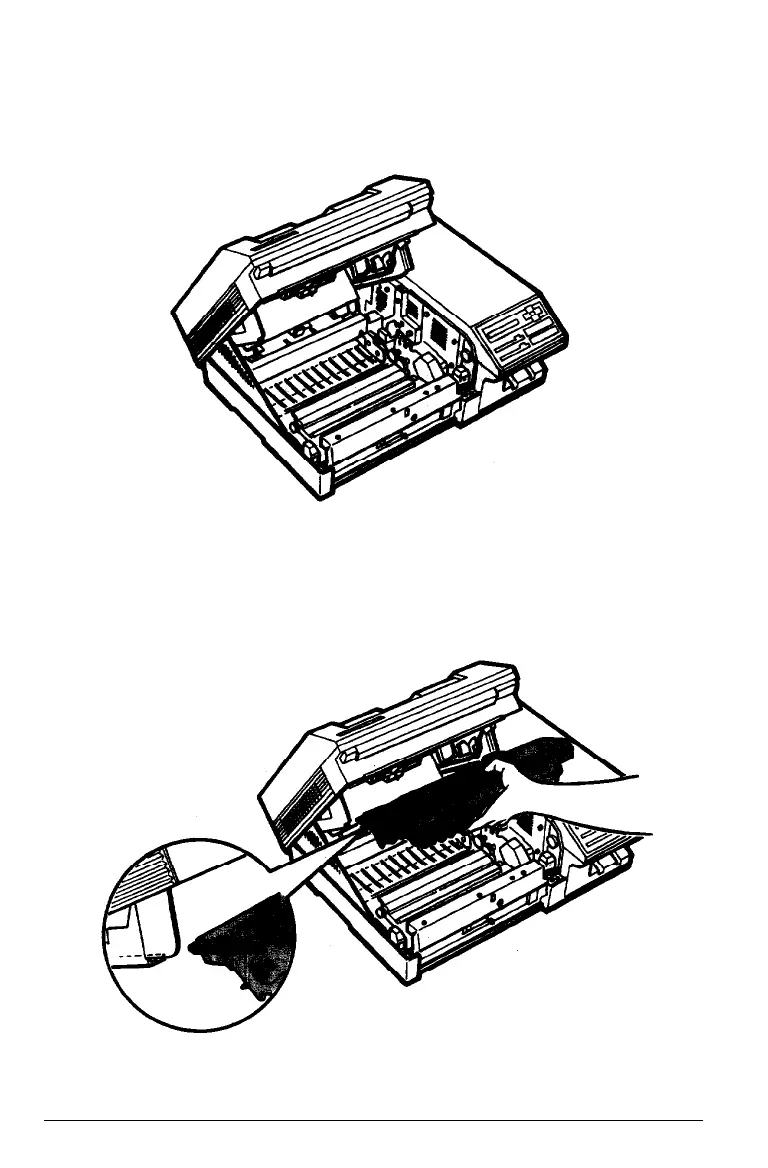

6. Hold the imaging cartridge as shown below. Carefully place the
plastic runners on either side of the cartridge into the green
grooves inside the printer. Slide the cartridge forward as far as
it will go.
1-18
Setting Up the Printer
