Epson GT-12000 - Source Document; Parallel Interface

Source document
Reflective type: Opaque documents with smooth surfaces
Transparency type: Reversal film, Negative film
(Optional transparency unit is required.)
Parallel interface
Interface type: Bidirectional parallel interface
Data format: 8-bit parallel
Synchronization: By external strobe pulse
Handshaking: By ACKNLG and BUSY signals
Logic level: Input/output data and interface control
signals are TTL compatible
Connector type: 36-pin Centronics
®
type connector

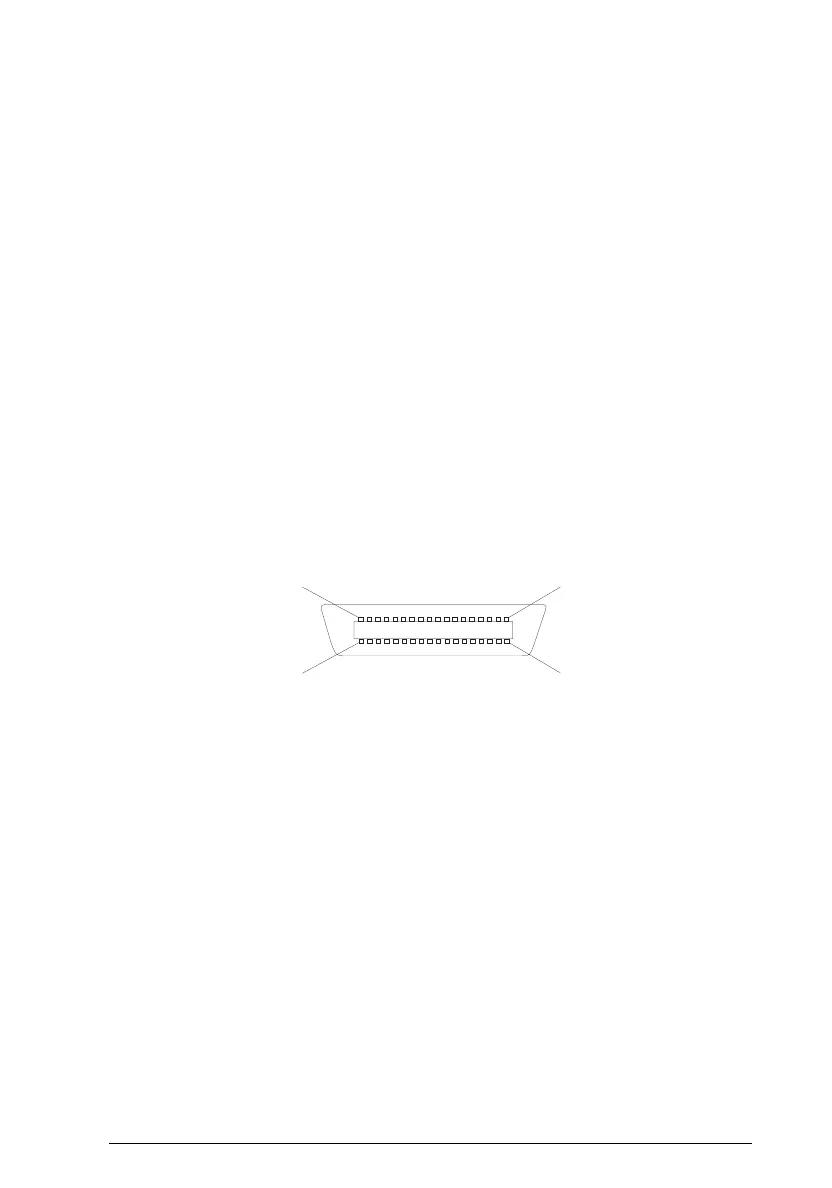

Connector pin arrangement:
