Setting the terminator switch
The scanner has a built-in terminator, which allows SCSI devices
to communicate properly with each other. You may need to
change the terminator switch setting according to your computer
system.
Note:
Do not use an external terminator.

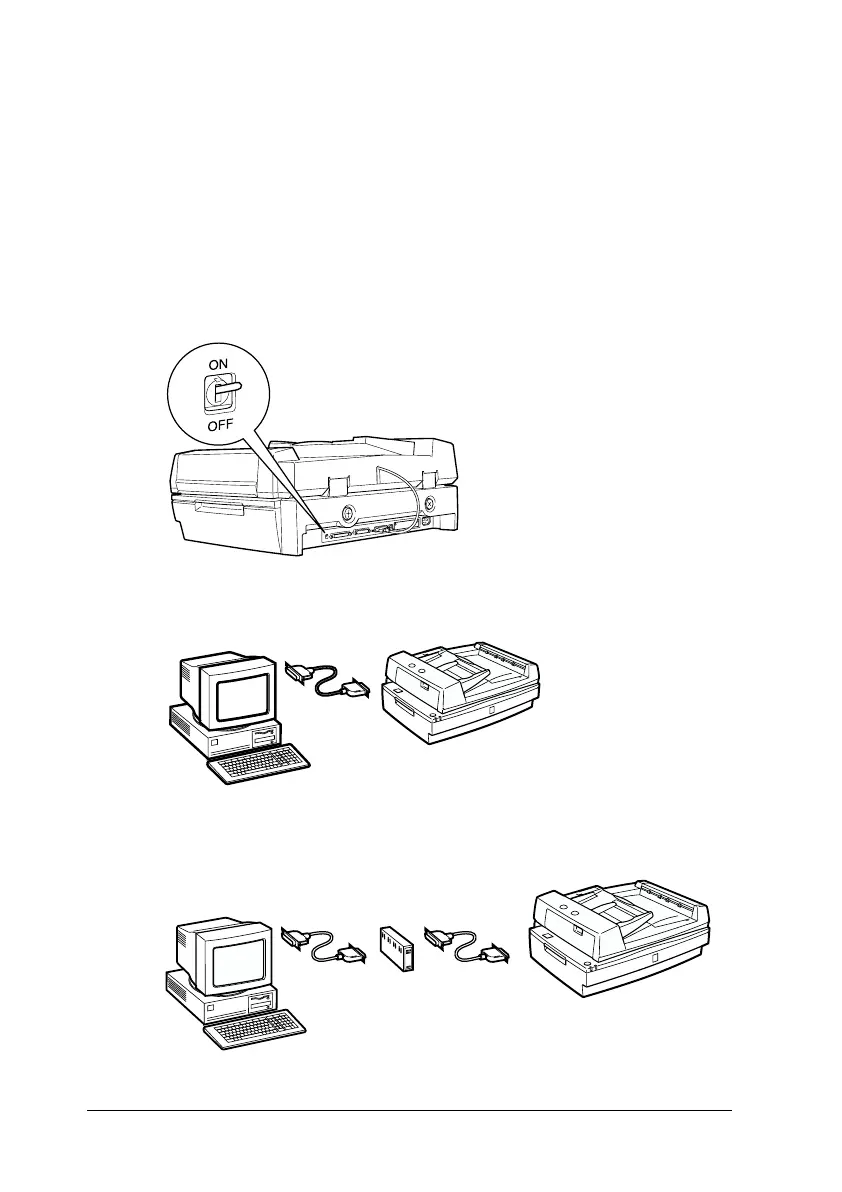

The terminator switch is located
at the rear of the scanner.
Only the scanner is connected
terminator on
(other SCSI device)
terminator on
The scanner is the last device in the daisy chain
