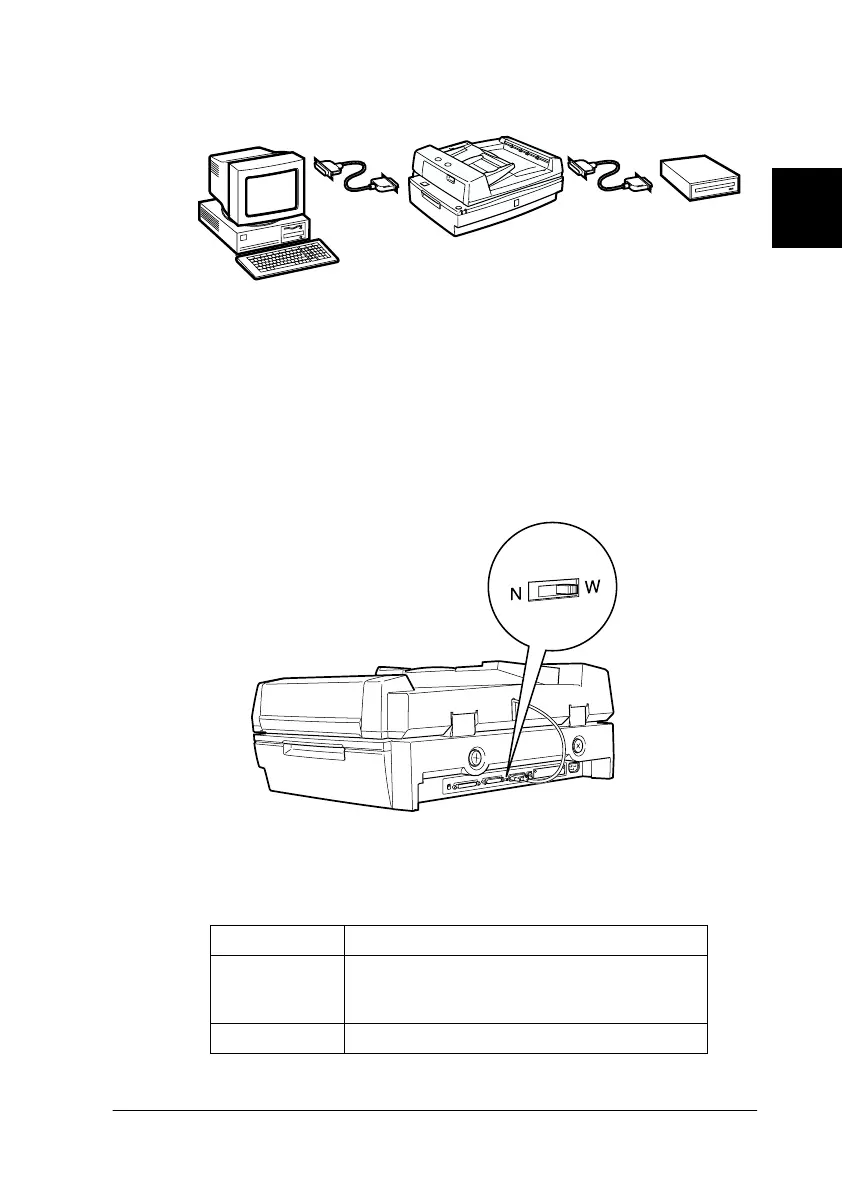

Setting the select switch
The scanner has two SCSI connectors: one is for a wide 68-pin SCSI
cable and the other for a narrow 50-pin SCSI cable. You may need
to change the select switch setting according to the SCSI cable you
are using.
You may need to change the select switch setting according to the
SCSI device connection.
Select switch SCSI cable
N
Host adapter is wide SCSI, and there are 50-
pin SCSI cables between host adapter and
scanner.
W (default) Except above connection.
The scanner is in the middle of the daisy chain
terminator off
(other SCSI device)
