Epson GT-30000 Setup Guide

5
Using the Start Button
5-3
R4C3820
Rev. C
A5 size SBUTTON.FM
4/9/01 Pass 0
R
Proof Sign-off:
KOW S.Koide C.Fujiwara
J.Miyakoshi
NOC Lee

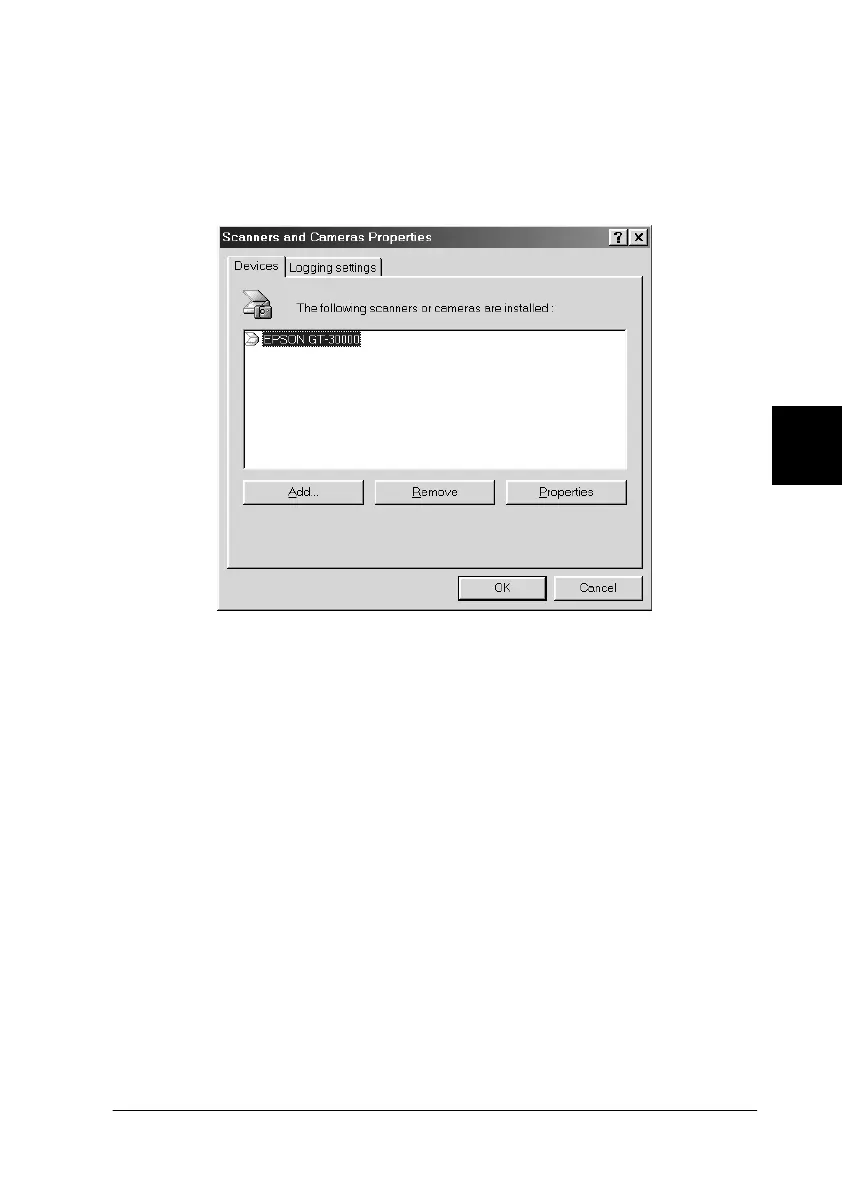

Once EPSON TWAIN HS is installed on Windows 98, 2000, or
Millennium Edition, the Scanners and Cameras icon appears
in Control Panel, and your scanner is listed in the Scanners and
Cameras Properties dialog box similar to the one shown below.
Assigning an application to the Start button
After you install applications which support “Scanner events“,
you need to select one of these applications for the scanner event.
If you want to use your scanner’s
a Start button with the
supporting application, follow the steps below.
For Windows Millennium Edition users
1. Double-click the Scanners and Cameras icon in Control
Panel.
2. In the Scanners and Cameras folder, double-click your
scanner in the installed scanners and cameras list.

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
