Epson GT-30000 Setup Guide

3
Installing the Software
3-31
R4C3820
Rev. C
A5 size INSTALL.FM
4/9/01 Pass 0
R
Proof Sign-off:
KOW S.Koide C.Fujiwara
J.Miyakoshi
NOC Lee
Installing EPSON TWAIN HS Network
Install and use EPSON TWAIN HS Network on a client PC that
is connected to your network. Make sure you know the IP address
or host name of the host PC on which you installed EPSON Scan
Server as you will need it while installing EPSON TWAIN HS
Network.
1. Insert the scanner software CD in the CD-ROM drive.

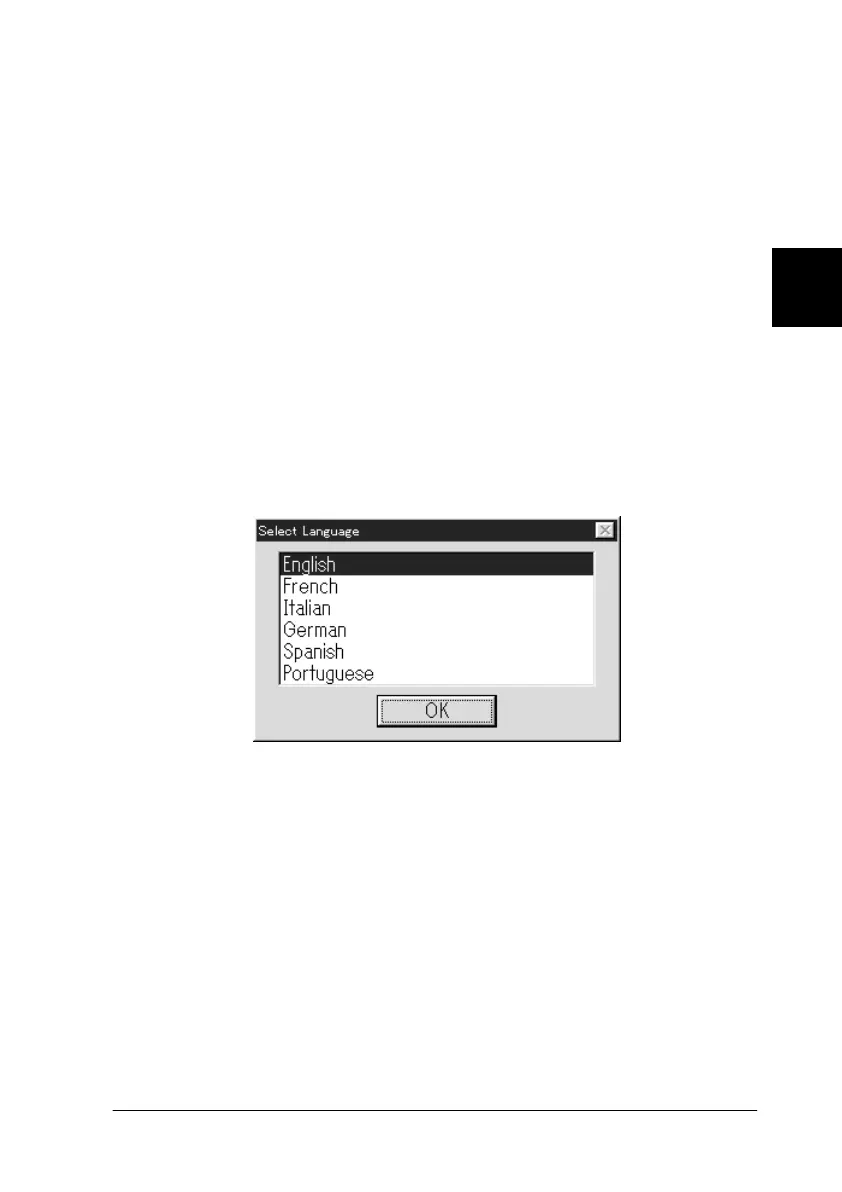

The installer automatically starts and the Select language
dialog box appears. If the dialog box does not appear, start
Windows Explorer and double-click Cdsetup.exe in the CD-
ROM drive.
2. Select your preferred language and click OK.

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
