Epson GT-30000 Quick Start Manual

GT-30000
A5-Format Quick Start Manual_E.fm
1/11/01 Left
L
22

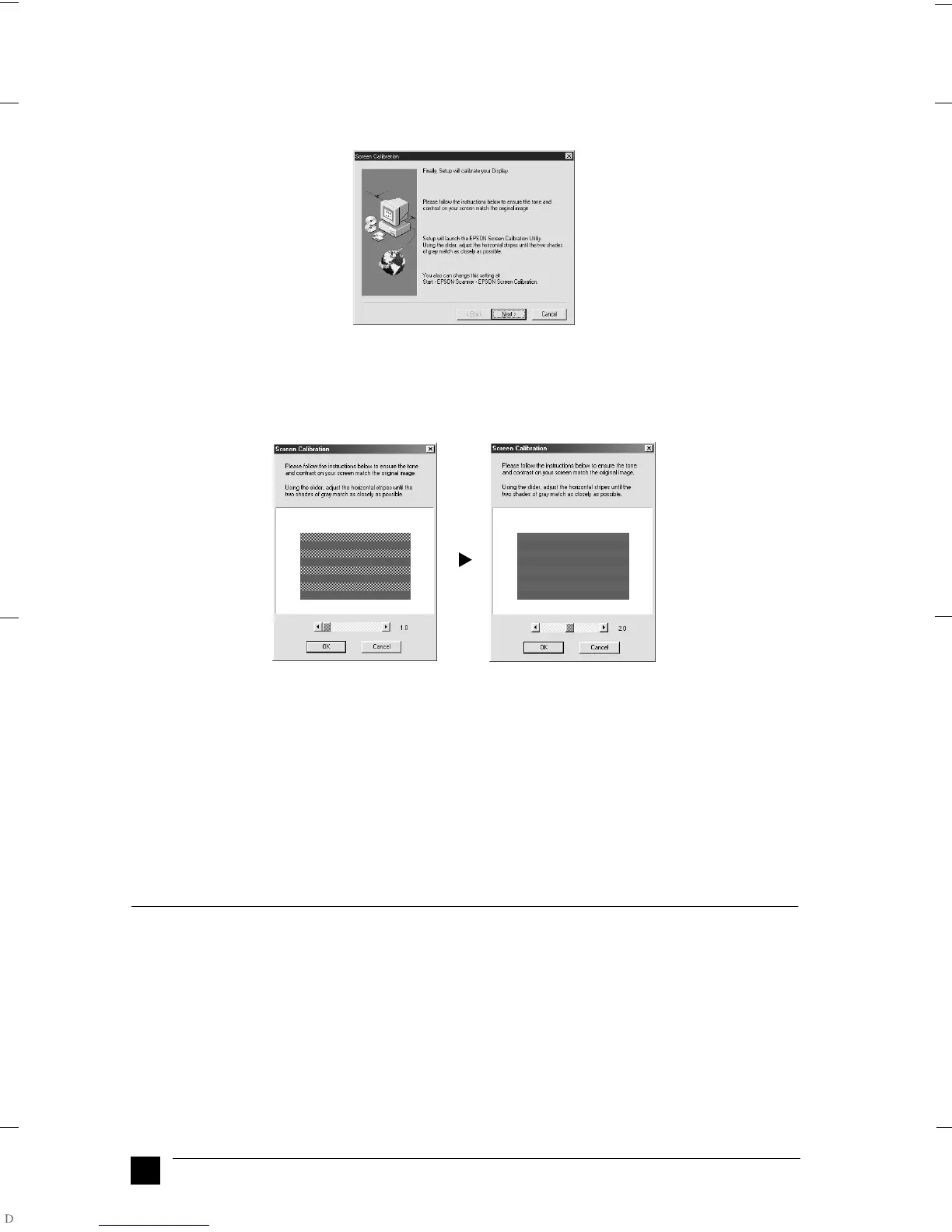

During the EPSON scanner software installation, the following dialog box appears.
1. Click Next
.
2. In a dialog box similar to the one shown below, move the slider to the right or left
until the two shades of the gray horizontal stripes match.
Note:
View the screen from a short distance. While the gray stripes do not blend
perfectly well, try to adjust until the different tones match as closely as possible.
3. Click OK to register the calibration setting.
4. When the message Setup is complete appears, click OK
.
Screen calibration is not required any more until you change to a different monitor.
■ Using the Online Manuals
The CD-ROM shipped with your scanner includes online manuals in PDF format (PDF
= Portable Document Format). PDF files can be used on various platforms (e.g.
Windows, Macintosh, Unix, etc.) and are electronic manuals with the same layout,
illustrations, tables etc. to be found in a printed manual. You can display an online
manual on your computer screen and print it out on any connected printer, if required.
The following online manuals are available:
r

Epson GT-30000 Specifications

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without ADF	65W
power consumption operating with ADF	90W
power consumption standby without optional unit	12W

Operating Environment

temperature operating	41ºF to 95ºF (5ºC to 35ºC)
humidity operating	10% to 80% (no condensation)
humidity storage	10% to 85% (no condensation)

Scanning Specifications

optical resolution	600 x 1200 dpi with Micro Step Drive™ technology
maximum resolution	9600 x 9600 dpi with interpolation
effective pixels	7020 x 10200 pixels (600 dpi)
color depth internal	36 bits per pixel
color depth external	24 bits per pixel (selectable)
grayscale depth internal/external	12 bits per pixel
grayscale depth external	8 bits per pixel
scanning speed at 1600 dpi, draft mode, color	0.79 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, grayscale	0.39 msec/line (approx.)
scanning speed at 1600 dpi, draft mode, art	0.39 msec/line (approx.)

Weight and Dimensions

maximum read area	11.7" x 17.0" (297mm x 432mm)
width	25.9" (658mm)
depth	19.2" (488mm)
height	10.0" (254mm)
weight	66 lb (37.5 kg approx.)
