L800/L801 Revision A
Disassembly/Reassembly Overview 10
Confidential
1.1 Overview
This chapter describes procedures for disassembling the main parts/units of
L800/L801. Unless otherwise specified, disassembled parts/units can be
reassembled by reversing the disassembly procedure. See the cautions or tips
for disassembly/reassembly described in
“ 1.2 Disassembly/Reassembly
Procedures (p17)”
.
Read the following before disassembling and reassembling.
¸
“ Safety Precautions (p3)”
¸
“ 1.1.2 Checks and Precautions before Disassembling (p10)”
When you have to remove units or parts that are not described in this chapter,
see the exploded diagrams of SPI (Service Parts Information).
1.1.1 Tools
Use only specified tools to avoid damaging the printer.
Note : All of the tools listed above are commercially available. EPSON provides the tools
listed with EPSON tool code.
1.1.2 Checks and Precautions before Disassembling
1.1.2.1 Factors which Affect the Print Quality
HOW TO PLACE THE INK TANK ASSY WHEN DISASSEMBLING/
REASSEMBLING
The film under sealing film attached on the Ink Supply Tank Assy of this
printer is ventilation film. The ink in the ink tanks is vented to atmosphere
through this film to keep ink supply to the Printhead stable. If the film gets wet
with ink, the ink in the tanks is not properly vented and printing may not be
capable.
In order to prevent this from occurring, make sure to place the Ink Supply Tank
Assy as shown below after removing it.

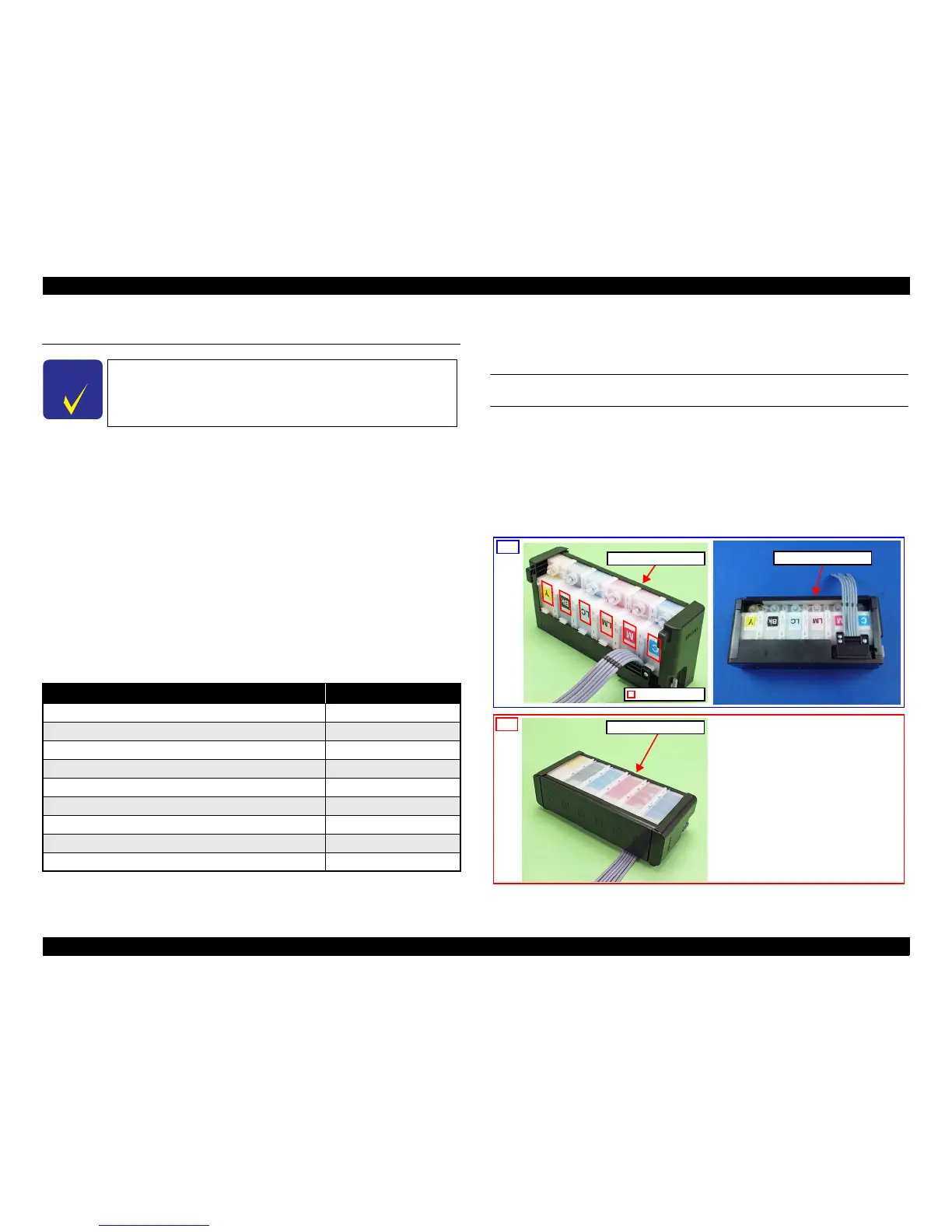

Figure 1-1. How to Place the Ink Tank Assy
C H E C K
P O I N T
Some pictures in this manual are for Epson Stylus Photo R280/
R285/R290; therefore, the shapes of the parts are different from
those of L800/L801, but the differences does not affect the
disassembly/reassembly procedures.
Table 1-1. List of Tools
Tool Part No.
Phillips Screwdriver (No.1) 1080530
Phillips Screwdriver (No.2) ---
Flathead Screwdriver ---
Precision Screwdriver #1 (flathead) ---
Tweezers ---
Long-nose pliers ---
Acetate tape 1003963
2 pins (thinner than Ø2 mm) ---
Strong tape 1032813
Ink Supply Tank Assy
Ink Supply Tank Assy
Ink Supply Tank Assy
Ventilation film
Do not place the Ink Supply Tank Assy with
its film side down. Otherwise, ink in the Ink
Supply Tank Assy may reach and cover the
ventilation film, and the printing failure may
occur.
OK
NG
To Next Page
