Epson L800 Service Manual

L800/L801 Revision A
Maintenance Overview 90
Confidential
3.1.3 Lubrication
The type and amount of the grease used to lubricate the printer parts are
determined based on the results of the internal evaluations. Be sure to apply the
specified type and amount of the grease to the specified parts during servicing
mentioned below.
¸ When parts that need lubrication is been replaced
¸ As the need arises during disassembly/reassembly of the printer
Refer to the following figures for the lubrication points.

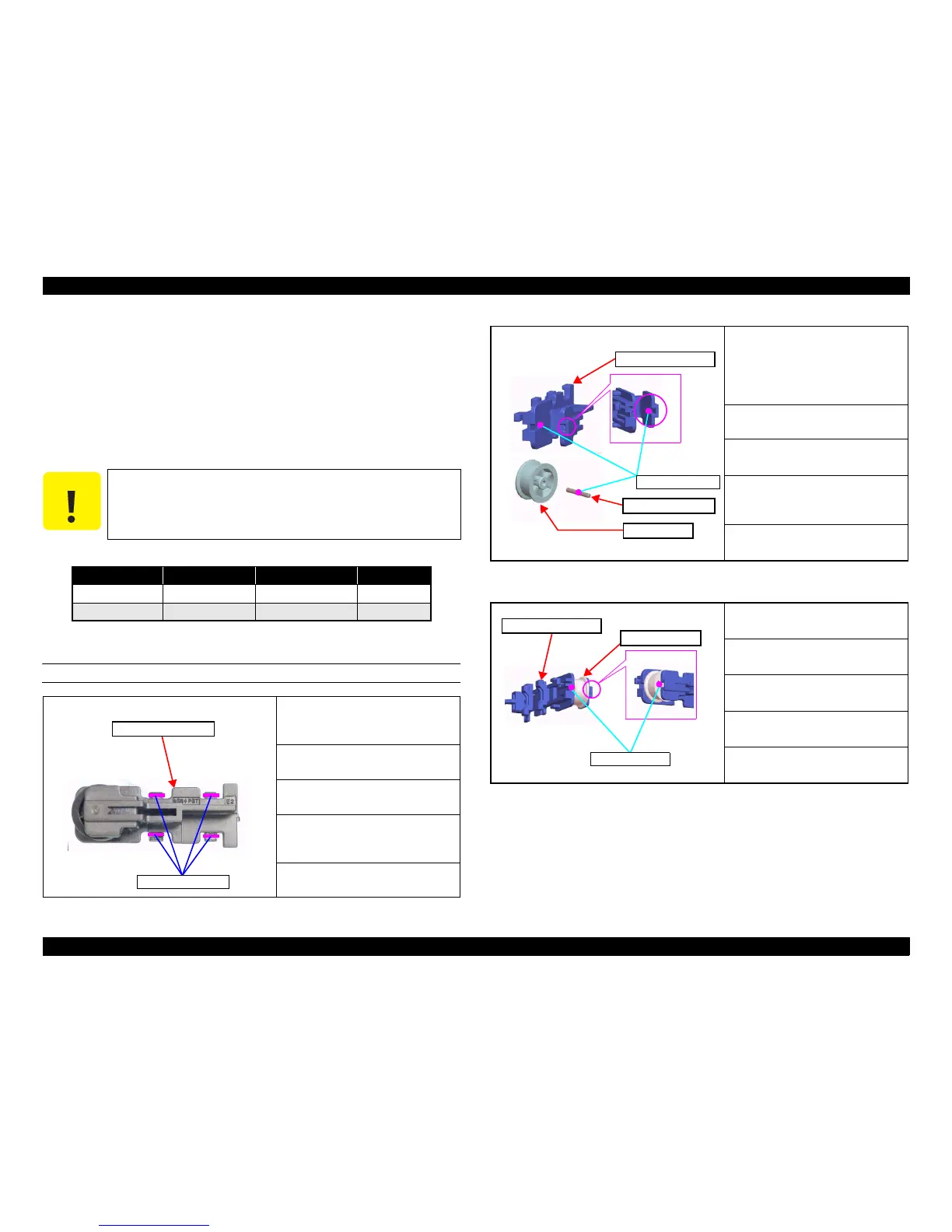

LUBRICATION OF DRIVEN PULLEY
Figure 3-1. Lubrication of Driven Pulley (1)
Figure 3-2. Lubrication of Driven Pulley (2)
Figure 3-3. Lubrication of Driven Pulley (3)
C A U T I O N
 Never use oil or grease other than those specified in this manual.
Use of different types of oil or grease may damage the component
and adversely affect the printer operation.
 Observe the specified amount. Never apply excess.
Table 3-1. Specified Lubricant
Type Name EPSON code Supplier
Grease
G-71 1304682 EPSON
Grease
G-77 1455324 EPSON
<Lubrication Points>
Four points where contact with the Main
Frame
<Type>
G-71
<Application Amount>
ø 1 x 4 mm x 4 points
<Application Timing>
Apply before installing the Driven
Pulley
<Remarks>
Apply with Injector
Application Point
Driven Pulley Holder
<Lubrication Points>
Two points on bushings for the Pulley
Shaft
One point at the center of the Pulley
Shaft
<Type>
G-71
<Application Amount>
ø 1 x 1 mm x 3 points
<Application Timing>
Apply before installing the Driven
Pulley
<Remarks>
Apply with Injector
<Lubrication Points>
Two points on the side of the Pulley
<Type>
G-71
<Application Amount>
ø 1 x 1 mm x 2 points
<Application Timing>
Apply after installing the Driven Pulley
<Remarks>
Apply with Injector
Application Point
Driven Pulley Shaft
Driven Pulley
Driven Pulley Holder
Driven Pulley
Application Point
Driven Pulley Holder

Epson L800 Specifications

General

Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (10x15 cm)	12 s
Print speed (black, draft quality, A4/US Letter)	37 ppm
Print speed (color, draft quality, A4/US Letter)	38 ppm
Printing sizes	10 x 15 cm
Maximum print size	216 x 356 mm
ISO A-series sizes (A0...A9)	A4, A6
Photo paper sizes (imperial)	4x6, 8x10 \
Total input capacity	120 sheets
Product color	Black
Built-in display	No
Market positioning	Home & office
Number of printing colors	6
USB port	Yes
Direct printing	-
USB 2.0 ports quantity	1
AC input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	13 W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Connectivity technology	Wired
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	289 mm
Width	537 mm
Height	188 mm
