L800/L801 Revision A
Disassembly/Reassembly CR Scale 40
Confidential

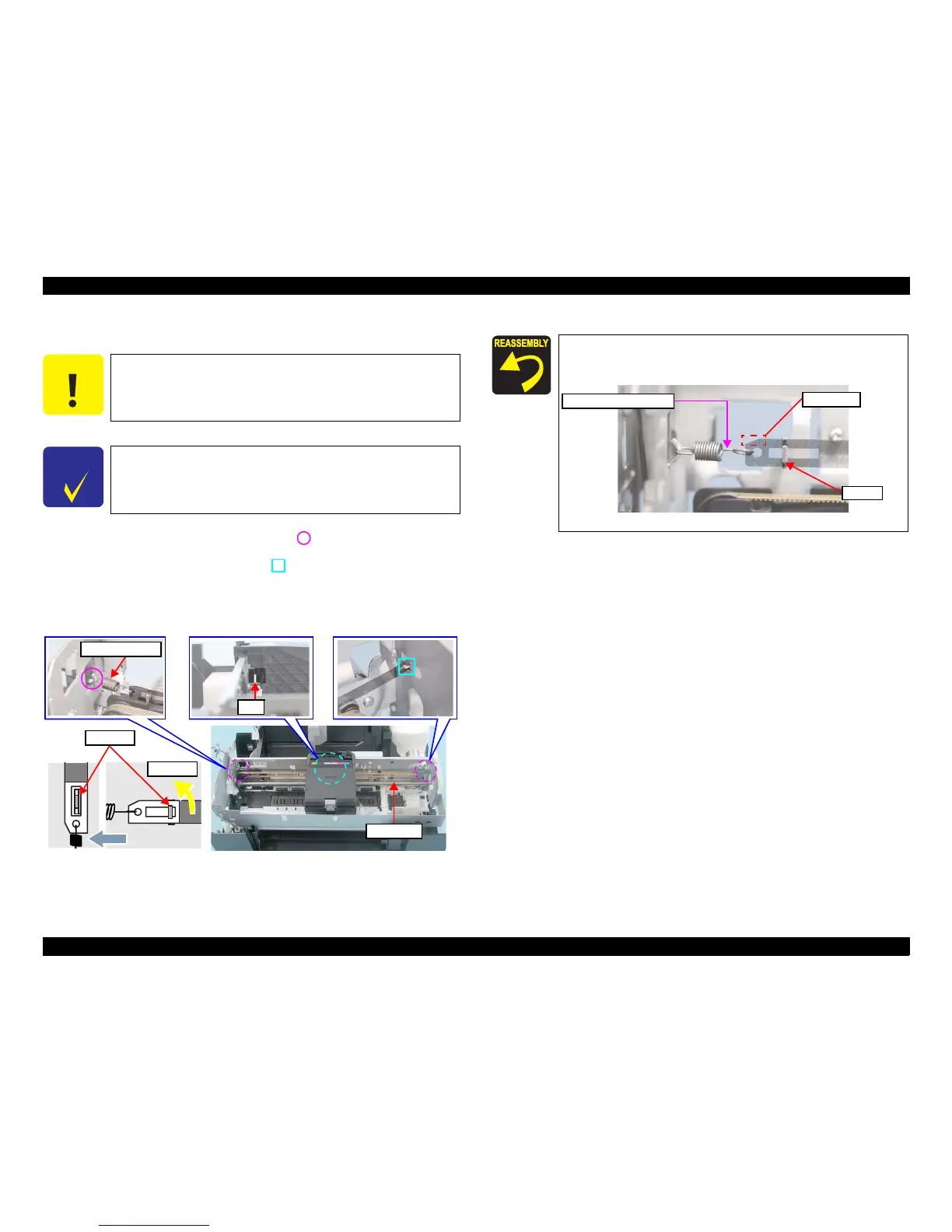

1.5.3 CR Scale
¸ Removal procedure
1. Unlock the carriage and move the CR Unit to the center.
2. Remove the Torsion Spring from the hook ( ) on the left side of the Main
Frame.
3. Remove the CR Scale from the hook ( ) on the right side of the Main
Frame.
4. Pull out the CR Scale from the slit of the CR Unit.
5. Turn the CR Scale 90 degrees in the direction of the arrow, and remove the
CR Scale from the hook.
Figure 1-55. Removing the CR Scale
C A U T I O N
During the disassembly/reassembly of the Printer Mechanism,
take extra care not to touch the CR Scale with bare hands, and not
to contaminate or scratch it.
C H E C K
P O I N T
See the section given below on how to unlock the carriage.
•
“1.1.6 How to Unlock the Carriage”
CR Scale
Turn 90°
Extension Spring
Slit
Hook
Install the CR Scale with its cut-corner facing upward. Hitch one end
of the Torsion Spring to the hole of the CR Scale from the back side of
the CR Scale.
Figure 1-56. Reinstalling the CR Scale
Cut-corner
Hitch from the back side
Hook
To Next Page
