Epson L800 Service Manual

L800/L801 Revision A
Disassembly/Reassembly CDR Tray Sensor 60
Confidential
1.5.18 CDR Tray Sensor
¸ Removal procedure
1. Disengage the hook of the CDR Tray Sensor.
2. Turn the CDR Tray Sensor 90 degrees in the direction of the arrow to
disengage its another hook, and pull it out from the hole to remove it together
with the CDR Guide Sensor.

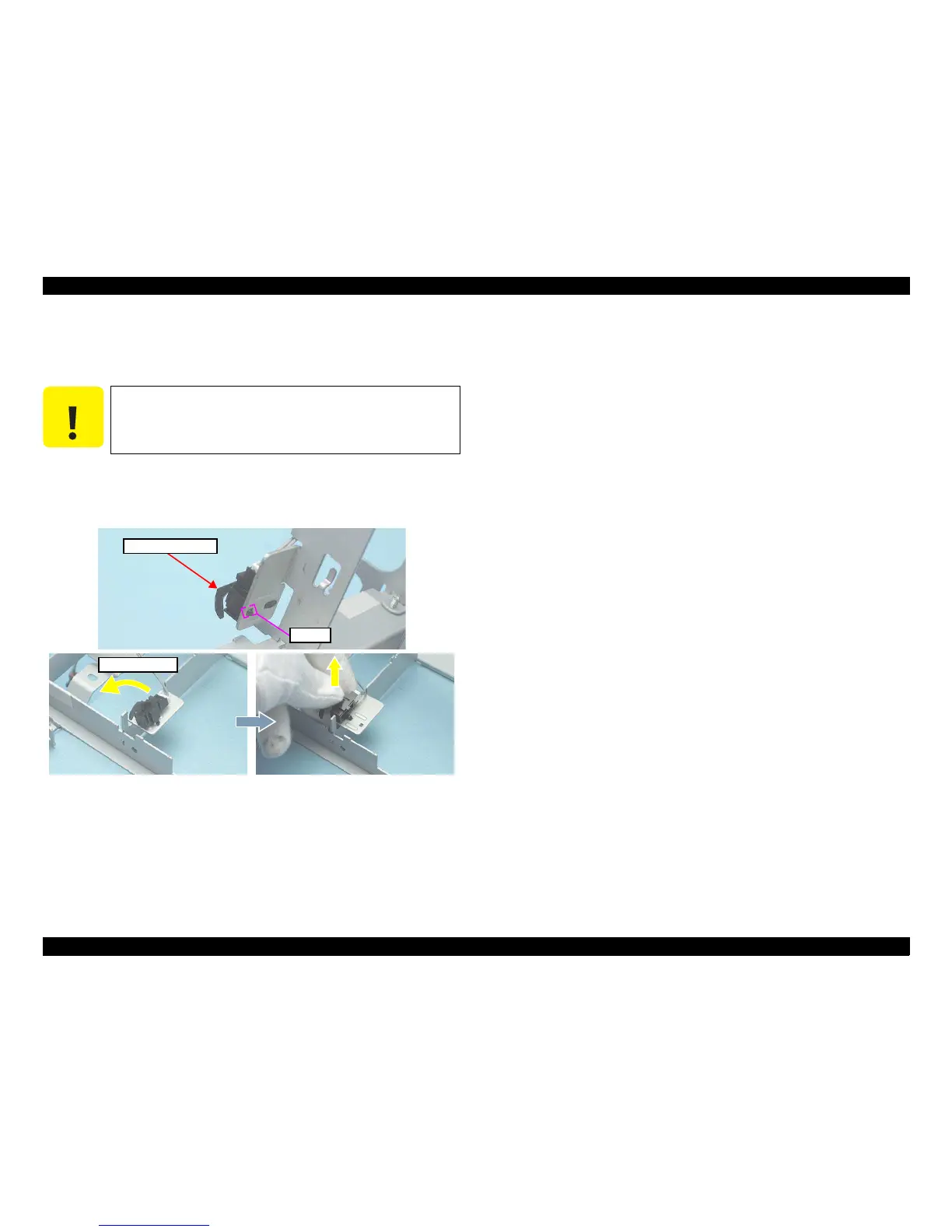

Figure 1-115. Removing the CDR Tray Sensor
C A U T I O N
Always follow the steps below to remove the CDR Tray Sensor, or
one of its hooks can be broken.
90-degrees Turn
Hook
CDR Tray Sensor

Epson L800 Specifications

General

Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (10x15 cm)	12 s
Print speed (black, draft quality, A4/US Letter)	37 ppm
Print speed (color, draft quality, A4/US Letter)	38 ppm
Printing sizes	10 x 15 cm
Maximum print size	216 x 356 mm
ISO A-series sizes (A0...A9)	A4, A6
Photo paper sizes (imperial)	4x6, 8x10 \
Total input capacity	120 sheets
Product color	Black
Built-in display	No
Market positioning	Home & office
Number of printing colors	6
USB port	Yes
Direct printing	-
USB 2.0 ports quantity	1
AC input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	13 W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Connectivity technology	Wired
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	289 mm
Width	537 mm
Height	188 mm
