Epson LX-1170 User Manual

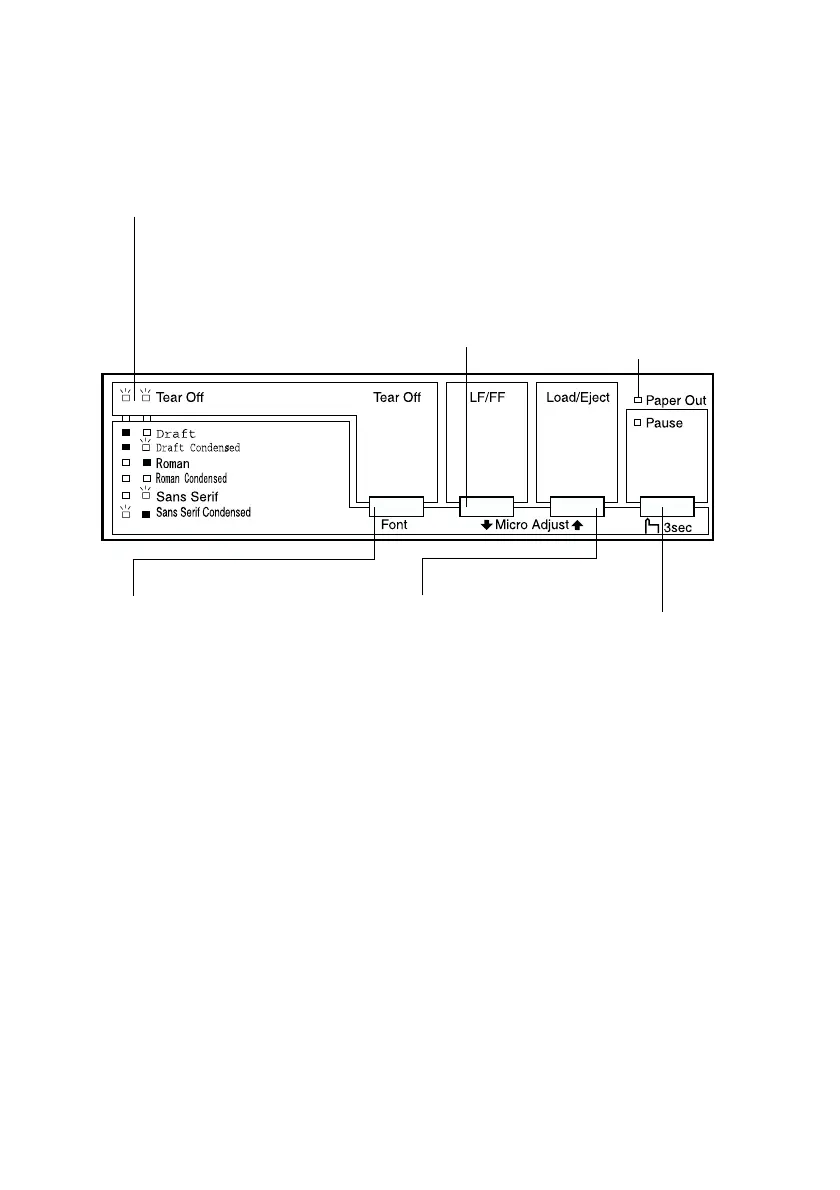

Control Panel Buttons and Lights
Tear Off (Font) button**
●
Advances continuous paper to
the tear-off position.
●
Feeds continuous paper
backward from the tear-off
position to the top-of-form
position.
*Micro Adjust mode
When you hold down the Pause button for three
seconds, the printer enters the micro adjust mode. In this
mode, you can press the LF/FFD and Load/EjectU
buttons to adjust the top-of-form or tear-off position. See
Chapter 2, “Using the Printer.”
**Font select
In the Micro Adjust mode, you can select the font to use
for printing by pressing the Tear Off button. The Tear Off
lights turn on, off or flash to indicate the selected font.
Pause button
Stops printing
temporarily, and
resumes printing when
pressed again. When
pressed for three
seconds, turns on the
Micro Adjust mode*. To
turn off, press again.
Pause light
●
On when the printer
is paused.
●
Flashes when the
printer is in the Micro
Adjust mode*.
●
Flashes when the
print head has
overheated.
Paper Out light
●
On when no paper
is loaded in the
selected paper
source or when
paper is not
loaded correctly.
●
Flashes when
paper has not
been fully ejected
or a paper jam has
occurred.
LF/FF button
●
Feeds paper line
by line when
pressed and
released.
●
Ejects a single
sheet or advances
continuous paper
to the next
top-of-form
position when held
down.
Load/Eject button
●
Loads a single sheet
of paper.
●
Ejects a single sheet
of paper if a sheet is
loaded.
●
Loads continuous
paper from the
standby position.
●
Feeds continuous
paper backwards to
the standby position.
Tear Off (Font) lights**
●
Flash when continuous paper is in
the tear-off position; otherwise, the
lights indicate the selected font.

Epson LX-1170 Specifications

Print Speed

high speed draft 15 CPI	337 cps
high speed draft 12 CPI	337 cps
high speed draft 10 CPI	300 cps
high speed draft 20 CPI condensed	300 cps
high speed draft 17 CPI condensed	321 cps

Power

rated voltage	AC 120V or AC 220~240V
rated frequency	50~60Hz
power consumption	23W

Environmental Conditions

temperature	5~35˚C
humidity	10~80% RH
acoustic noise	49dB (A)

Reliability

MVBF (Mean Print Volume Between Failure)	12 million lines
MTBF (Mean Time Between Failure)	6000 POH
print head life	400 million strokes/ wire

Weight and Dimensions

width	546 mm
depth	275 mm
height	163 mm
weight	6.3 kg
