Using the Printer

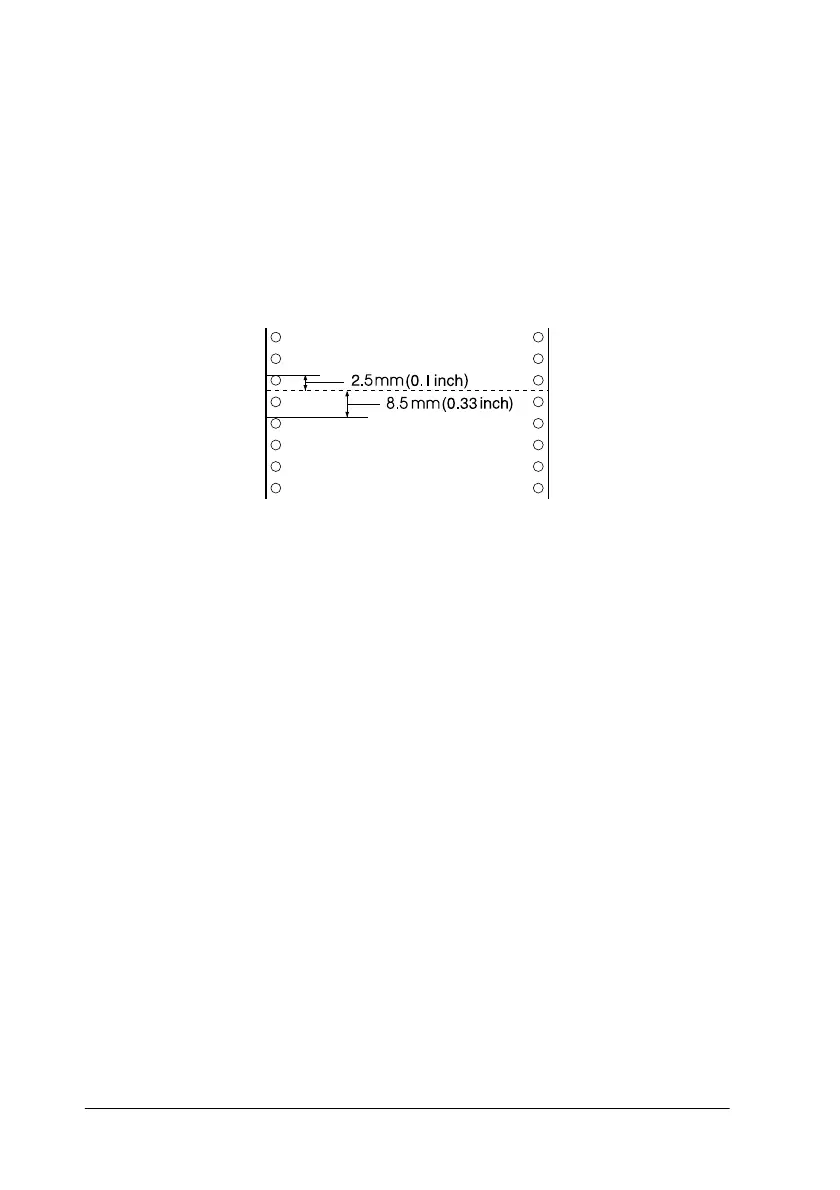

First mark a point 2.5 mm (0.1 inch) above the paper’s
perforation; then position the paper so that the mark is even
with the top edge of the plastic ribbon cover. This gives you
an 8.5 mm (0.33 inch) margin on the next page, meaning the
printer starts printing 8.5 mm (0.33 inch) below the
perforation. If you mark a point 5.5 mm (0.22 inch) above the
perforation, you get a 5.5 mm (0.22 inch) margin on the next
page.
6. After you set the top-of-form position, press the Pause button
to exit the Micro Adjust mode.
Advancing the paper to the tear-off edge
If you use the push tractor, you can use the tear-off feature to
advance your continuous paper to the printer’s tear-off edge
when you finish printing. You can then easily tear off the printed
document. When you resume printing, the printer automatically
feeds the paper back to the top-of-form position so that you can
save the paper normally lost between documents.
As described below, you can use the tear-off feature in two ways:
manually, by pressing the printer’s Tear Off button, or
automatically, by turning on the auto tear-off mode.
c
Caution:
Never use the tear-off feature (as described below) to feed
continuous paper with labels backwards; they may come off their
backing sheet and jam the printer.

Epson LX-1170 Specifications

Print Speed

high speed draft 15 CPI	337 cps
high speed draft 12 CPI	337 cps
high speed draft 10 CPI	300 cps
high speed draft 20 CPI condensed	300 cps
high speed draft 17 CPI condensed	321 cps

Power

rated voltage	AC 120V or AC 220~240V
rated frequency	50~60Hz
power consumption	23W

Environmental Conditions

temperature	5~35˚C
humidity	10~80% RH
acoustic noise	49dB (A)

Reliability

MVBF (Mean Print Volume Between Failure)	12 million lines
MTBF (Mean Time Between Failure)	6000 POH
print head life	400 million strokes/ wire

Weight and Dimensions

width	546 mm
depth	275 mm
height	163 mm
weight	6.3 kg
