Epson LX-1170

1-10
Setting Up the Printer

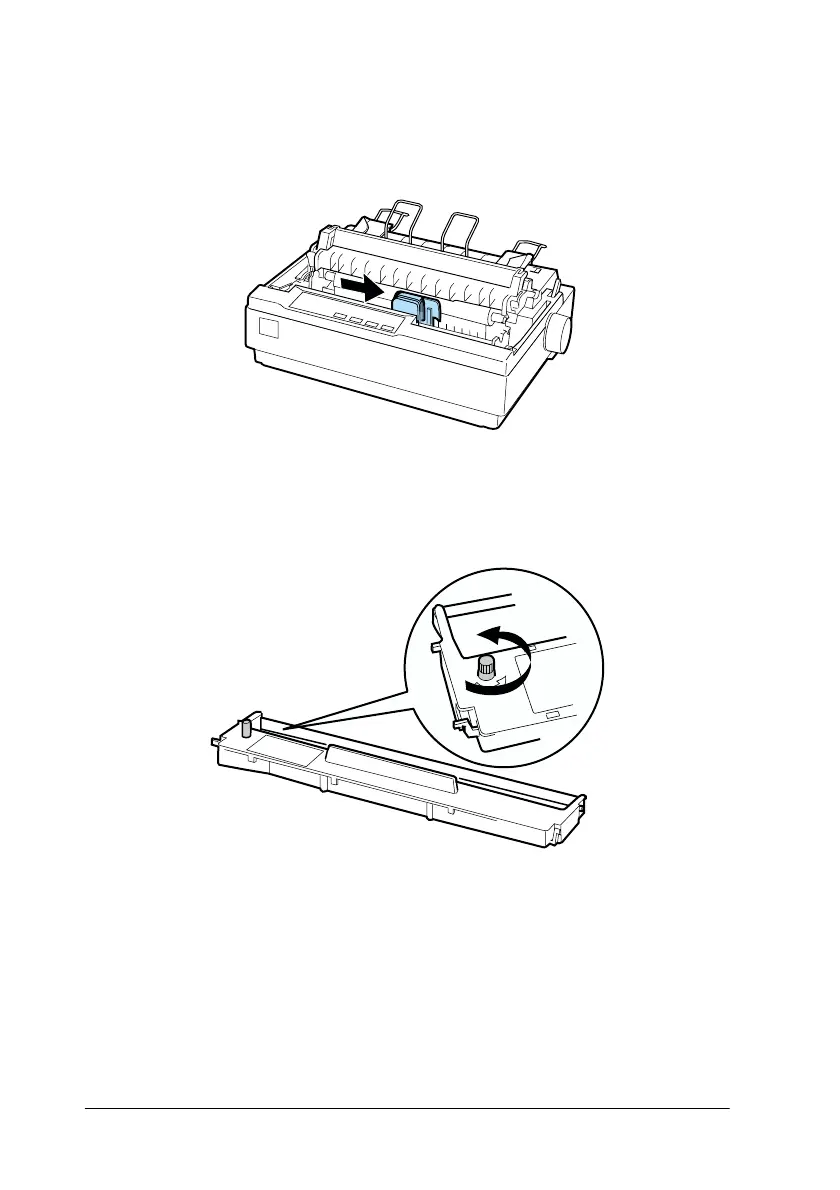

4. Make sure that the print head is in position at 10 cm (4 inches)
from the left side. If it is not, turn on the printer, and then, turn
off the printer.
5. Turn the ribbon-tightening knob in the direction of the arrow
to remove any slack from the ribbon so it is easier to install.
