Note:
Remove any remaining slack by gently pulling the paper from the
rear or bottom.

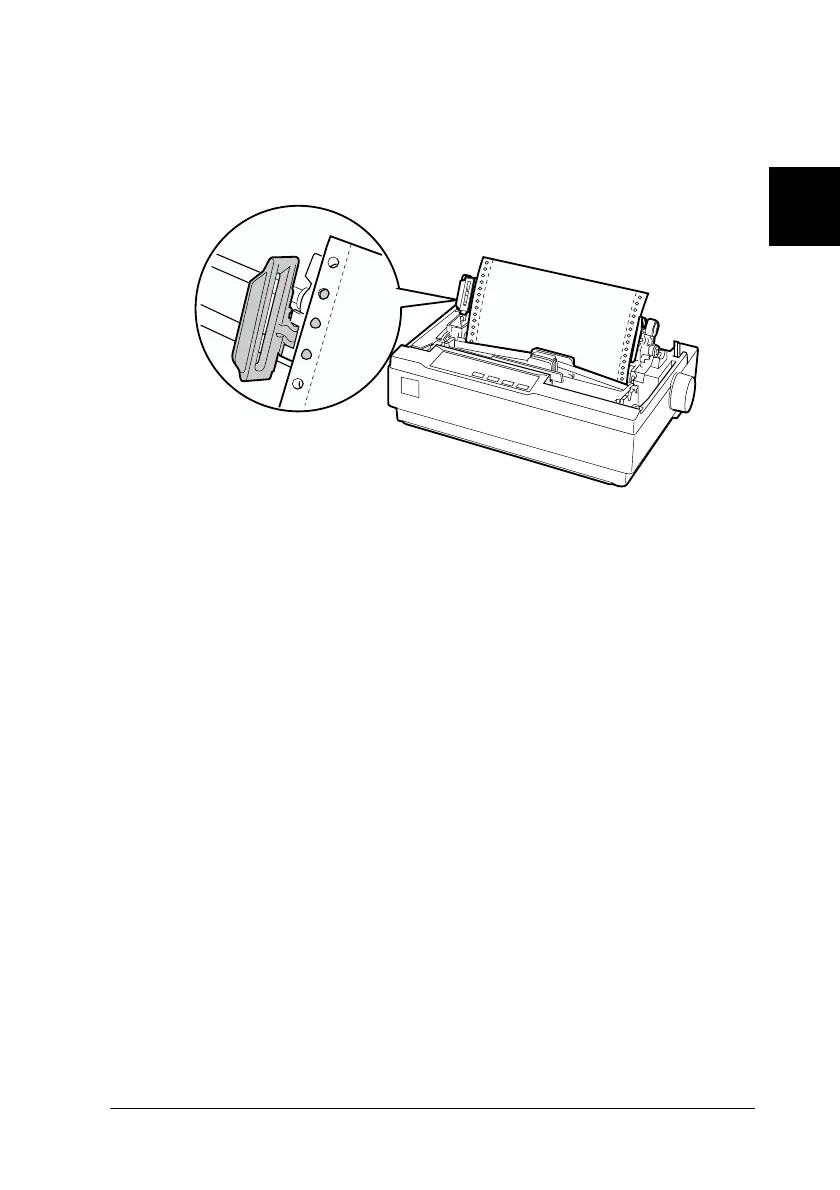

8. To separate the incoming paper from the printed paper, attach
the paper guide. Hold it horizontally and fit its notches over
the printer’s mounting posts. Then slide the paper guide
toward the back of the printer until you feel it click.
9. Attach the printer cover and adjust the paper position with
the paper-feed knob. Turn the knob until the perforation
between pages is just above the print head. Then turn on the
printer.
10. Make sure the printer cover is closed, but with the paper guide
cover open. When the printer receives data, it begins printing
automatically.
If you want to change the position where printing begins on the
page, press LF/FF to advance the page to the next top-of-form
position, and then see “Adjusting the top-of-form position” in the
next section to adjust the loading position.
To eject the paper, tear off the paper entering the printer; then
press the LF/FF button to feed the paper forward.

Epson LX-1170 Specifications

Print Speed

high speed draft 15 CPI	337 cps
high speed draft 12 CPI	337 cps
high speed draft 10 CPI	300 cps
high speed draft 20 CPI condensed	300 cps
high speed draft 17 CPI condensed	321 cps

Power

rated voltage	AC 120V or AC 220~240V
rated frequency	50~60Hz
power consumption	23W

Environmental Conditions

temperature	5~35˚C
humidity	10~80% RH
acoustic noise	49dB (A)

Reliability

MVBF (Mean Print Volume Between Failure)	12 million lines
MTBF (Mean Time Between Failure)	6000 POH
print head life	400 million strokes/ wire

Weight and Dimensions

width	546 mm
depth	275 mm
height	163 mm
weight	6.3 kg
