Using the Printer
7. Take a stack of paper and fan it. Next, tap the side and bottom
of the paper on a flat surface to even up the stack.
c
Caution:
Do not use envelopes, multipart forms, carbon paper, or
labels in the cut-sheet feeder.
8. Insert up to 50 sheets of paper along the left paper guide.
9. Adjust the position of the right paper guide so that it matches
your paper’s width. Make sure the position of the guide
allows the paper to move up and down freely.
10. Push the paper-set levers back to clamp the paper against the
guide rollers.
11. Remove the paper supports from the edge guides. Insert the
two stacker supports packed with the cut-sheet feeder into the
holes on the edge guides.

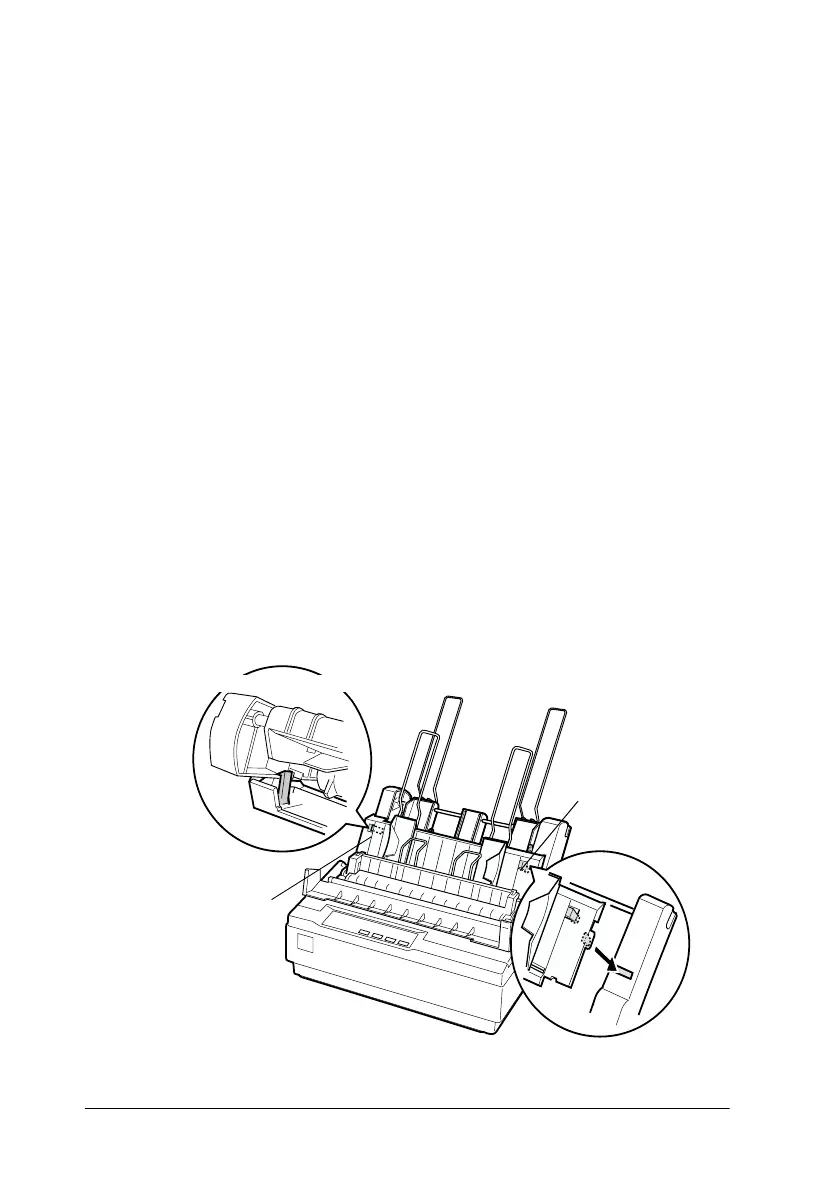

12. Attach the paper guide to the cut-sheet feeder as shown
below.
View from above
Release tab
Release tab

Epson LX-1170 Specifications

Print Speed

high speed draft 15 CPI	337 cps
high speed draft 12 CPI	337 cps
high speed draft 10 CPI	300 cps
high speed draft 20 CPI condensed	300 cps
high speed draft 17 CPI condensed	321 cps

Power

rated voltage	AC 120V or AC 220~240V
rated frequency	50~60Hz
power consumption	23W

Environmental Conditions

temperature	5~35˚C
humidity	10~80% RH
acoustic noise	49dB (A)

Reliability

MVBF (Mean Print Volume Between Failure)	12 million lines
MTBF (Mean Time Between Failure)	6000 POH
print head life	400 million strokes/ wire

Weight and Dimensions

width	546 mm
depth	275 mm
height	163 mm
weight	6.3 kg
