2.1.3 Screws Used in Disassembly and Reassembly
The screws used in this chapter are indicated below. When reassembling this product,
do the work after fully confirming the screw types and the number of screws to be used
in each section. (Refer to Tables 2-2 and 2-3.)
Table 2-2. Abbreviations of Screws
Abbreviation Part Name
CBP Cross Recessed Binding Head P Tite Screw
CBB Cross Recessed Binding Head B Tite Screw

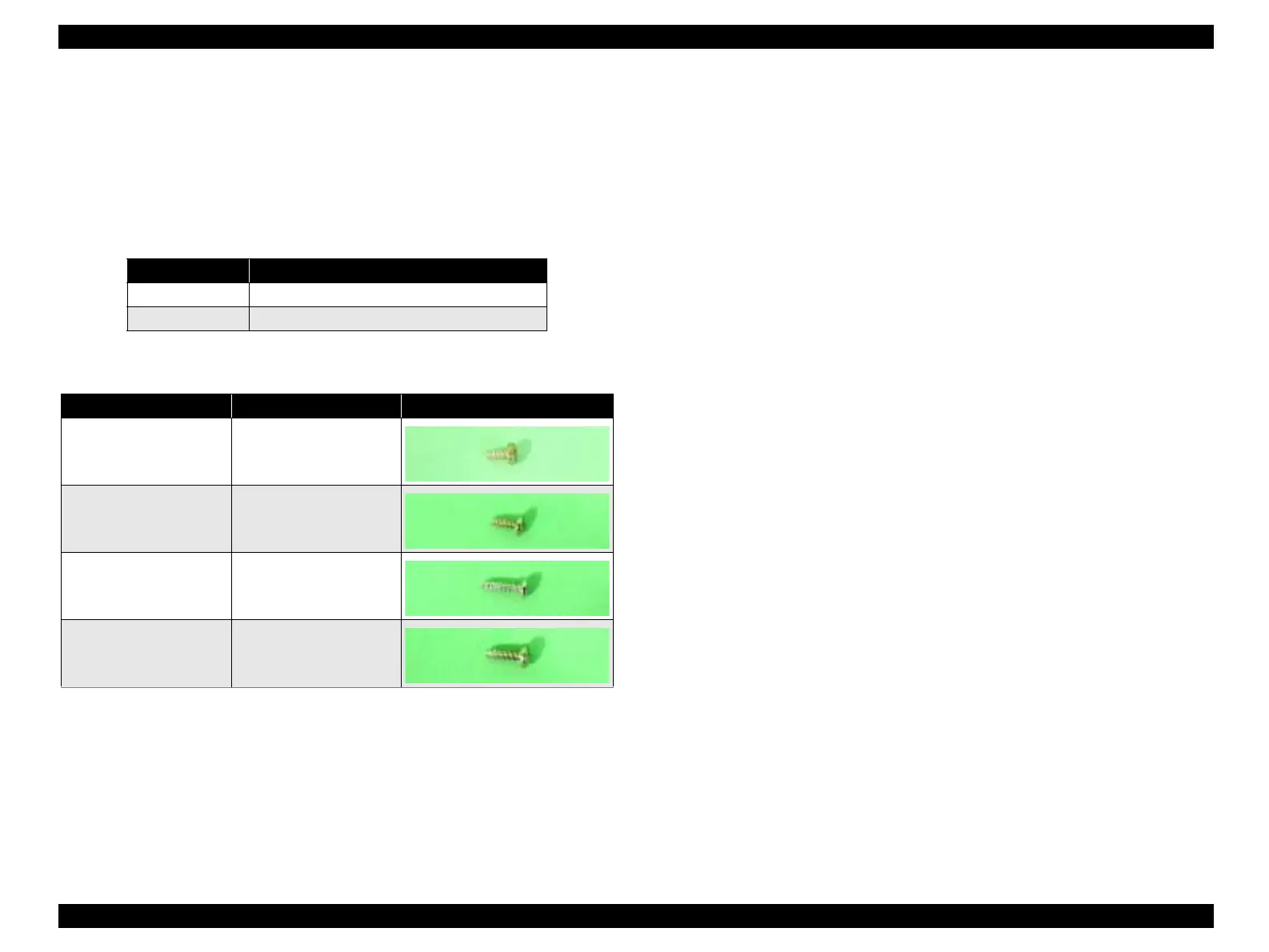

Table 2-3. Used Screw List
No.
Standard Outline
1 CBB (M3x6)
2 CBP (M3x8)
3 CBB (M3x12)
4 CBP (M4x12)
