Epson Perfection 1270 - Removal of Carriage Unit

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 19
2.2.4 Removal of Carriage Unit
1. Unlock the Carriage Lock at the bottom of the Main Unit.
2. Remove the Upper Housing. (Refer to 2.2.2)
3. Remove the I/F Board. (Refer to 2.2.3)
4. Move the Carriage Unit to the center.
5. Remove the two screws (CBP M3x8) that are securing the FFC Stop Plate.

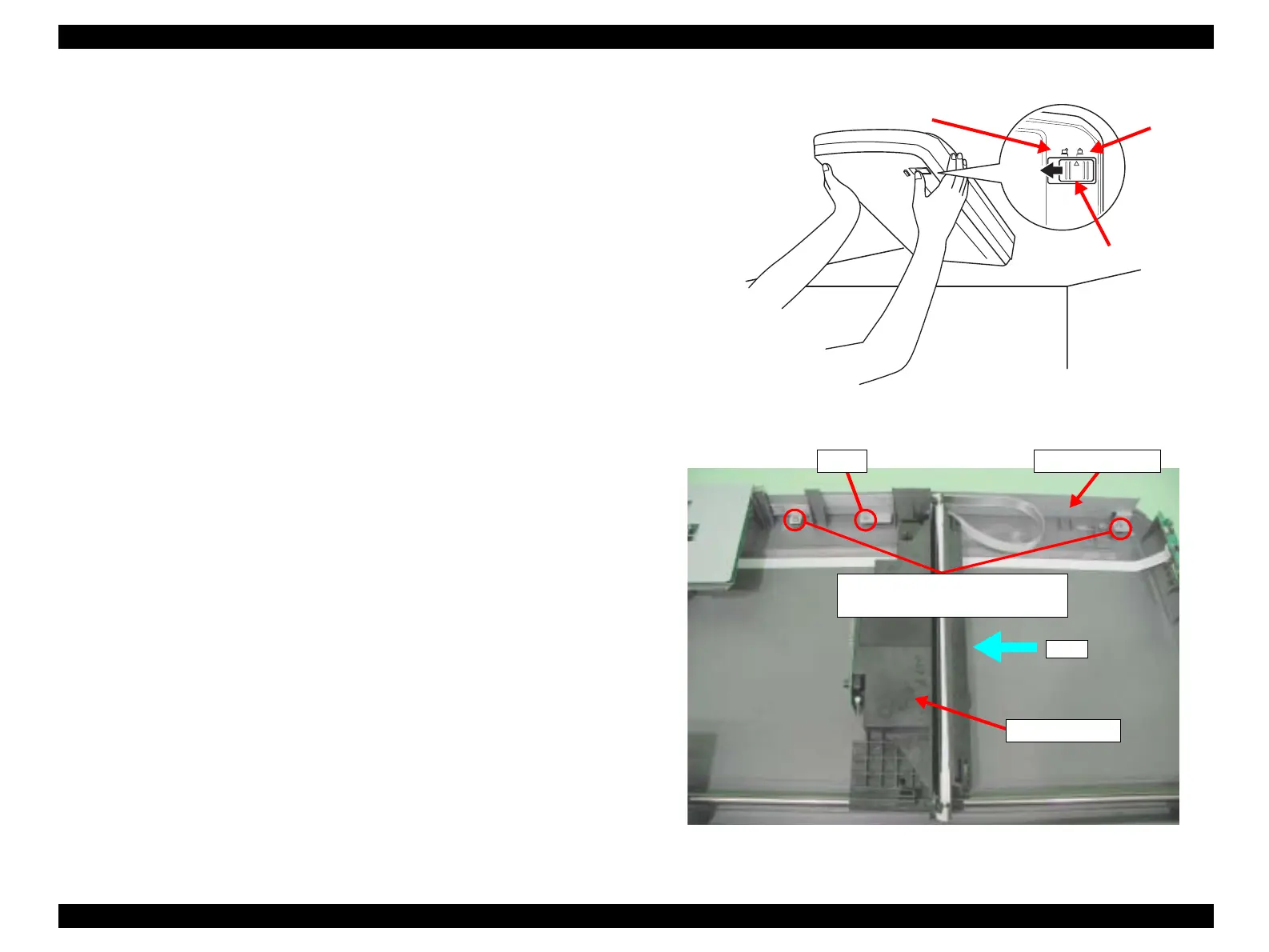

Figure 2-12. Unlocking of Carriage Lock
Figure 2-13. Screws That Are Securing FFC Stop Plate
Unlocking position
Locking
position
Carriage Lock
Step 4
Boss
CBP (M3x6)
Tightening torque 6-8kgfcm
FFC Stop Plate
Carriage Unit
