Epson Perfection 1270 - Removal of Panel Board

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 24
2.2.6 Removal of Panel Board
1. Unlock the Carriage Lock at the bottom of the Main Unit. (Refer to Figure 2-12.)
2. Remove the Upper Housing. (Refer to 2.2.2)
3. Move the Carriage Unit to the center.
4. Pick up Portion A of the Panel Board, lift it to the front, and turn it in the direction
shown in Figure 2-22 to remove the Panel Board.
5. Disconnect the Panel FFC from the Panel Board.

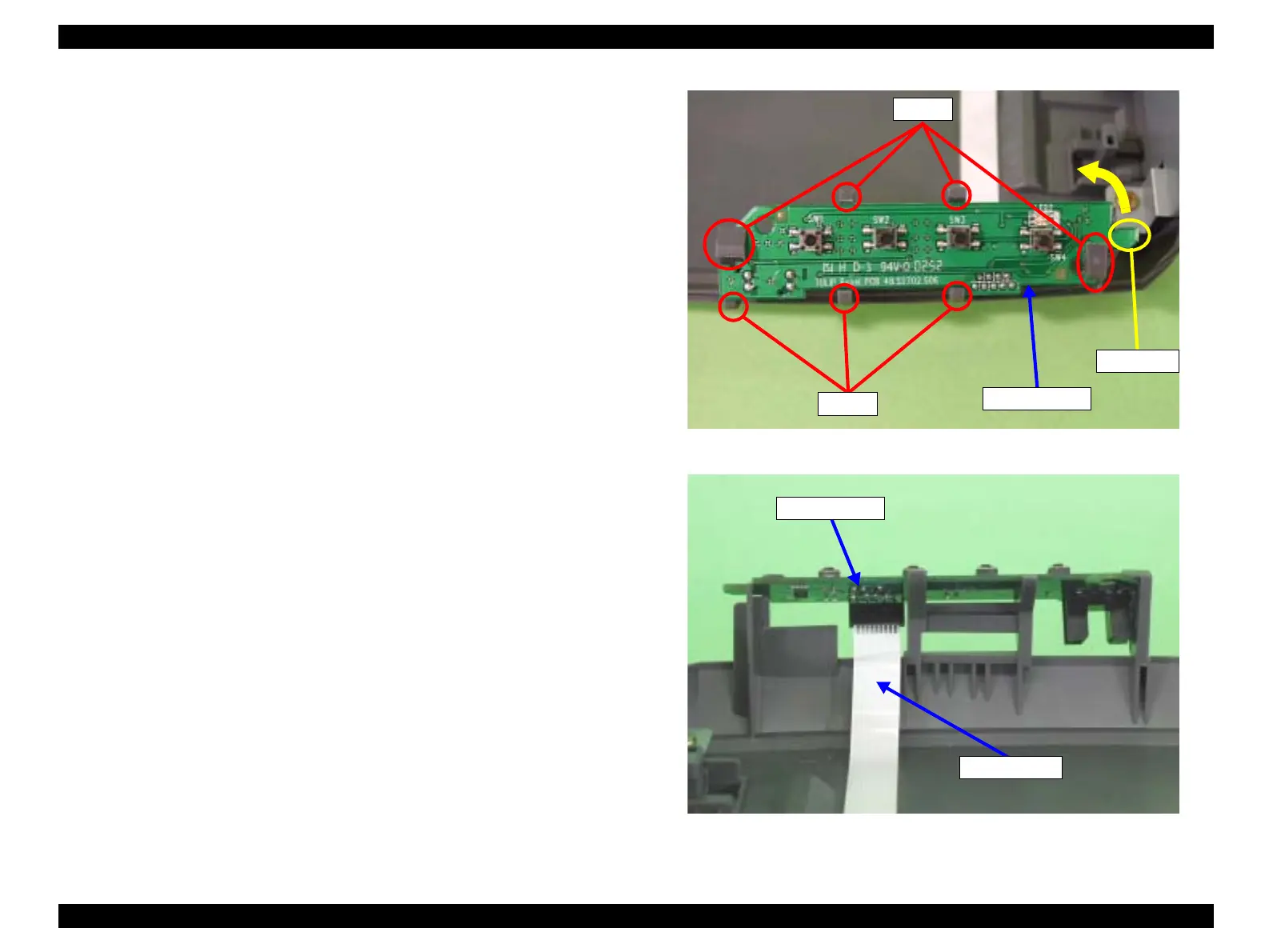

Figure 2-22. Removal of Panel Board (1)
Figure 2-23. Removal of Panel Board (2)
Panel Board
Portion A
Hooks
Hooks
Panel FFC
Panel Board
