Epson Perfection 1270 - Removal of Hinge Holders

EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 28
2.2.9 Removal of Hinge Holders
1. Remove the TPU Inverter Unit. (Refer to 2.2.8)
2. Remove the two screws (CBP M4x12) that are securing each of the Hinge Holders.
3. Turn the Hinge Holders to the outside, and draw and remove the shafts of the Hinge
Holders from the TPU Unit.

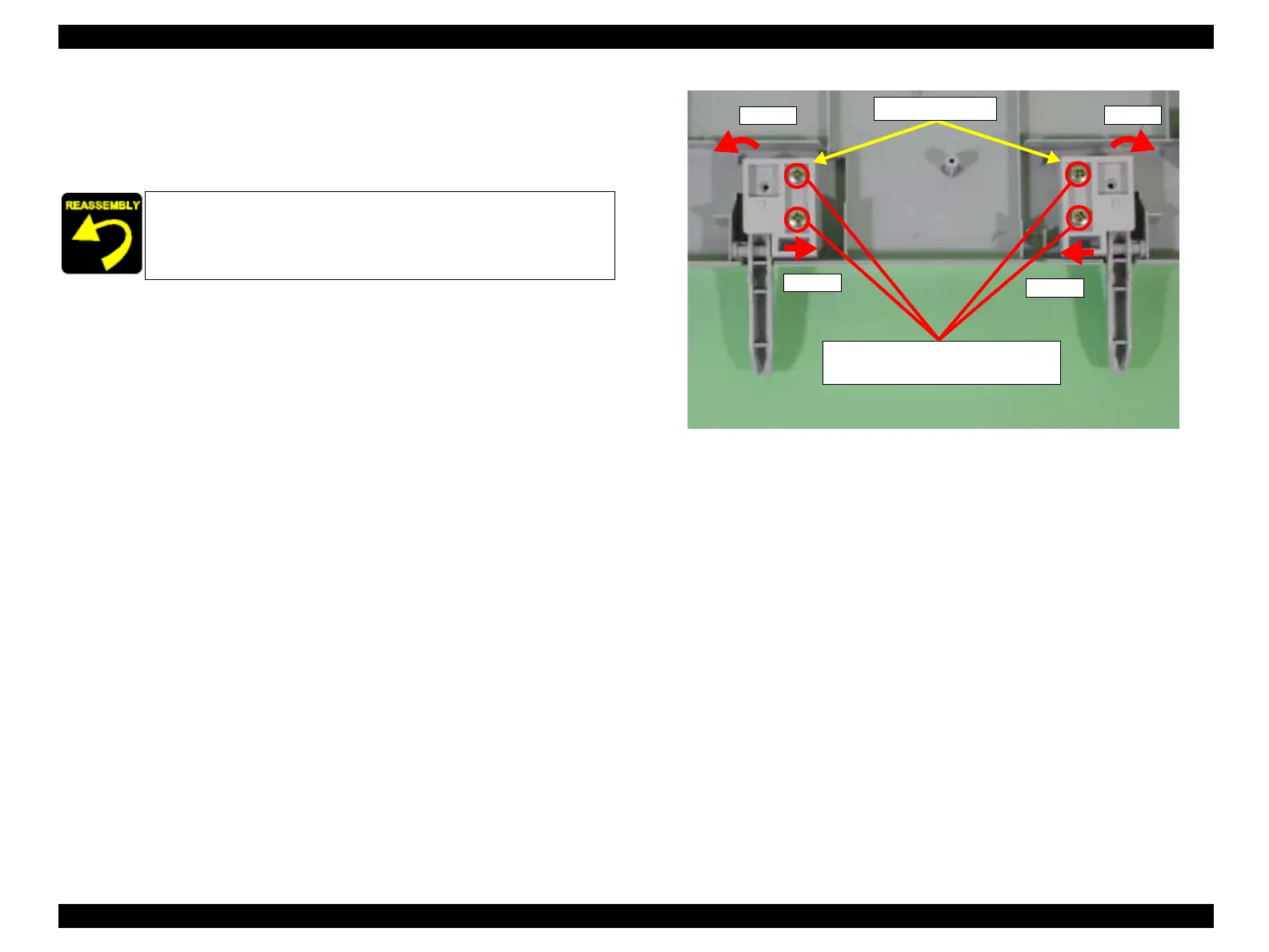

Figure 2-30. Removal of Hinge Holders
Reinstall the R-marked Hinge Holder on the right side and the L-
marked one on the left side.
CBP (M4x12)
Tightening torque 8-10kgfcm
Hinge Holders
Step 3-1)
Step 3-1)
Step 3-2)
Step 3-2)
