EPSON Perfection 1670 Photo/Perfection 1270 Revision B
DISASSEMBLY/ASSEMBLY Disassembly Procedure 20
6. Remove the Ferrite Core from the Lower Housing (note that the Ferrite Core is secured
by a double-faced tape).
7. Twist and lift the FFC Stop Plate to the outside. Slide it to the rear as-is, and remove it
diagonally upward.

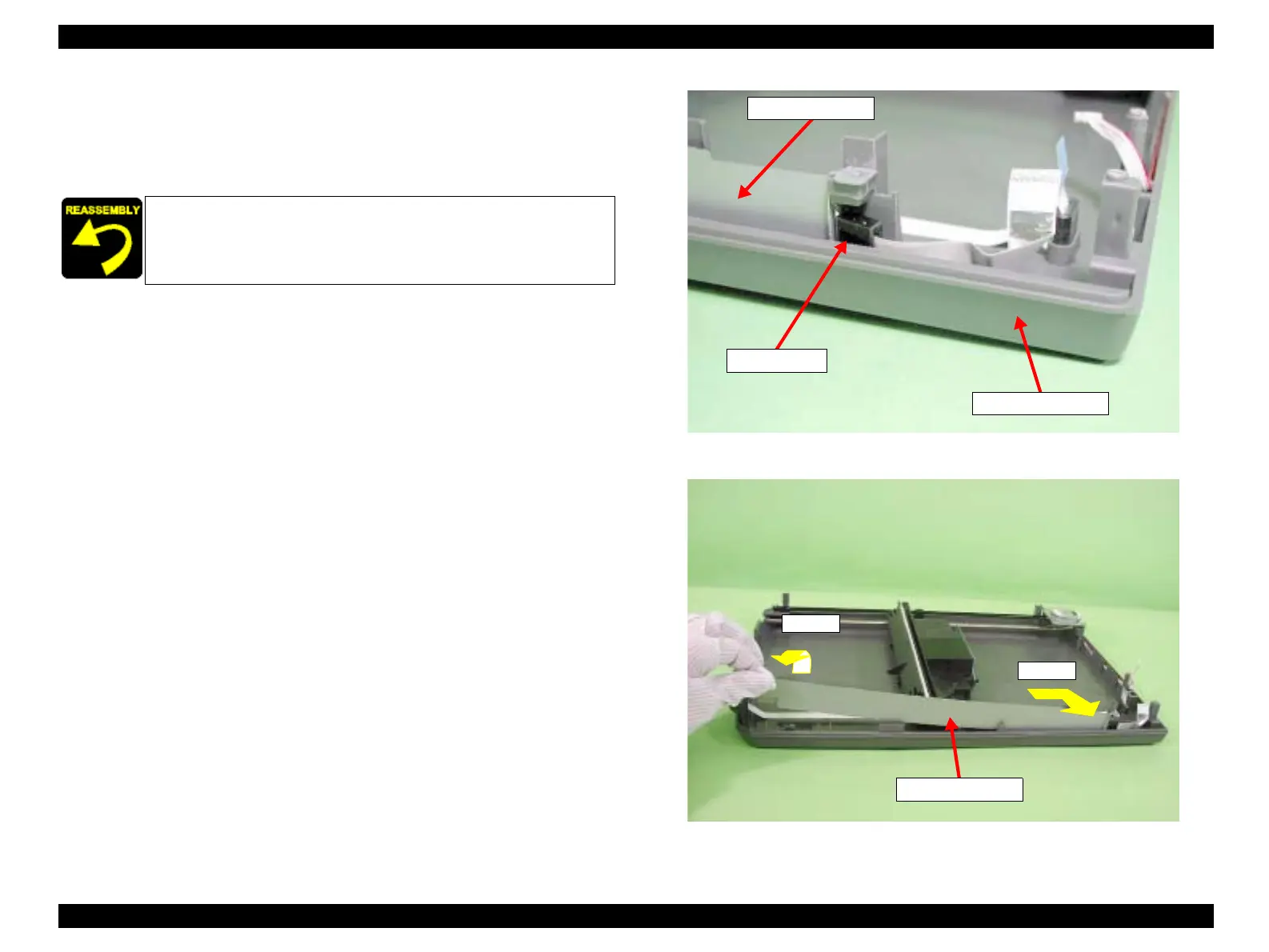

Figure 2-14. Peeling of Ferrite Core
Figure 2-15. Removal of FFC Stop Plate
Reinstall so that the Boss of the Lower Housing matches the notch of
the FFC Stop Plate. (Refer to Figure 2-13.)
Ferrite Core
Lower Housing
FFC Stop Plate
Step 7-1)
Step 7-2)
FFC Stop Plate
To Next Page
