Epson PowerLite 1880 User Manual

Using Multi-Screen Display
25
s "Adjusting the Virtual Display" p.25
A Click Start, select Programs (or All Programs), EPSON
Projector, EasyMP Network Projection, and then click
Add-Remove Virtual Display.

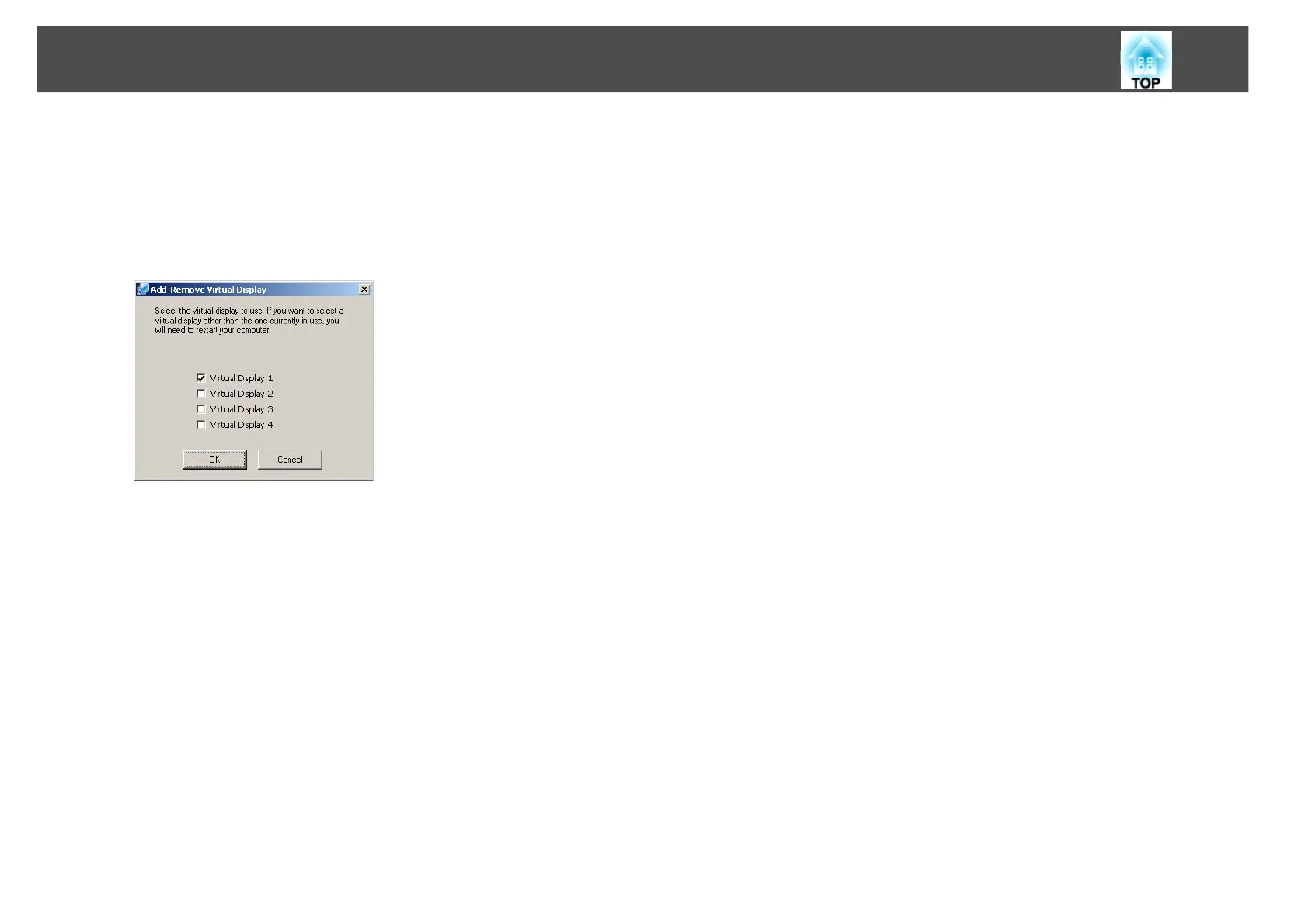

The Add-Remove EPSON Virtual Display screen is displayed.
B Select the virtual display you want to use.
Up to four monitors can be added. In this example, a single virtual
display is to be used. When setting multiple virtual displays, select
as many displays as necessary.
Any one of the displays can be selected.
C Click OK.
When you click OK, the drivers for the virtual display are enabled.
At this point, it is normal for the display to flicker. Wait for the
Add-Remove Virtual Display screen to close.
Adjusting the Virtual Display
After starting EasyMP Network Projection, the procedure for setting up
the virtual displays differs for Windows and Mac OS. The procedures are
explained separately below.
For Windows
A Click Start, select Programs (or All Programs), EPSON
Projector, EasyMP Network Projection, and then click
EasyMP Network Projection V2.XX to start EasyMP Network
Projection.
B Select Advanced Connection Mode, and then click OK.

Epson PowerLite 1880 Specifications

Projection System

projection system	Epson 3LCD, 3-chip technology
native resolution	1024 x 768 (XGA)
color light output	4000 lumens

Power

power supply voltage	100 – 240 V ± 10%, 50/60 Hz AC
power consumption (normal mode)	381 W
power consumption (eco mode)	309 W

Lamp

lamp type	275 W UHE E-TORL
lamp life (normal mode)	3000 hours
lamp life (eco mode)	4000 hours

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	39 dB
fan noise (eco mode)	35 dB

Projection Lens

f-number	1.51 – 1.99
focal length	18.2mm – 29.2mm
zoom ratio	optical zoom 1.0 – 1.6

Weight and Dimensions

dimensions including feet	13.5" x 10.3" x 4.2"
dimensions excluding feet	13.5" x 10.3" x 3.6"
weight	7.4 lb
