Part Names and Functions
Before Using the Projector
Part Names and Functions

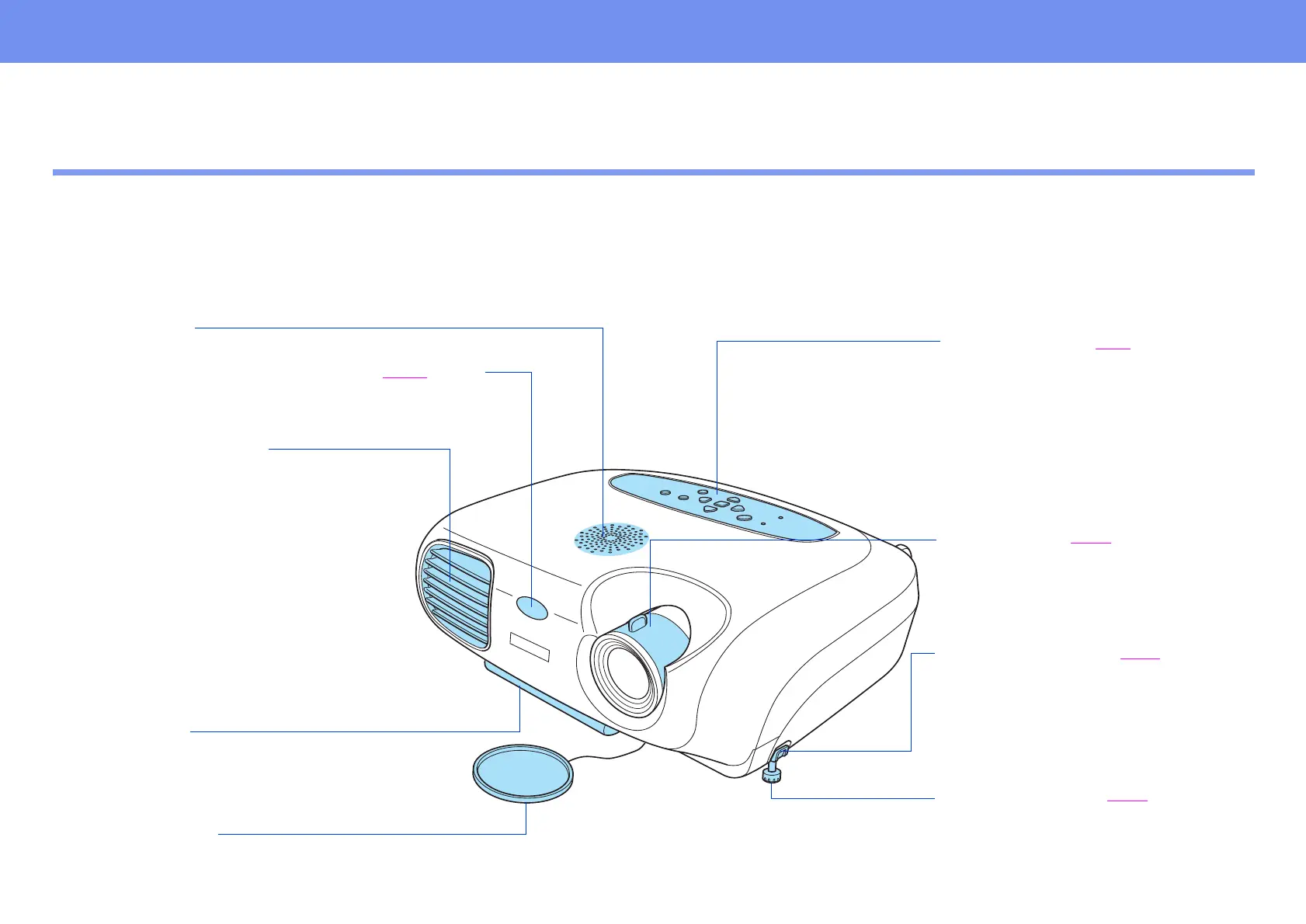

Front/Top
• remote control infrared receiver s P. 11
Receives signals from the remote control.
• ventilation outlet
• lens cover
Attach when not using the projector to prevent the
lens from becoming dirty or damaged.
• focus ring s P.25
Adjusts the image focus.
• front foot (left) s P.26
Another front foot is located on the
right side.
Extend and retract to adjust the
projection angle.
• foot button (left) s P.26
Another foot button is located on the
right side.
Press both buttons when extending
and retracting the front feet.
• speaker
• handle
Pull out this handle to use when
carrying the projector.
• control panel s P. 7
