Part Names and Functions

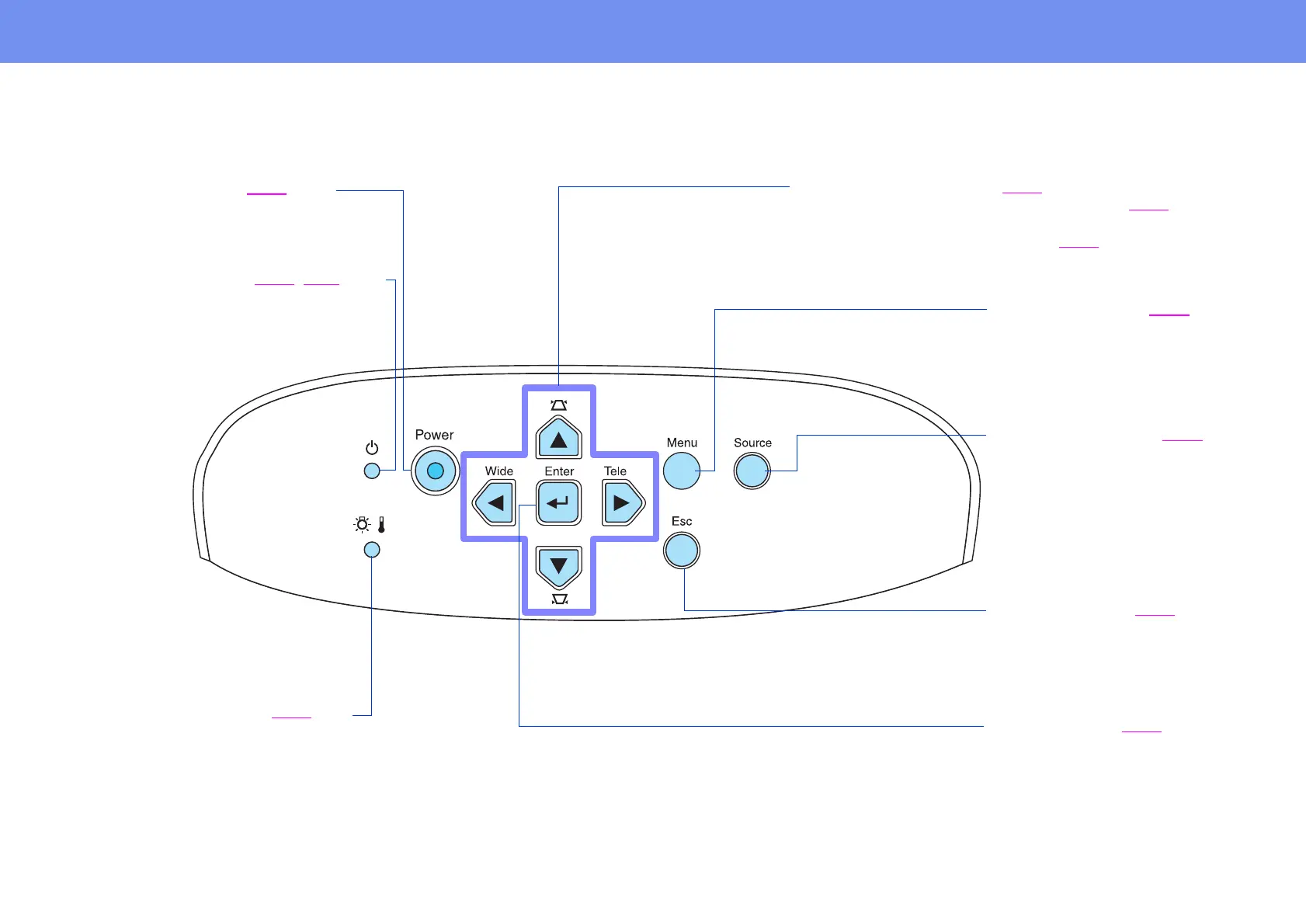

Control panel
• [Power] button s P.22
Turns the projector on and off.
• Power indicator s P.22
, P.43
Flashes or lights in different colors to
indicate the operating status of the
projector.
• [u][d][l][r] buttons s P.33
• [u][d]: keystone correction buttons s P.27
Press to correct keystone distortion in images.
• [Wide][Tele]: zoom buttons s P.25
• Warning indicator s P.44
Flashes or lights in different colors to
alert you to problems with the projector.
• [Menu] button s P.32
Displays or hides the
configuration menus.
• [Source] button s P.28
Switches the input source
between the Computer/
Component Video port,
S-Video port and Video port
each time the button is pressed.
• [e] button s P.34
Accepts a menu item or
advances to the next screen or
menu when viewing
configuration menus.
• [Esc] button s P.35
Stops the current function.
Displays the previous screen or
menu when viewing
configuration menus.
