Inserting SIMMs
Follow these steps to install SIMMs:
1.
2.
3.
4.
Refer to the illustration on page 3-5 to locate the SIMM
sockets.
Remove any option cards that may be blocking your access
to the SIMM sockets. (See page 3-16 for instructions.)
Turn the computer around so the back panel is facing you.

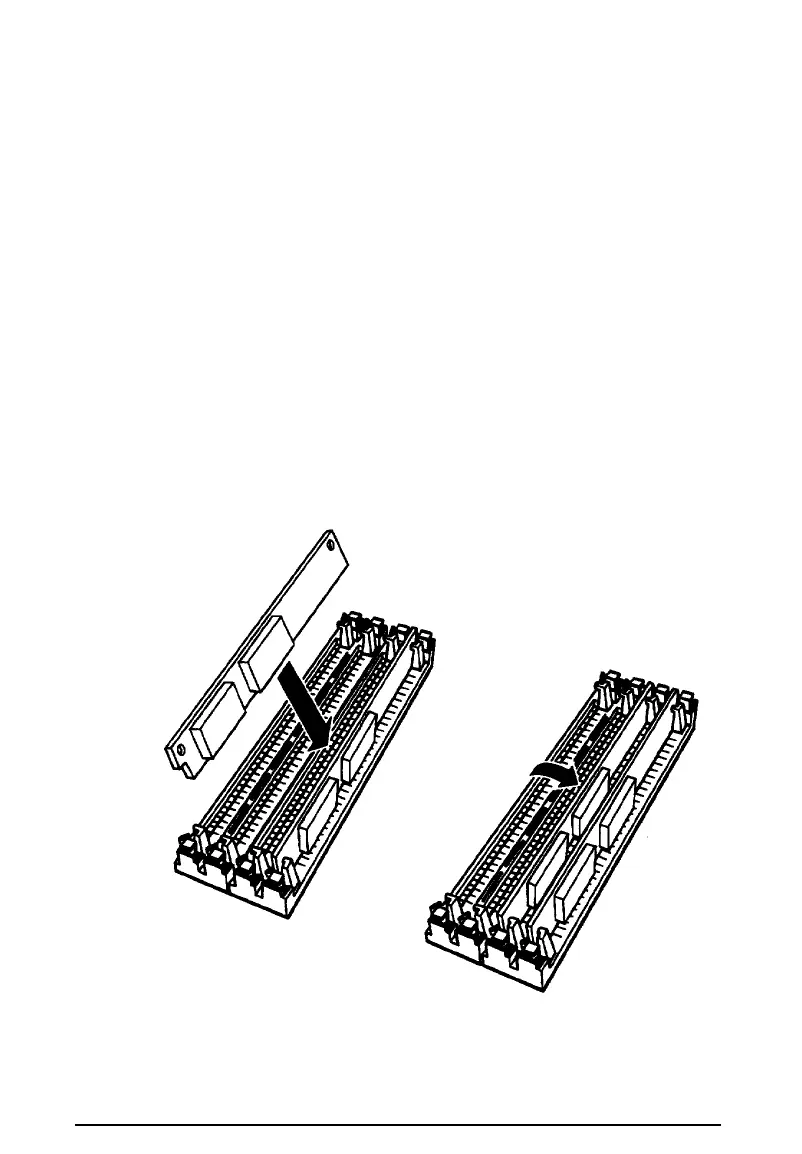

Position the first SIMM at an angle over the first empty
socket in the bank you are filling, as shown below. The
components on the SIMM should face the inside of the
computer.
3-10 Installing and Removing Options
