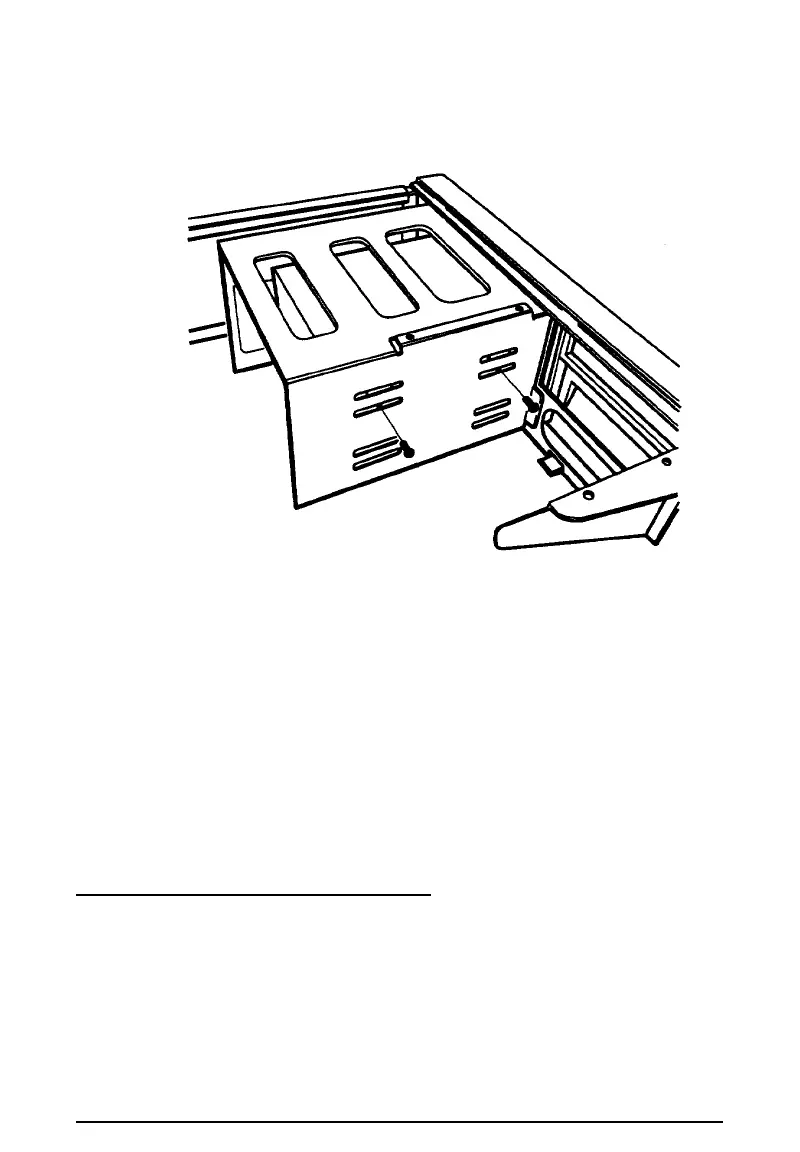

3. Remove the two screws securing the drive on each side.
4.
5.
6.
Reach behind the drive and gently push it to the front of the
bay; then pull it out of the slot.
Once you have removed the drive, replace the faceplate by
inserting one side of the plate, then gently pressing on the
other side until it snaps into place.
Replace the diskette drive and mounting bracket and
reconnect the cables. See page 4-8 for instructions.
Post-installation Procedures
After you install or remove your drive(s) and replace the cover
on your computer, you need to run the SETUP program to
define the correct configuration for your newly installed drive.
See Chapter 1 for instructions.
4-22
Installing and Removing Drives
