Epson RC700 User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
160 RC700 / RC700-A Rev.23

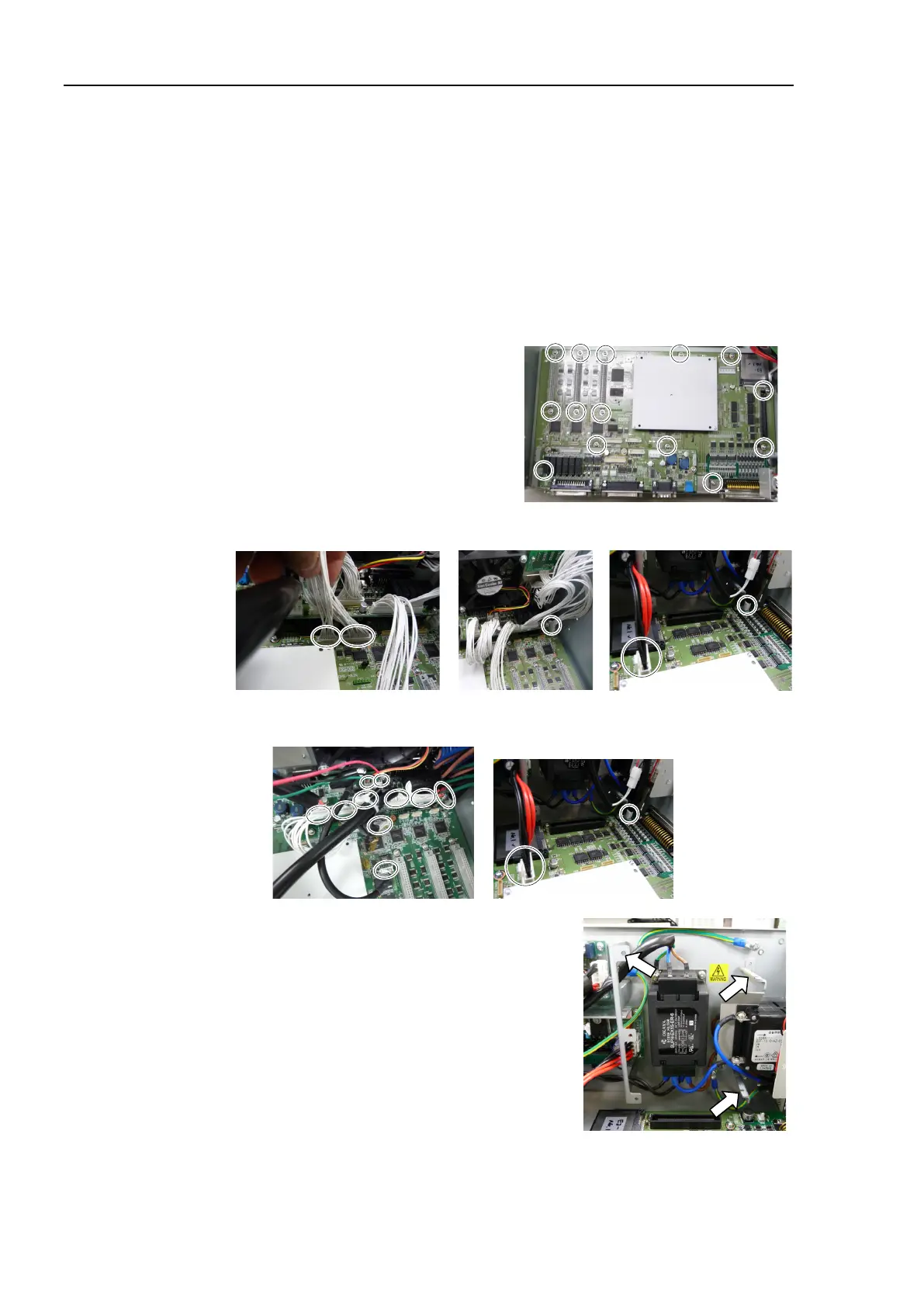

DMB
Installation
(1)
Install the DMB
-SUB board to the new DMB. (Mounting screw ×3)
(2)
Install the plate
that secures
the connectors on the front side to the DMB and the
DMB
-SUB boards.
(3)
Insert the DMB into the chassis.
At this point, be careful not to touch the chassis and other parts.
(4)
Mount the fan.
Refer to Maintenance: 7.2 Fan.
(5)
Tighten the DMB
mounting screw (×14).
(6)
RC700:
Connect the five connectors to the DMB.
RC700
-A: Connect the twelve connectors to the DMB.
(7)
Mount the fixing plate of the DMB
-OPTION
board.
