G

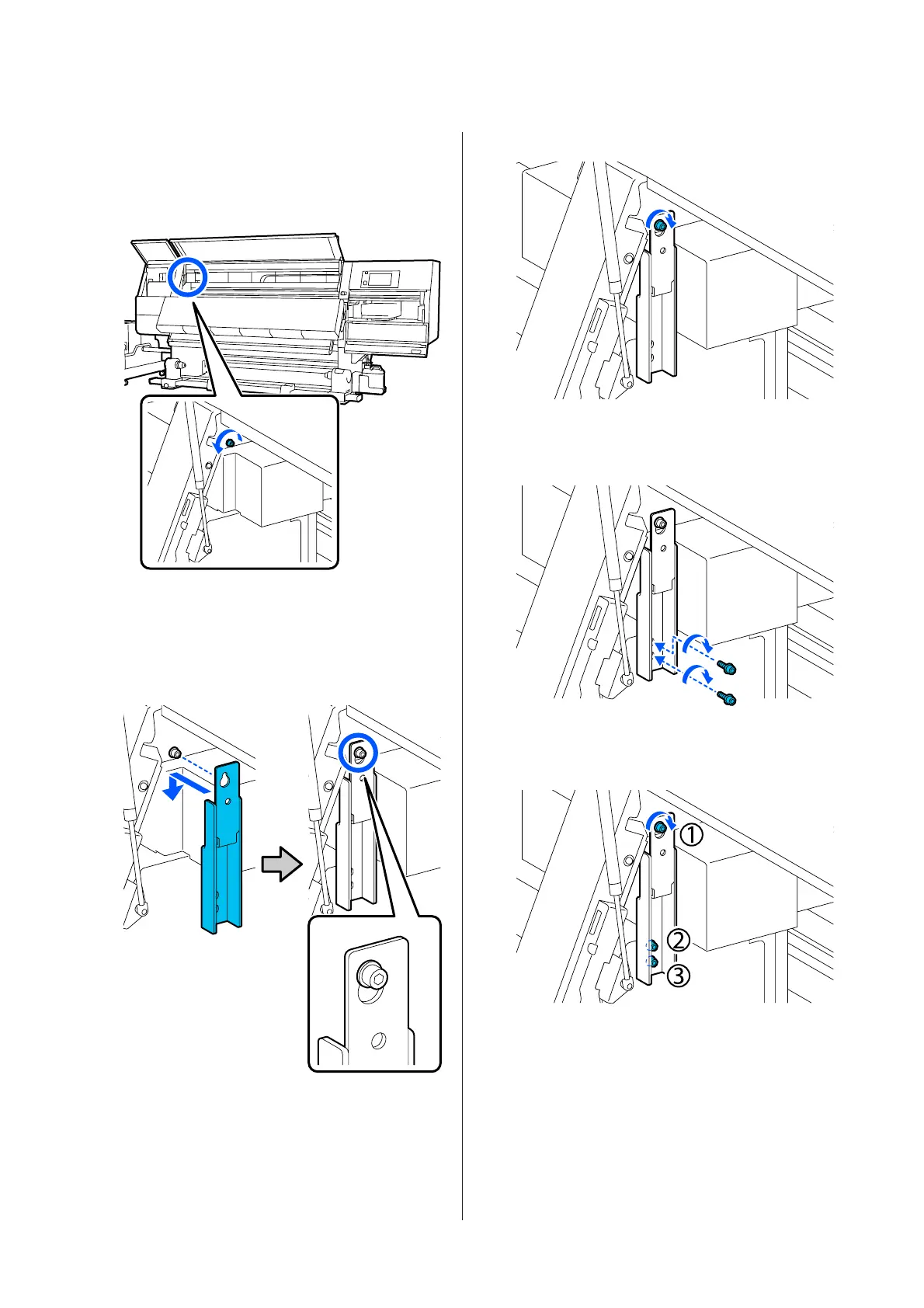

Loosen the screw shown in the illustration inside
the front cover about halfway.
If a screw is difficult to loosen by hand, use a hex
wrench.
H
Hang anchor A on the screw as shown in the
illustration.
Put the screw through the hole in the anchor to
hook it. When doing this, confirm that the screw
is hooked into the upper part of the hole.
I
Lightly tighten the screw.
J
Insert the screws removed in Step 5 into the 2
holes in the bottom part of the anchor, and lightly
tighten them.
K
Use the hex wrench to securely tighten the screws
in the order shown in the illustration.
SC-F10000 Series User's Guide
Appendix
181
