Epson SC-F10000 Series User Manual

C

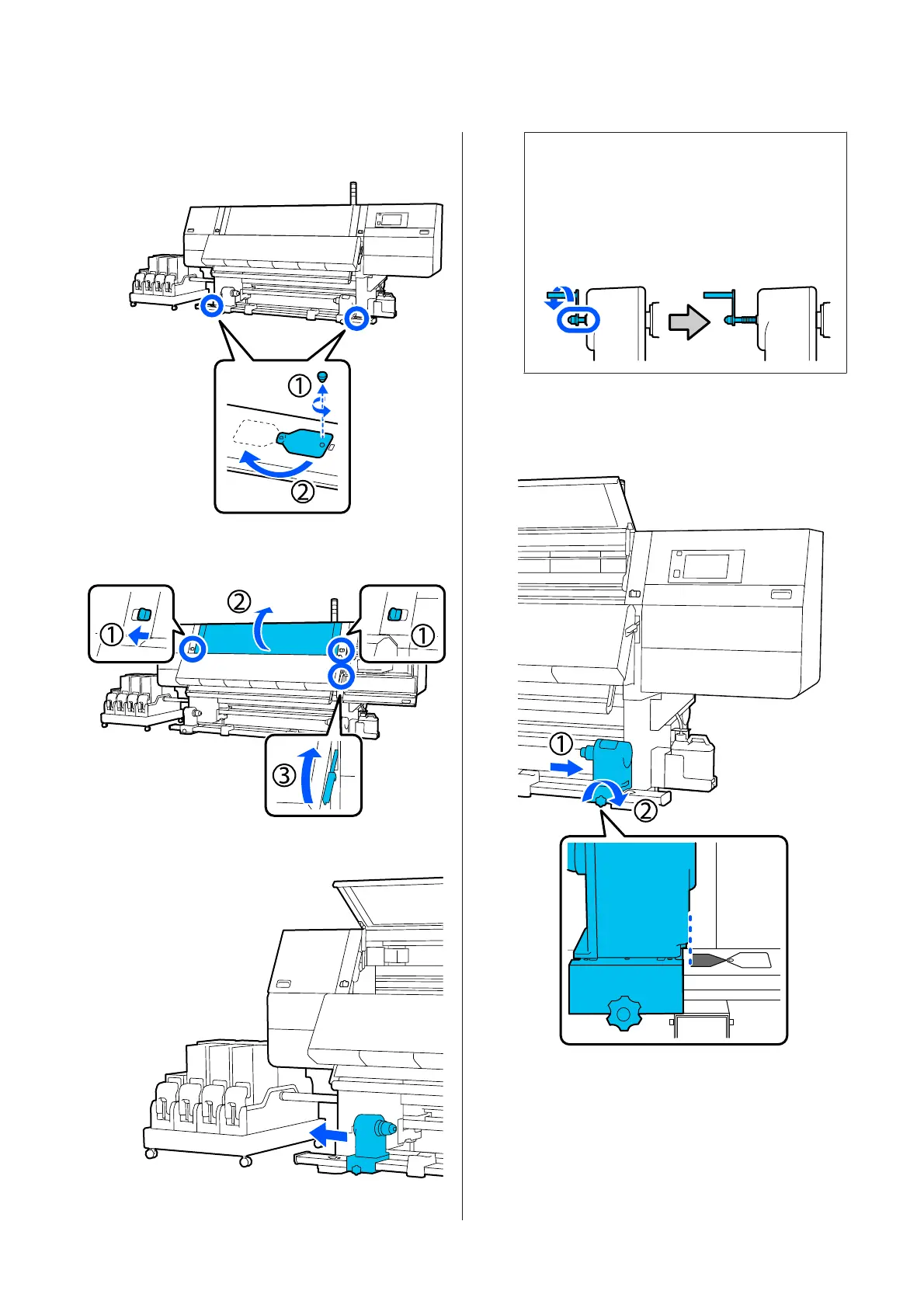

Remove the screws in the illustration below, and
then turn the cover to open it.
D
Open the front cover and raise the media loading
lever.
E
Move the left-side media holder to the outer side.
c
Important:
If the left-side media holder handle's shaft is
not visible, rotate the handle as shown in the
illustration until it stops. The roll core cannot
be properly loaded if the handle's shaft is not
visible.
F
Align the right-side media holder with the
position of the dotted line, and then tighten the
locking screw.
SC-F10000 Series User's Guide
Appendix
192
