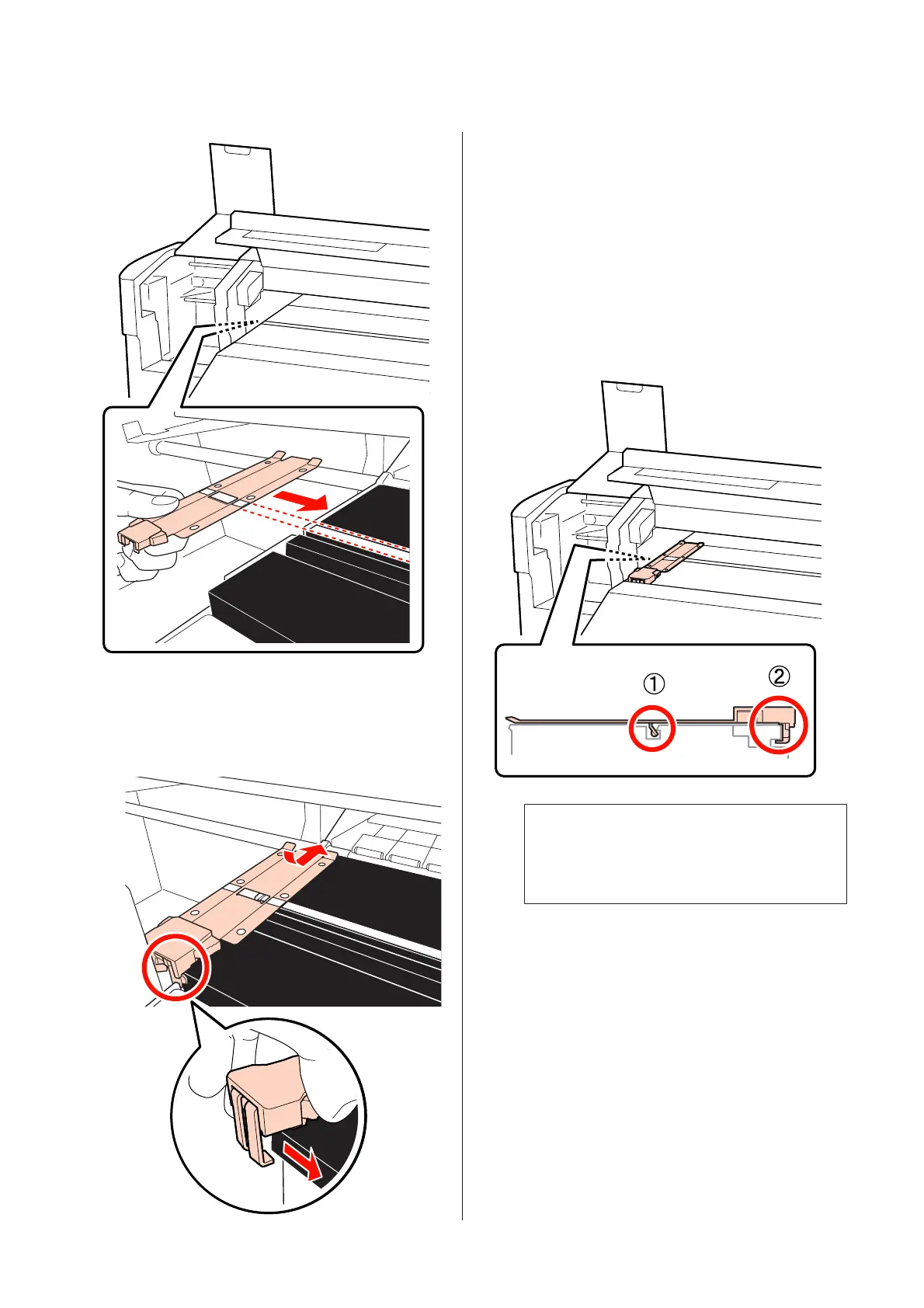

(2) While pressing the tip of the metallic plate
against the platen, attach the hooked sections
to the front corner of the platen.
E
Check that two hooked sections at the rear of the
media holding plate are securely applied as
shown below and that they are attached with no
gap between the plate and platen.
(1) Latch at the rear of square hole: Groove in front
of white line
(2) Latch at the rear of tab: Front corner of the
platen
c
Important:
If both hooked sections are not positioned
correctly, return to Step 3 to attach them
again. Otherwise, the head may be damaged.
EPSON SC-S70600 series/SC-S50600 series/SC-S30600 series User's Guide
Maintenance
125
