Before starting operations, be sure to read the following:
U “Notes when using the auto take-up reel unit” on
page 67
c

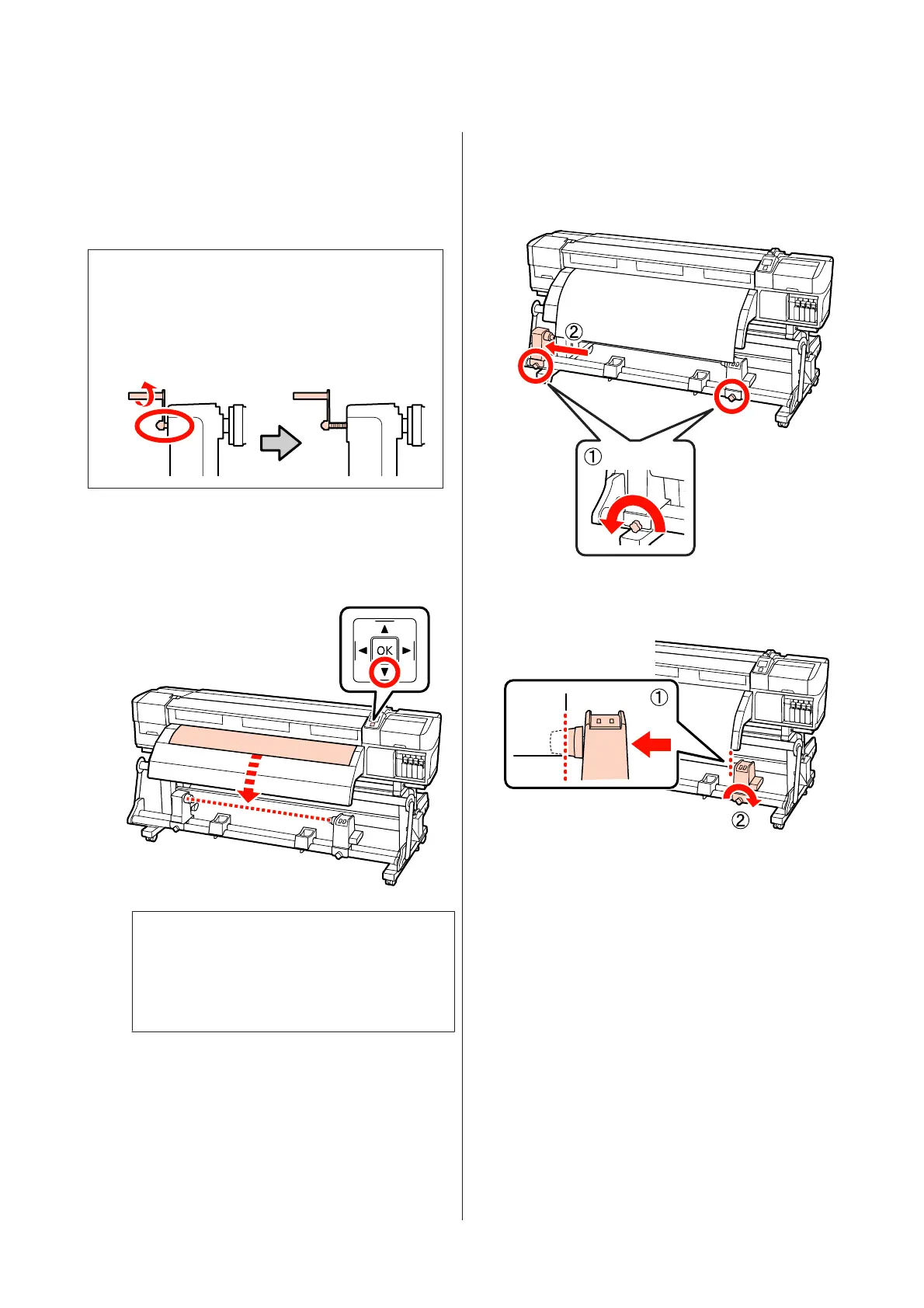

Important:
When using the optional heavy roll media system
and before starting this procedure, check that the
handle shaft of the unit on the left is visible. If the
shaft is not visible, turn the handle in the direction
shown below until it does not turn any more.
A
After confirming that the media is loaded
correctly, keep the d button pressed until the
leading edge of the media reaches the roll core
holder.
c
Important:
Always press the d button to feed the media as
far as the roll core holder. If the media is
pulled by hand, the media may twist during
take-up.
B
Loosen the roll core holder fixing screws at both
sides and adjust the left roll core holder.
Center the roll supports between the roll holders.
C
Align the right roll core holder with the right
edge of the media and tighten the fixing screw.
EPSON SC-S70600 series/SC-S50600 series/SC-S30600 series User's Guide
Basic Operations
68
