EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 93

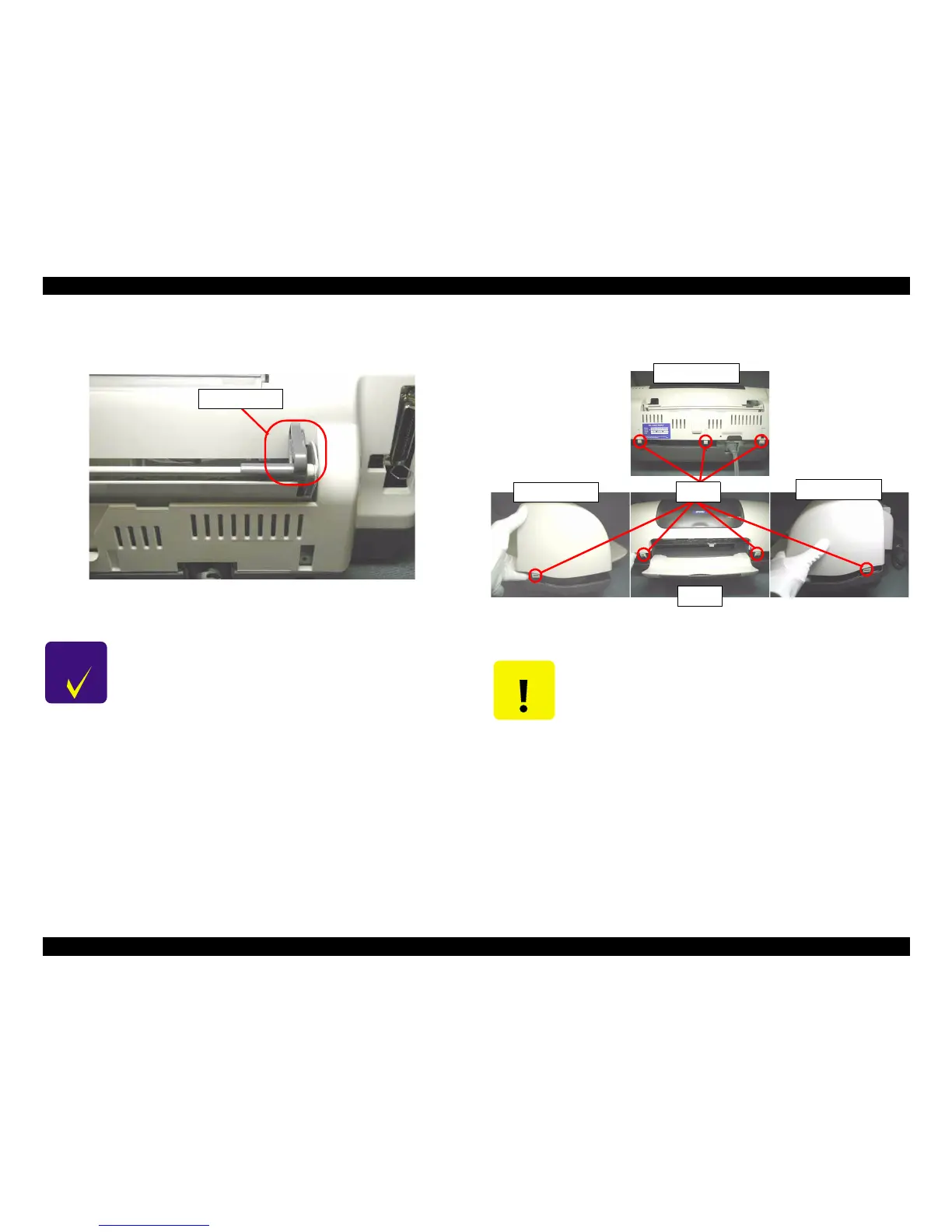

4.3.1 Upper housing removal
1. Move the Edge guide on the ASF unit to the rightmost position.
Figure 4-4. Edge guide setting position for the Lower housing removal
2. Release total seven hooks of the Upper housing by using the precision screwdriver
(-).
Figure 4-5. Hooks position of the Upper housing
CHECK
PO INT

Make sure that the Edge guide is in the cutout portion of the
Upper housing.
Edge guide
CAUTION

Do not damage hooks by the precision screwdriver (-) in
removing the Upper housing.

Do not tilt the printer too much when the Upper housing is
removed by the precision screwdriver (-). This is because ink
may flow if the cap is not covered by the Printhead. (CR is out of
the home position)
Backside
Front
Hooks
left side
right side
