EPSON Stylus C50/C60/C61/C62 Revision C

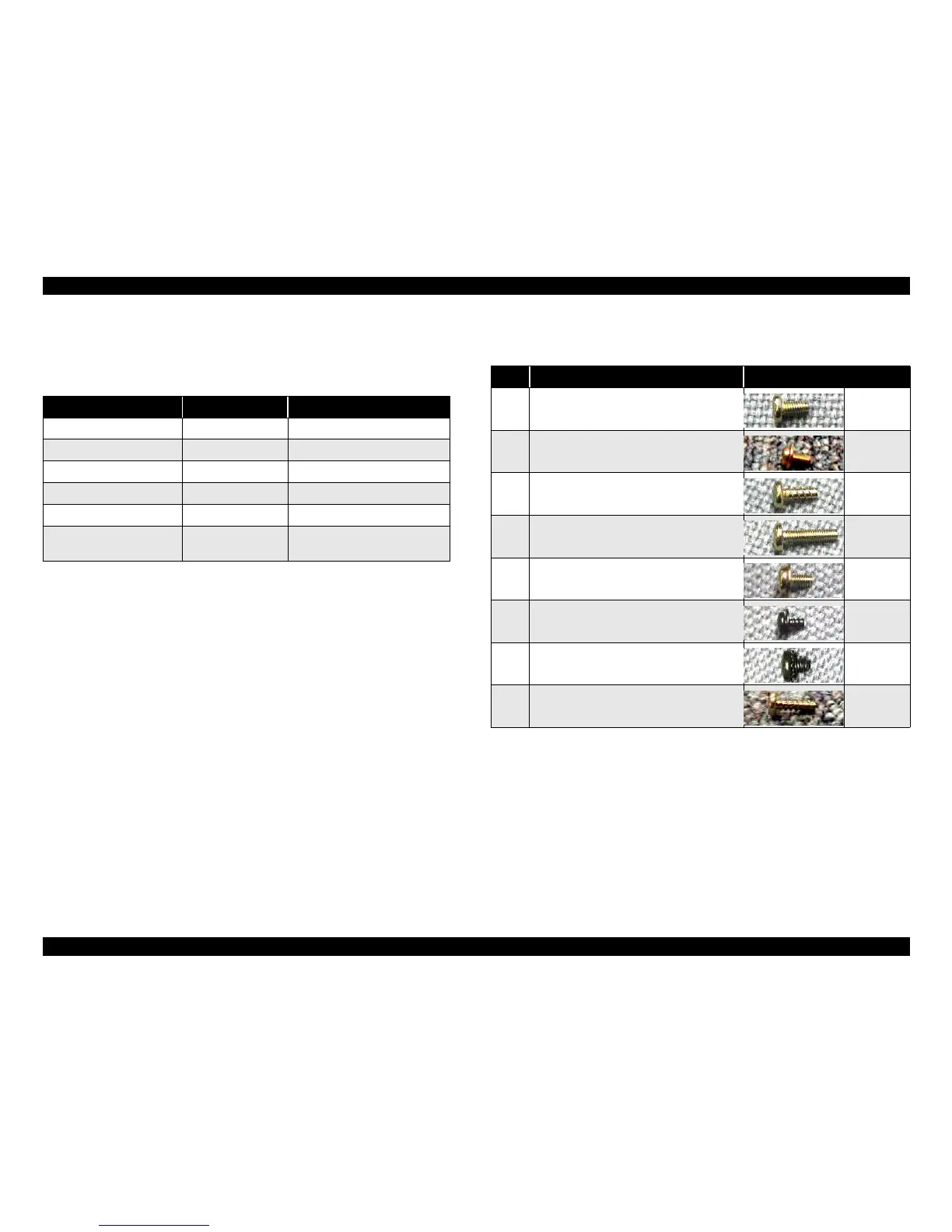

Disassembly and Assembly Overview 88
4.1.2 Tools
Use only specified tools to avoid damaging of the printer.
4.1.3
Screws
* : This screw is for securing the Printhead. However, this is used only for the
Stylus C60/C61/C62.
Table 4-1. Tools
Name Supplier Parts No.
Phillips Screw Driver (No.1) EPSON B743800100
Phillips Screw Driver (No.2) EPSON B743800200
Nipper EPSON B740500100
Tweezers EPSON B741000100
POM Puller EPSON 2035659 (#F749)
Hexagon Box Driver
(Opposite side : 5.5 mm)
EPSON B741700100
Table 4-2. Screws
No Name and specification Outward form pcs
1 C.B.S. SCREW, 3 x 6, F/Zn
11
2 C.C.S-TITE SCREW, 3 x 6, F/Zn
1
3 C.B.P-TITE SCREW, 3 x 8, F/Zn
3
4 C.B.S. SCREW, 3 x 14, F/Zn
2
5 C.B.S-TITE (P4), 3 x 6, F/Zn
1
6 +BIND B-TITE SEMS W2, 2.5 X 5, F/Zb
1 *
7 C.B.(O). SCREW, 4 x 5, F/Zg
1
8 C.B.P-TITE SCREW, 3 x 10, F/Zn
1
