EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 113
4.3.9 Waste drain ink pad
(under the ASF unit)
removal
1. Remove the Upper housing from the printer. (Refer to Section 4.3.1.)
2. Remove the ASF unit from the printer (Refer to Section 4.3.5)

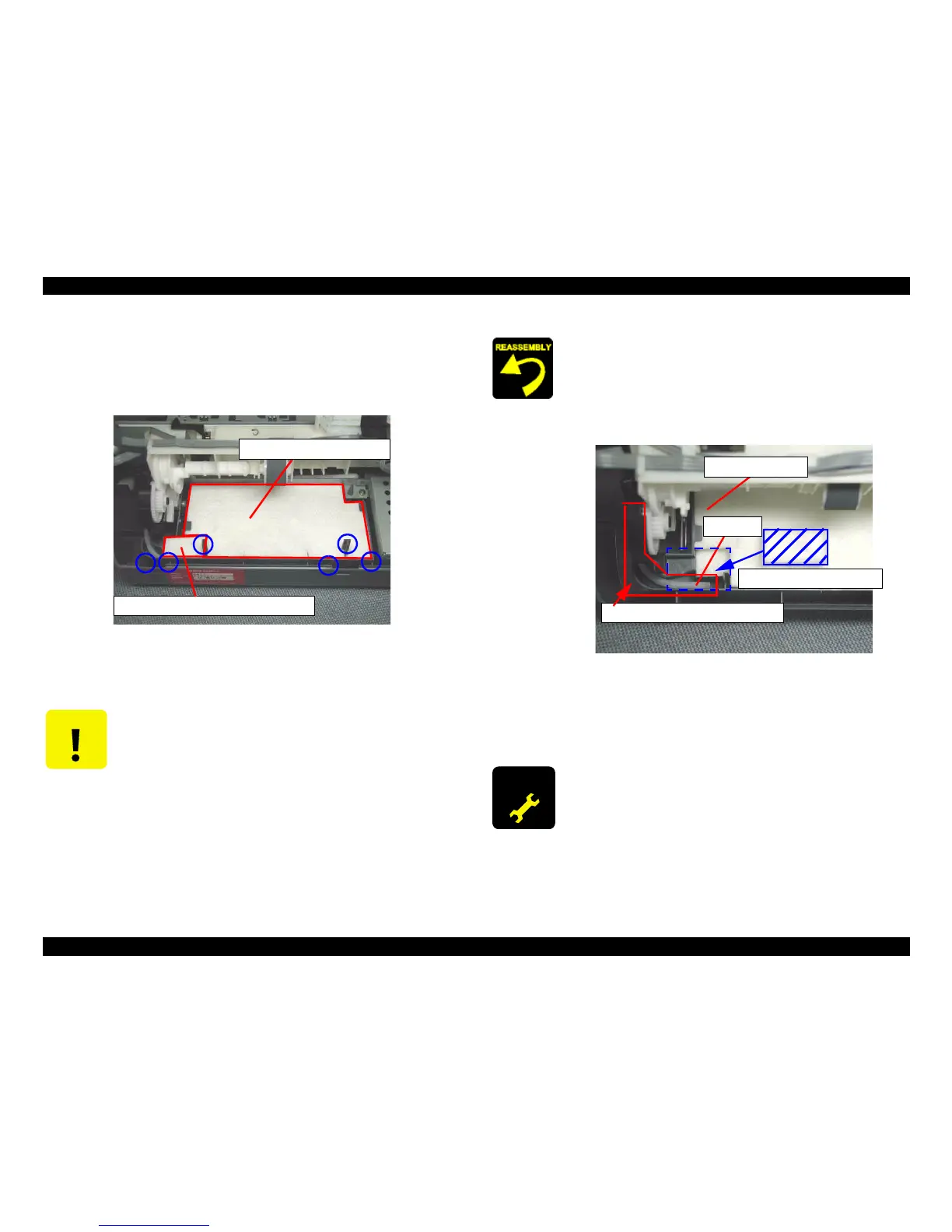

Figure 4-47. Waste drain ink pad setting position
3. Remove the Waste drain ink pad from the Lower housing.
CAUTION
When disassembling/assembling the Waste drain ink pad, be
careful not to hurt your hand with the protrusion of the Lower
housing. (Refer to Figure 4-47: Blue circle)
Waste drain ink pad (total 3 sheets)
Waste drain ink pad for tube stopper (1 sheet)
When assembling the Waste drain ink pad to the Lower
housing,
Make sure to set the tip of the ink tube in the correct position
of the Lower housing. Otherwise, it will cause ink leakage.
Then, put the Waste drain ink pad for bube stopper on the
tip of the ink tube.
Figure 4-48. Ink tube setting position
Avoid contacting the gears in the pump unit.
Make sure to set the Waste drain ink pad in the correct
position.
ADJUSTM ENT
REQUIRED
When replacing the Main board with new one, perform the
following service items.
1) Waste drain ink counter reset (Protection counter A)
Waste ink pad
Ink tube
Waste ink pad for tube stopper
correct ink tube replacement position
