EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 98
8. Pull the left end of the CR guide shaft upward, and slide the CR guide shaft to the
right side while holding the CR unit by hand.

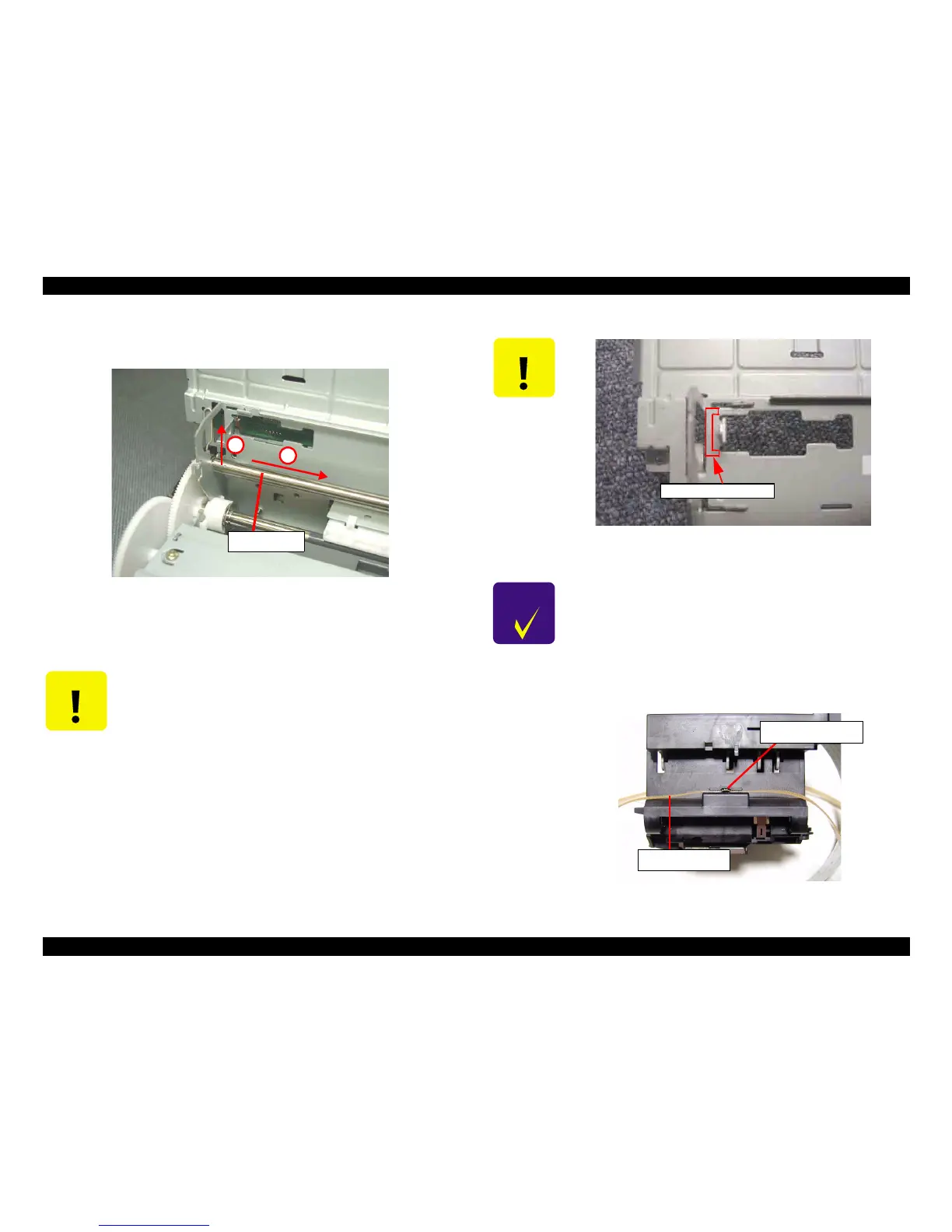

Figure 4-14. CR unit removal
9. Remove the CR guide shaft along with the CR unit by sliding it to the left or right.
CAUTION

Remove the CR guide shaft while holding the CR unit by hand. If
you remove the CR guide shaft without holding the CR unit, the
nozzle surface of the Printhead may come in contact with the
Paper guide front, which causes the dot missing problem.

Do not remove the Spacer holder pulley driven from the Main
frame. (This part has been pasted only for the products in IEI as
the countermeasure of the quality problem on the Stylus C60.
(Refer to Figure 4-15)

Do not use the removed the Pulley driven holder on the Stylus
C60 to other printer.
(The interchangeability has not been kept completely between
the Pulley driven holder depending on the manufacture.)
CR guide shaft
1
2
CAUTION
.
Figure 4-15. Pasting position for the Spacer holder pulley
driven (Stylus C60)
CHECK
PO INT

Unlike the previous printer (Stylus COLOR 680), the oil pad is
not built in the CR unit.

If you remove the Printhead from the CR unit, make sure that
the Head grounding plate is set in the CR unit. (Refer to Figure
4-9)

If the CR unit is disassembled or replaced with new one, make
sure that the CR timing belt is set in the assembling groove
correctly as the following figure.
Figure 4-16. CR timing belt setting position
Spacer holder pulley
Assembling groove
CR timing belt
