EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 109

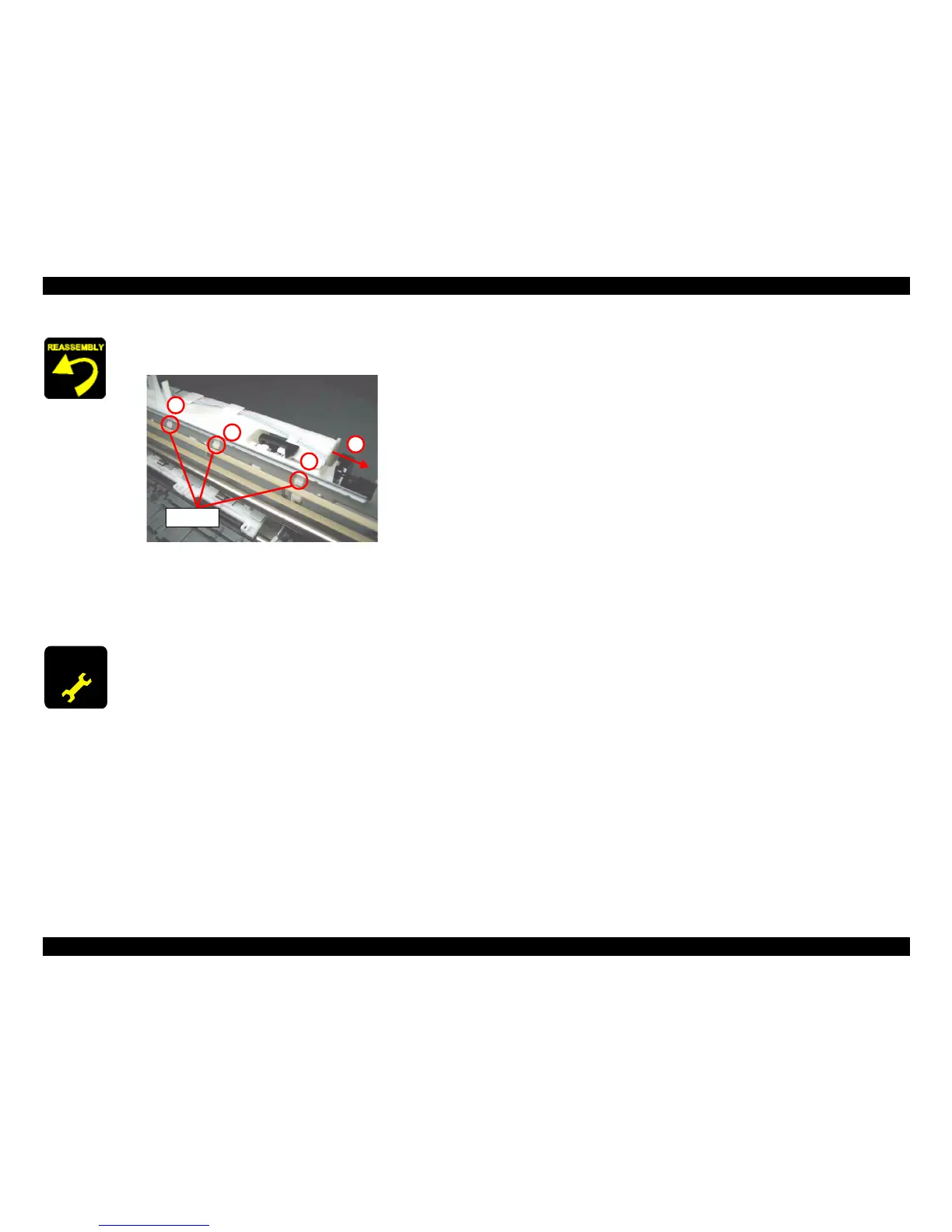

2) Insert three hooks and one dowel of the Holder shaft unit in
the order indicated in the following figure.
Figure 4-40. LD roller shaft holder assembling
procedure (2)
When installing the dowel of the LD roller shaft holder to the
Pump unit, move the Pump unit to the right side slightly.
ADJUSTM ENT
REQUIRED

When removing or replacing the CR unit with new one, the
following adjustment must be performed in the order below.
1) Top margin adjustment
2) 1st dot position adjustment
Hooks
3
1
2
4
