Epson Stylus C67 Service Manual

EPSON Stylus C67/C68/D68 Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedures 44
4.3.1.2 Stacker Assy.
1) Remove the Housing, Upper. (p43)
2) Open the Stacker assy.
3) Push the shaft located on the left side of the Stacker Assy. with a flathead
screwdriver or a similar tool, release the shaft from the slot of the Housing,
Lower, and remove the Stacker Assy.

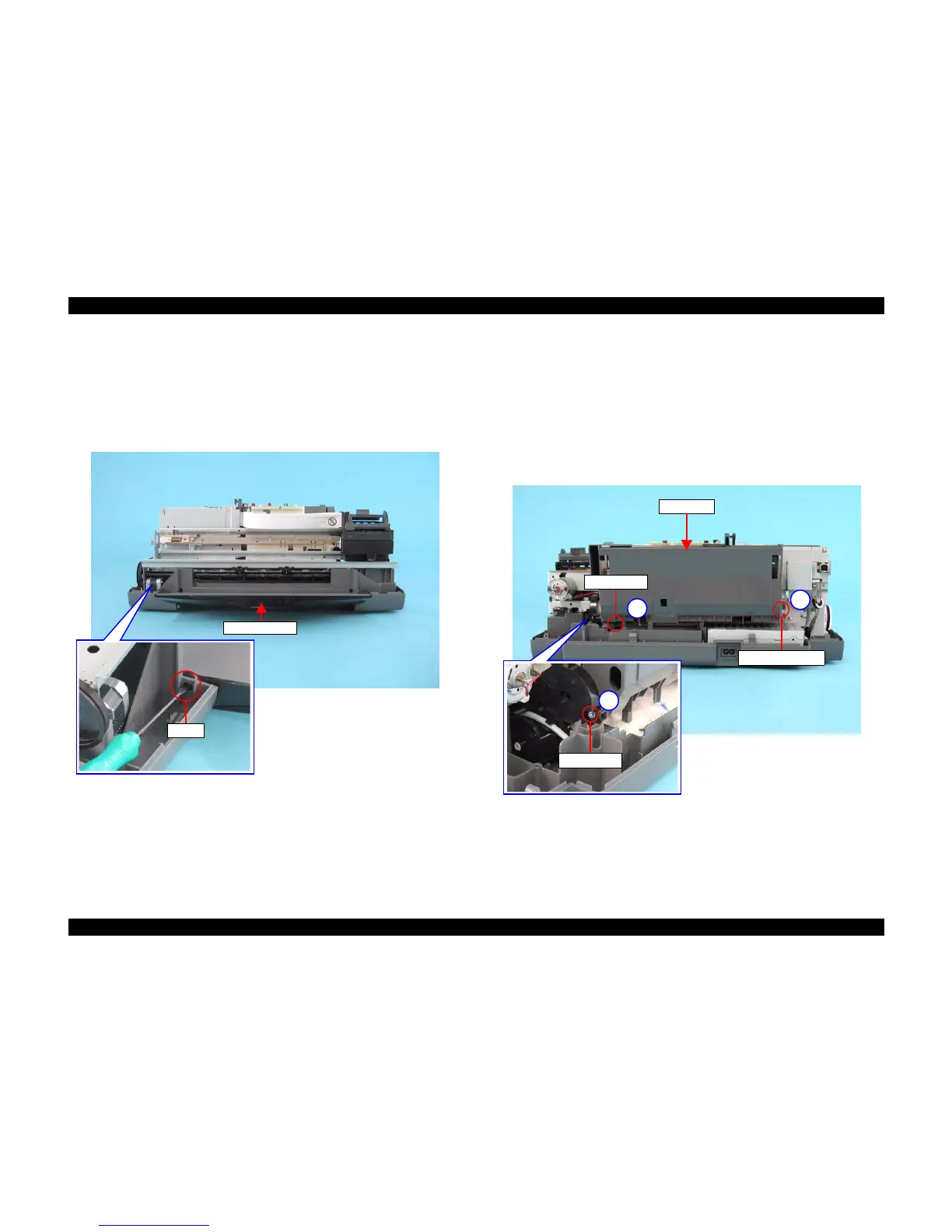

Figure 4-4. Removing Stacker Assy.
4.3.1.3 ASF Unit
1) Remove the Housing, Upper. (p43)
2) Open the Stacker Assy. (See 4.3.1.2 Removing Stacker Assy. Step 2)
3) Remove the three screws that secure the ASF Unit to the main unit, and
remove the ASF unit.
• C.B.S. 3 x 6: 1
• C.B.S. (P4) 3 x 6: 1
• C.B.P. 3 x 8: 1
Figure 4-5. Removing ASF Unit
Shaft
Stacker Assy.
C.B.P. 3 x 8
3
C.B.S. 3 x 6
C.B.S.(P4) 3 x 6
ASF Unit
1
2
