DISASSEMBLY/ASSEMBLY Disassembly Procedures 67
4.3.3.11 Printhead Assy.
1) Remove the CR Unit. (p64)
2) Release the tab from the notch of the IC Holder, and remove the printhead
cover.
3) Turn the Printhead Assy. toward the direction of the arrow, and remove the
Printhead Assy.

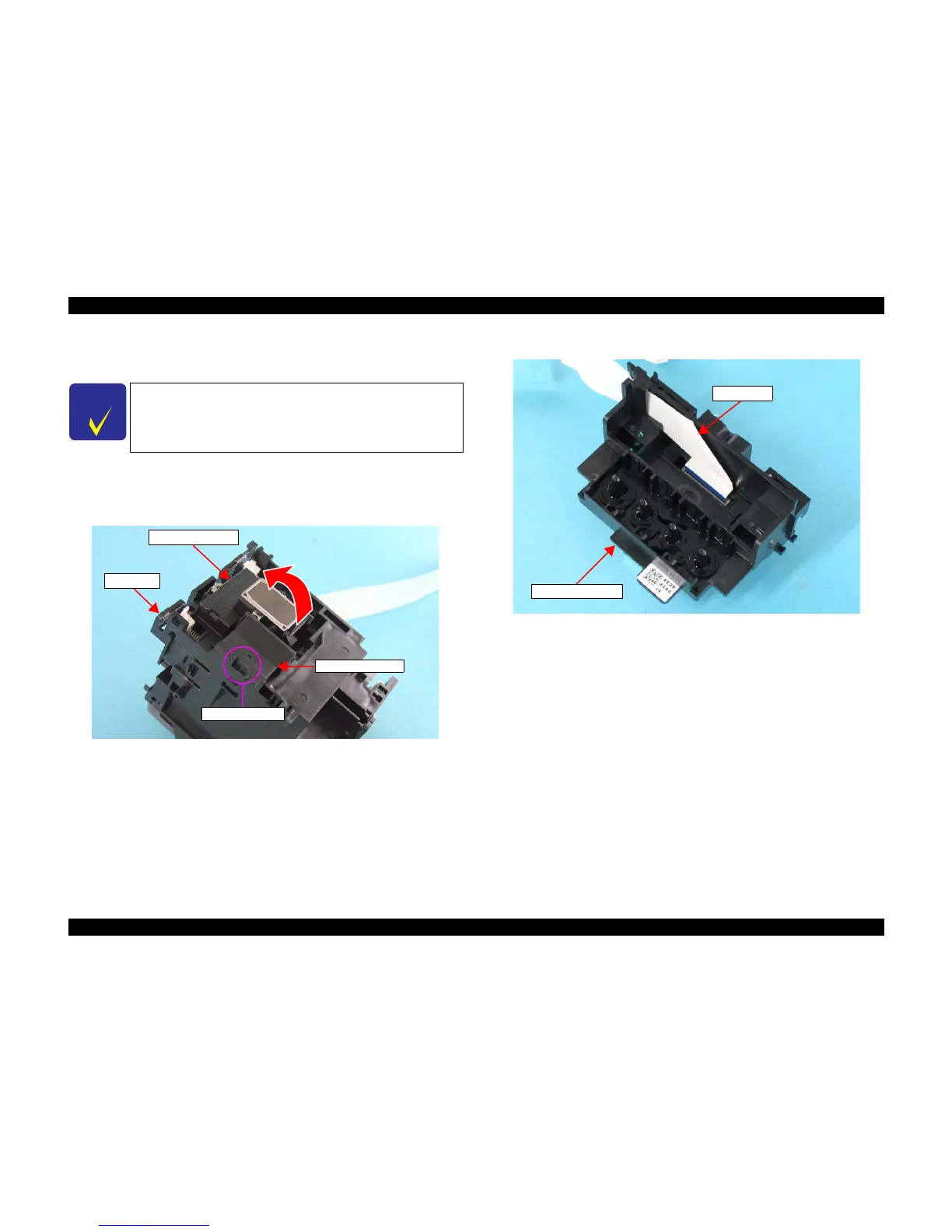

Figure 4-57. Removing Printhead Assy. (1)
4) Remove the Head FFC from the Printhead Assy.
Figure 4-58. Removing Printhead Assy. (2)
C H E C K
P O I N T
Before starting the following work, make sure that the two tabs
shown in Figure 4-53 are already released.
Printhead Assy.
Tab and Notch
IC Holder
Printhead Cover
Head FFC
Printhead Assy.
